5
9926813 R04 - 2013-2016 RZR 570 Service Manual
© Copyright Polaris Industries Inc.
5.29

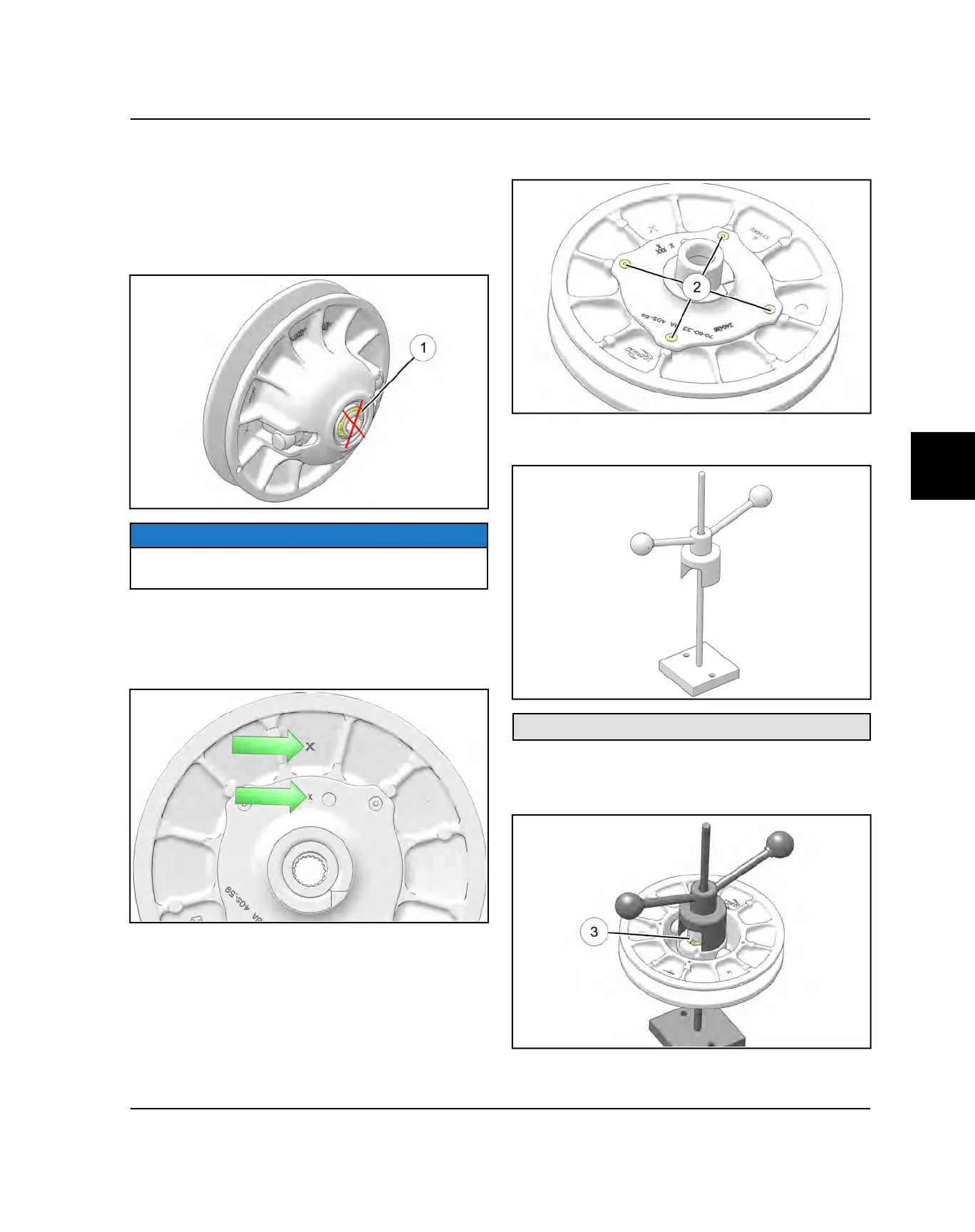

DRIVEN CLUTCH SERVICE (EBS)
DRIVEN CLUTCH DISASSEMBLY
1. Remove driven clutch from the transmission input
shaft. Do NOT attempt disassembly of the driven
clutch from the outside snap ring
q
. The driven
clutch must be disassembled from the helix side.
NOTE
If driven clutch is difficult to remove, use 2871056
Driven clutch puller to remove driven clutch.
2. It is important to mark the position of the shaft, cam
cover and sheave with a grease marker or tape
before disassembly or use the X’s on the components
for reference. This will aid in assembly and maintains
clutch balance.
3. Remove the four screws
w
that secure the cam
(helix) assembly using a T25 Torx driver.
4. Place the driven clutch into the Universal Clutch
Compressor.
Universal Clutch Compressor: PU-50518-A
5. Press down on the top of the spider assembly,
pushing the spider onto the shaft. Remove snap ring
e
and slowly release the assembly.
PVT SYSTEM
