7
9926813 R04 - 2013-2016 RZR 570 Service Manual
© Copyright Polaris Industries Inc.
7.35

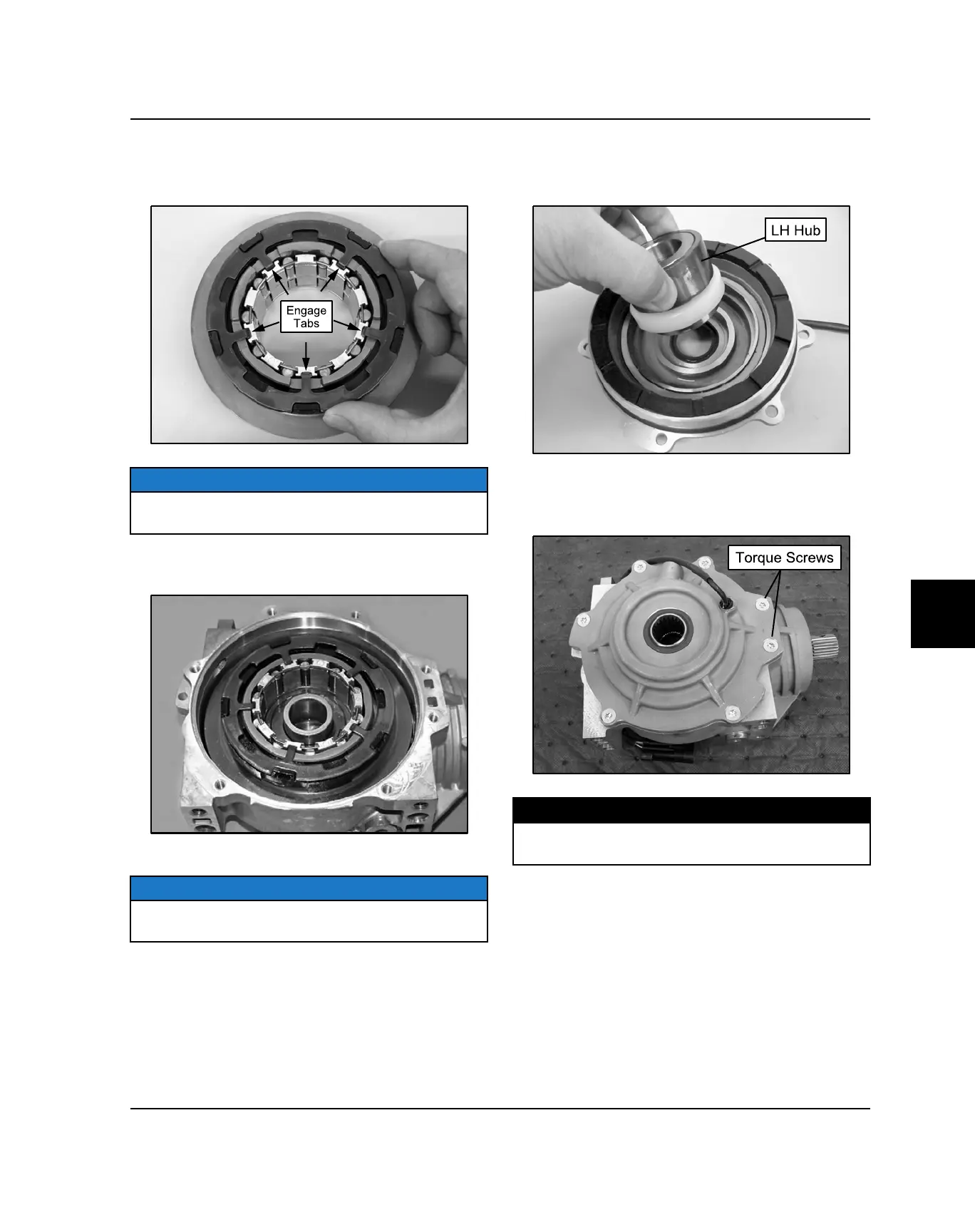

9. Be sure the armature plate tabs are fully engaged
into the roll cage assembly and are resting on the
cut-grooves of the ring gear.
NOTE
Verify armature plate tabs are in the slots on the roll
cage and are resting in the ring gear grooves.
10. Carefully install the ring gear and roll cage assembly
into the gearcase housing.
11. Install a new O-ring on the cover plate assembly.
NOTE
Be sure the square O-ring is placed flat on the cover
surface. If the O-ring is twisted fluid leakage may occur.
12. Carefully install the LH output hub assembly into the
cover plate. Take care not to damage the new cover
plate seal while installing the output hub.
13. Install the output cover assembly onto the gearcase
housing. Install the seven cover plate screws and
torque to specification.
TORQUE
Cover Plate Screws:
100 in-lb (12 Nm)
FINAL DRIVE
