Quectel Smart EVB G2 User Manual

Smart LTE Module Series
Smart EVB G2 User Guide
Smart_EVB_G2_User_Guide Confidential / Released 25 / 59
Table 5: Description of Power Supply Switches
Smart TE-A Interface 4.2.
The Smart TE-A interface supports SG30, SG36 and SC60 modules, and includes two BTB connectors
named J0101 and J0102, respectively. Smart TE-A is connected to the EVB via the two connectors. With
Smart modules, customers can easily design wireless communication products.
The following two figures show the two B2B connectors and the sketch map of the Smart TE-A.

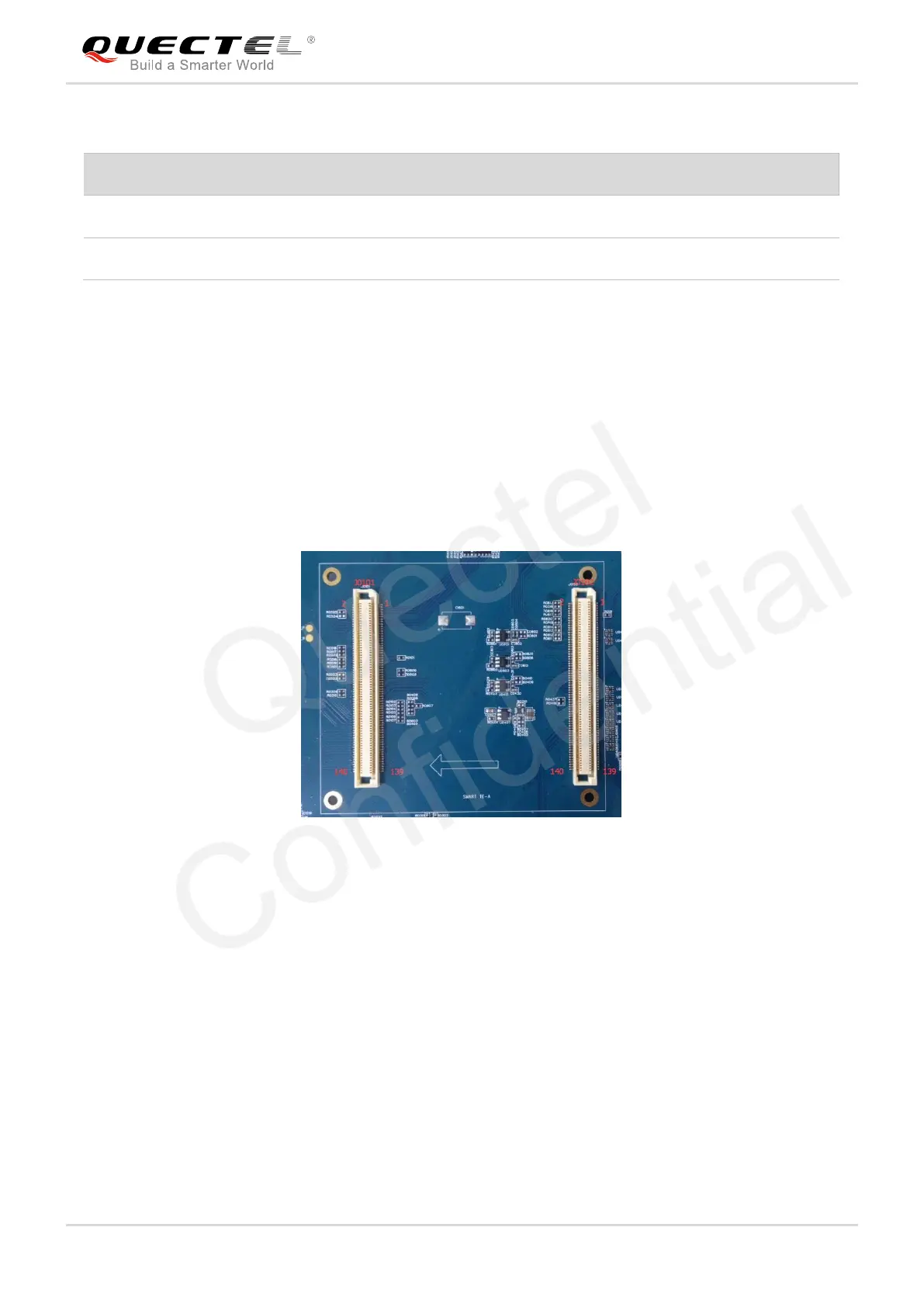

Figure 15: B2B Connectors
Switch No.
Description
S0201
Switch used to select DC power supply or battery power supply
S0202
Switch used to power on/off the module
Quectel
Confidential
