Quectel Smart EVB G2 User Manual

Smart LTE Module Series
Smart EVB G2 User Guide
Smart_EVB_G2_User_Guide Confidential / Released 36 / 59
Depth
Camera
Front
Camera
Rear
Camera

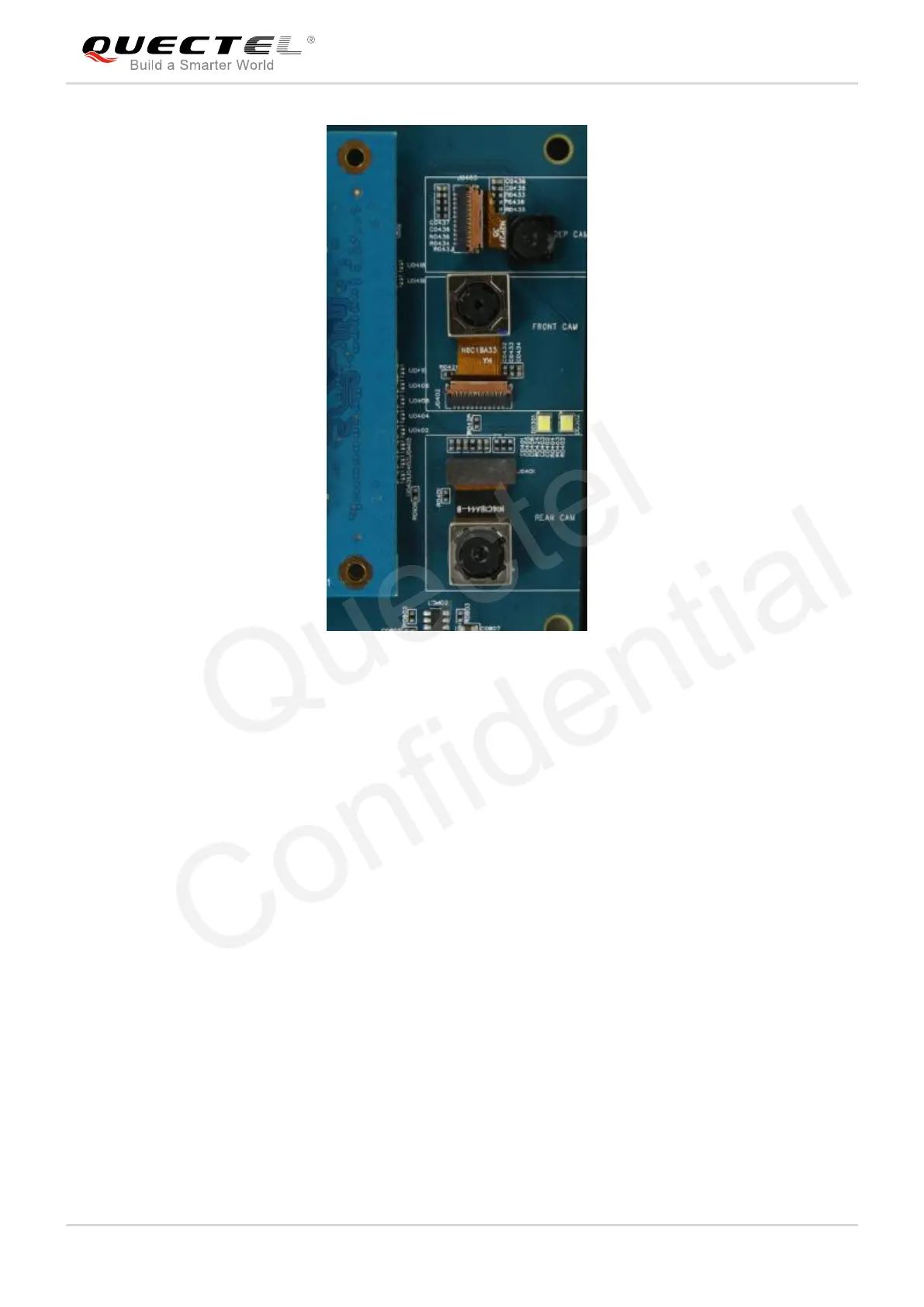

Figure 23: Camera Interfaces with Cameras Assembled
USB Interface 4.6.
The Smart EVB G2 provides one integrated Universal Serial Bus (USB) interface which complies with the
USB 3.0/2.0 specifications and supports super speed (5Gbps) on USB 3.0, high speed (480 Mbps) on
USB 2.0 and full speed (12 Mbps) modes. The USB interface supports USB OTG function, and is used for
AT command communication, data transmission, software debugging and firmware upgrade.
The following figure shows a reference circuit design for USB type-C interface.
Quectel
Confidential

Quectel Smart EVB G2 Specifications

General

Brand	Quectel
Model	Smart EVB G2
Category	Motherboard
Language	English
