C8 C1
C9

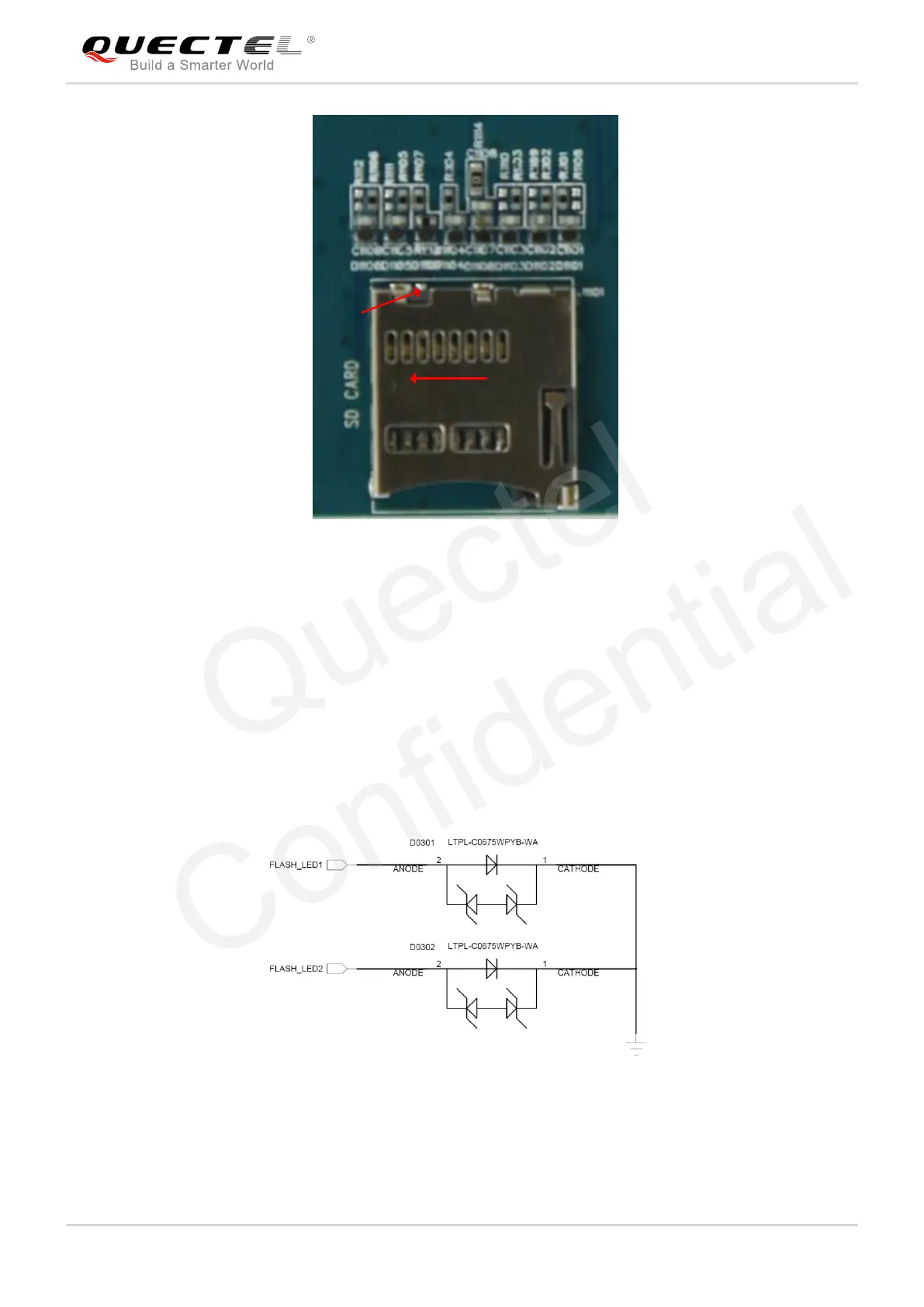

Figure 38: Pin Assignments of SD Card Interface
Flashlights 4.11.
Smart EVB G2 provides two flashlight LEDs D0301 and D0302 for testing the module’s flashlight
interfaces which support flash mode and torch mode. The following figures show a reference circuit
design for flashlights and their locations on Smart EVB G2.
Figure 39: Reference Circuit Design for Flashlight Interfaces
Quectel
Confidential

Quectel Smart EVB G2 Specifications

General

Brand	Quectel
Model	Smart EVB G2
Category	Motherboard
Language	English
