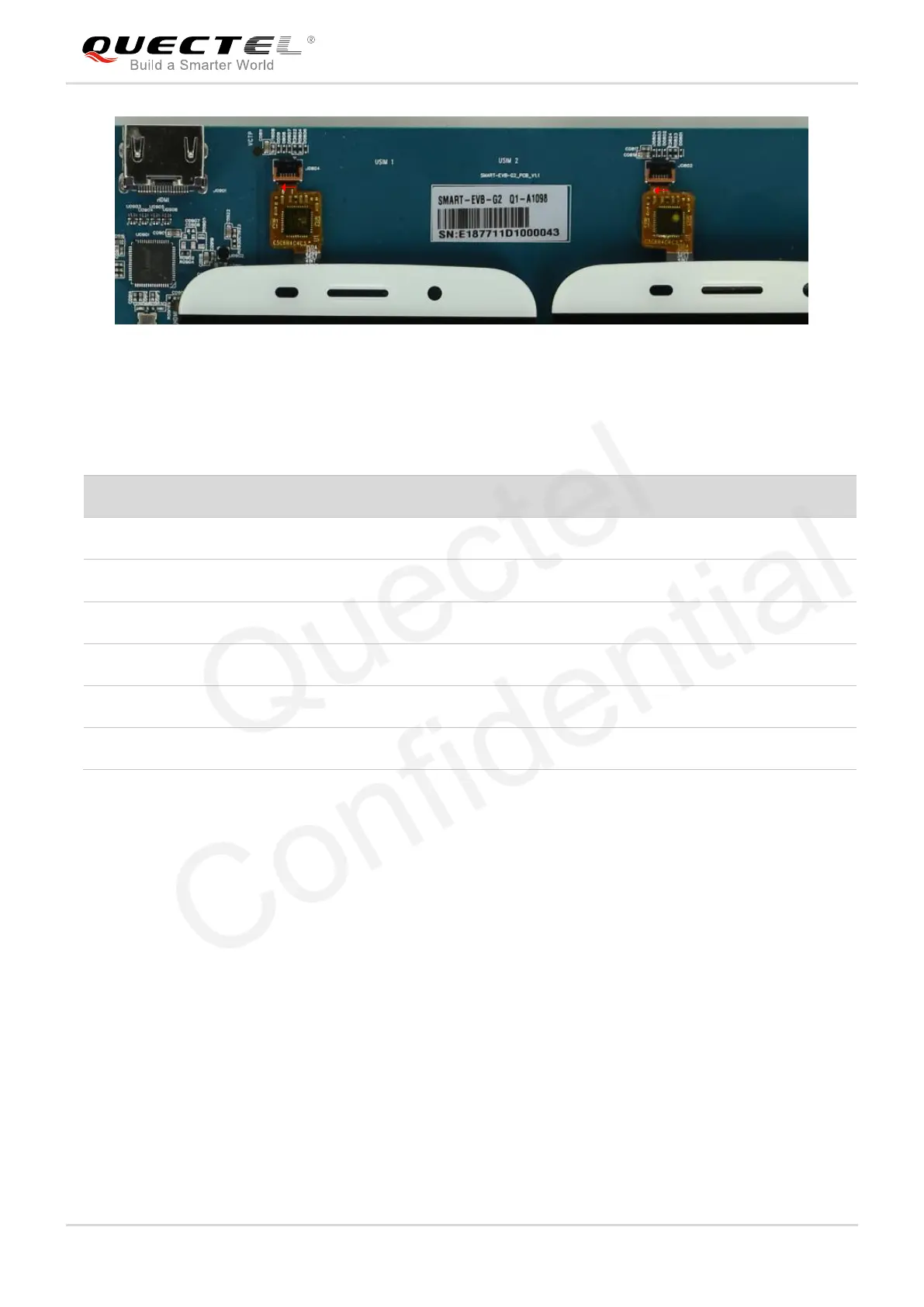

Figure 21: Pin Assignments of Touch Panel Interfaces
Table 7: Pin Definition of Touch Panel Interfaces
Camera Interfaces 4.5.
Smart EVB G2 provides three camera interfaces (4-lane+2-lane+1-lane) for rear camera, front camera
and depth camera. Rear camera uses a 16M pixels digital CMOS sensor with auto-focusing function.
Front camera uses an 8M pixels CMOS sensor with auto-focusing function and depth camera uses a 2M
pixels CMOS sensor. The following figure shows a reference circuit design for camera interfaces.
Pin No.
Pin Name
Description
Comment
1
TP_SDA
I2C data signal of touch panel
2
TP_SCL
I2C clock signal of touch panel
3
TP_RST
Reset signal of touch panel
Active low
4
TP_INT
Interrupt signal of touch panel
5
GND
Ground
6
VDD
2.8V power supply for touch panel VDD power
Quectel
Confidential
