Quectel Smart EVB G2 User Manual

Smart LTE Module Series
Smart EVB G2 User Guide
Smart_EVB_G2_User_Guide Confidential / Released 41 / 59
ESD
ESD
100pF
EAR_P
EAR_N
FB
Samrt-EVB-G2
Earphone
33pF
33pF
J1201

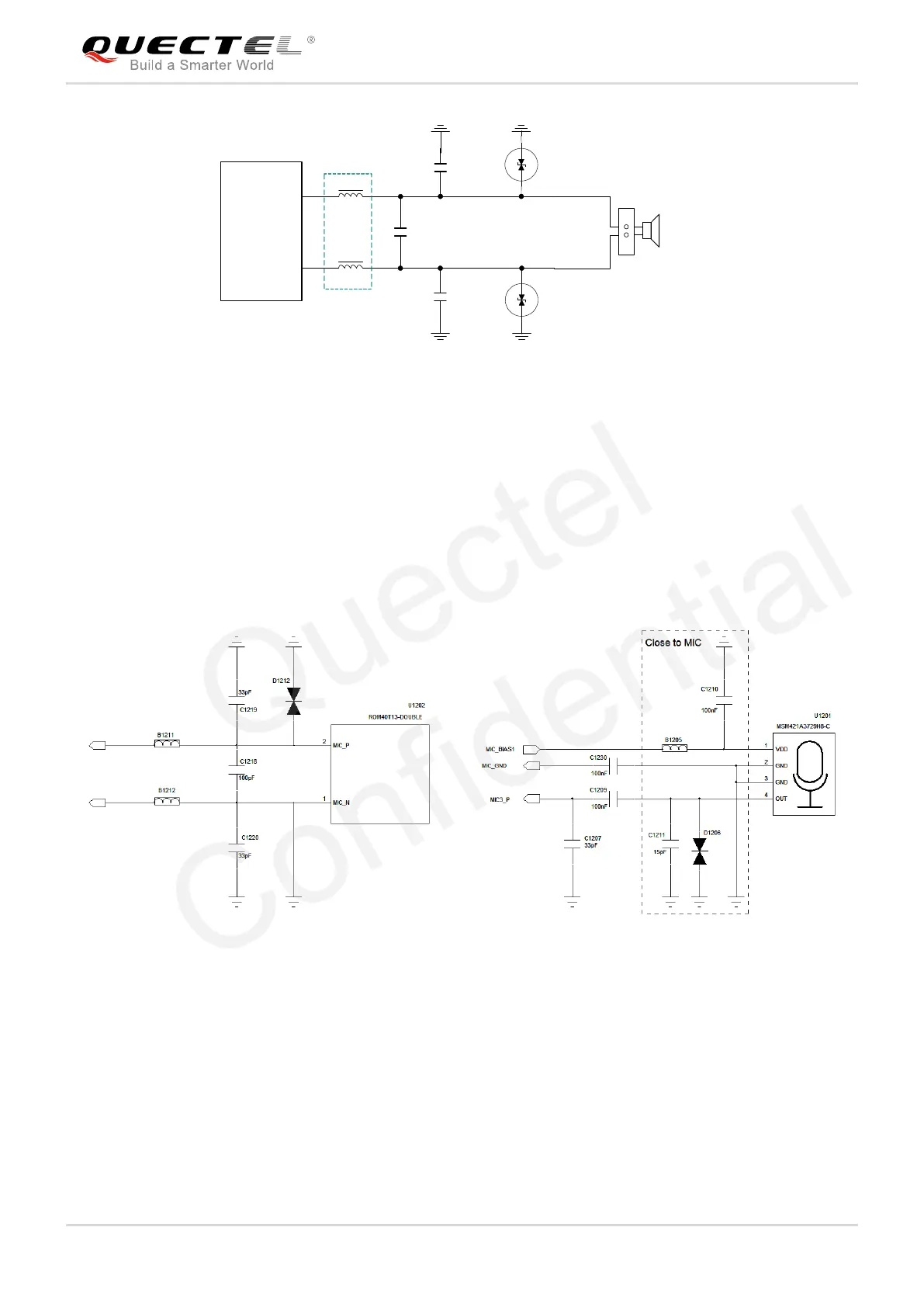

Figure 30: Reference Circuit Design for Earphone Interface
4.7.4. Microphone Interfaces
Smart EVB G2 provides one single-ended and one differential microphone inputs for microphone
interfaces. The single-ended microphone input is for MEMS-Type microphone and the differential
microphone input is for ECM-Type microphone. The following figures show a reference circuit design for
microphone interfaces and the two microphones.
Figure 31: Reference Circuit Design for Microphone Interfaces
Quectel
Confidential

Quectel Smart EVB G2 Specifications

General

Brand	Quectel
Model	Smart EVB G2
Category	Motherboard
Language	English
