Emergency Download Interface 4.13.
Smart EVB G2 provides one emergency download switch USB_BOOT to force the module enter into
download mode. Pull up USB_BOOT pin to 1.8V before powering on the module when the function is
used. The following figures show a reference circuit design for the emergency download interface and its
switch.
LDO5_1P8
S1
Module
USB_BOOT
R1
10K

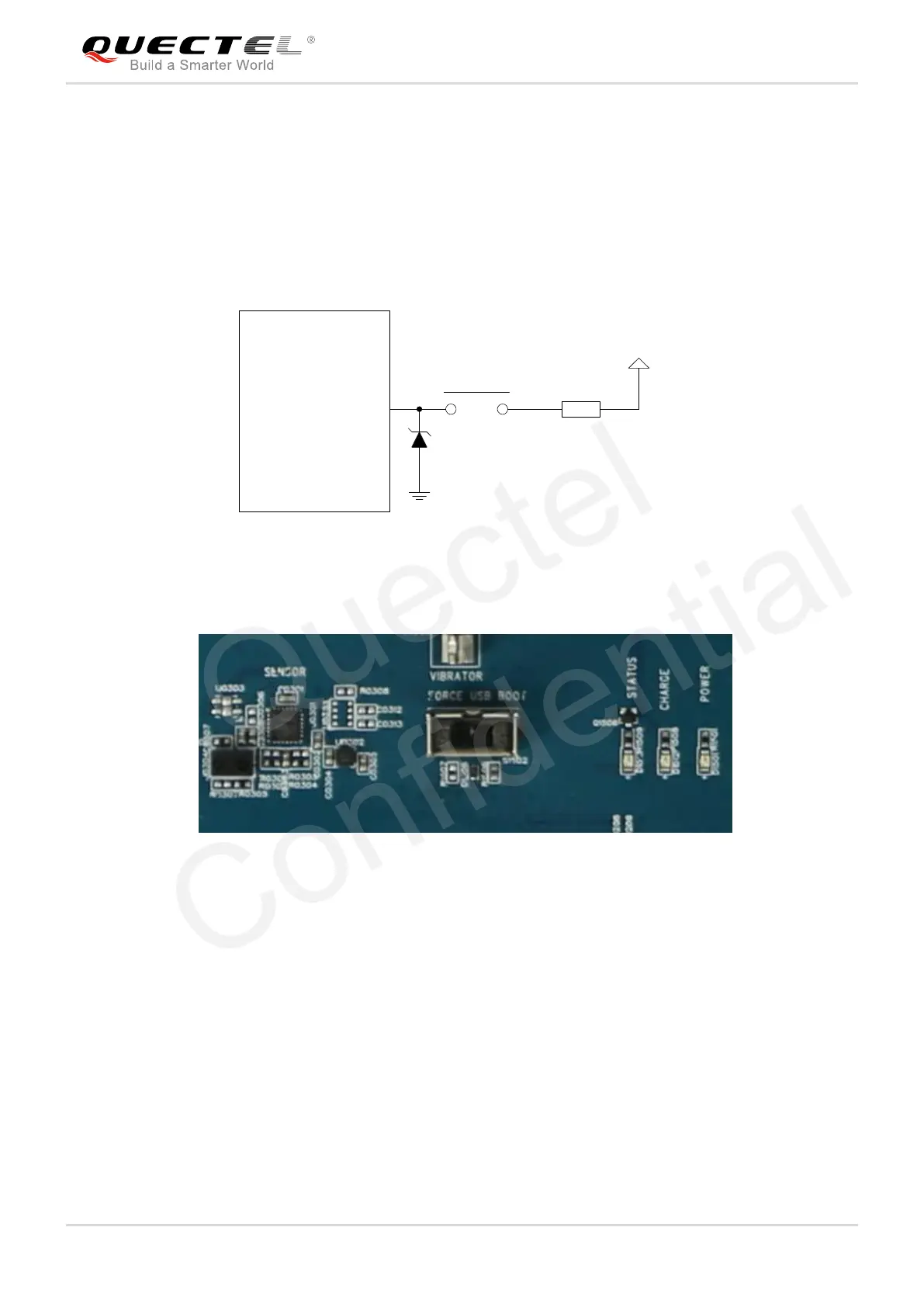

Figure 42: Reference Circuit Design for Emergency Download Interface
ON OFF
Figure 43: Emergency Download Switch
