RC3000E (P100R001) Product Description
4 Cards
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
20
4.3 RC3000E-UP-4E1-BL

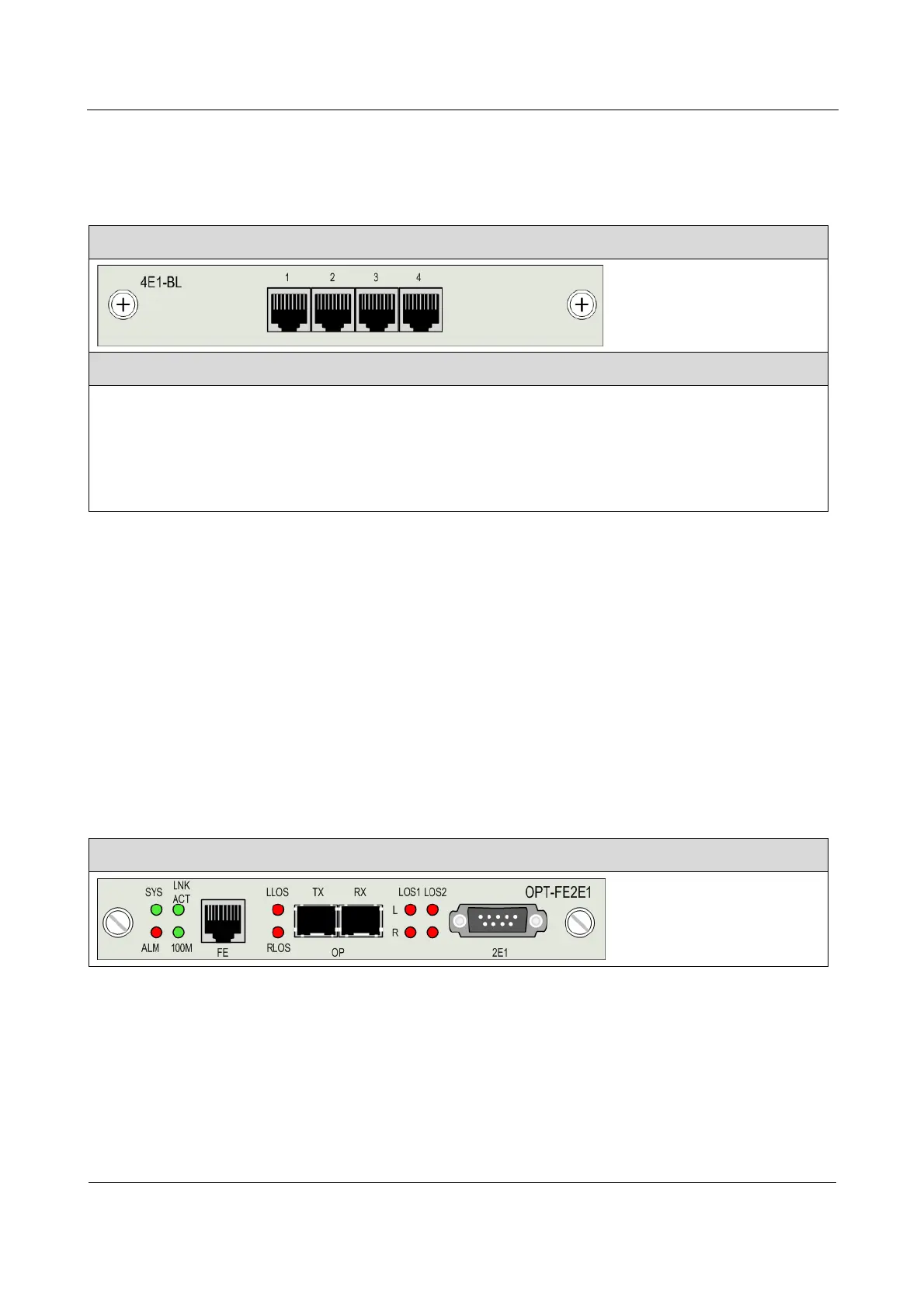

4.3.1 Appearance and functions
Panel
Function
The RC3000E-UP-4E1-BL is an uplink interface card for 4-way balanced E1 on the RC3000E. It can transmit
4 ways of E1 services.

Support channel protection.

The E1 interface supports bypass. When the power is down, the No.1 way is directly connected to the No.2
way and the No.3 way is directly connected to the No.4 way.

The E1 interface adopts the RJ45 connector. Each RJ45 interface can transmit 1-way E1.
4.3.2 Slots
The RC3000E-UP-4E1-BL can be inserted into slot 4.
4.3.3 Technical specifications
Dimensions: 155 mm (Width) × 100.5 mm (Depth) × 25 mm (Height)
4.4 RC3000E-UP-OPT-FE2E1 (B)
4.4.1 Appearance and functions
Panel
