RC3000E (P100R001) Product Description
7 Appendix
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
67
RJ45 PIN 5 and PIN 4 are in twisted pair mode. RJ45 PIN 2 and PIN 1 are in twisted
pair mode.

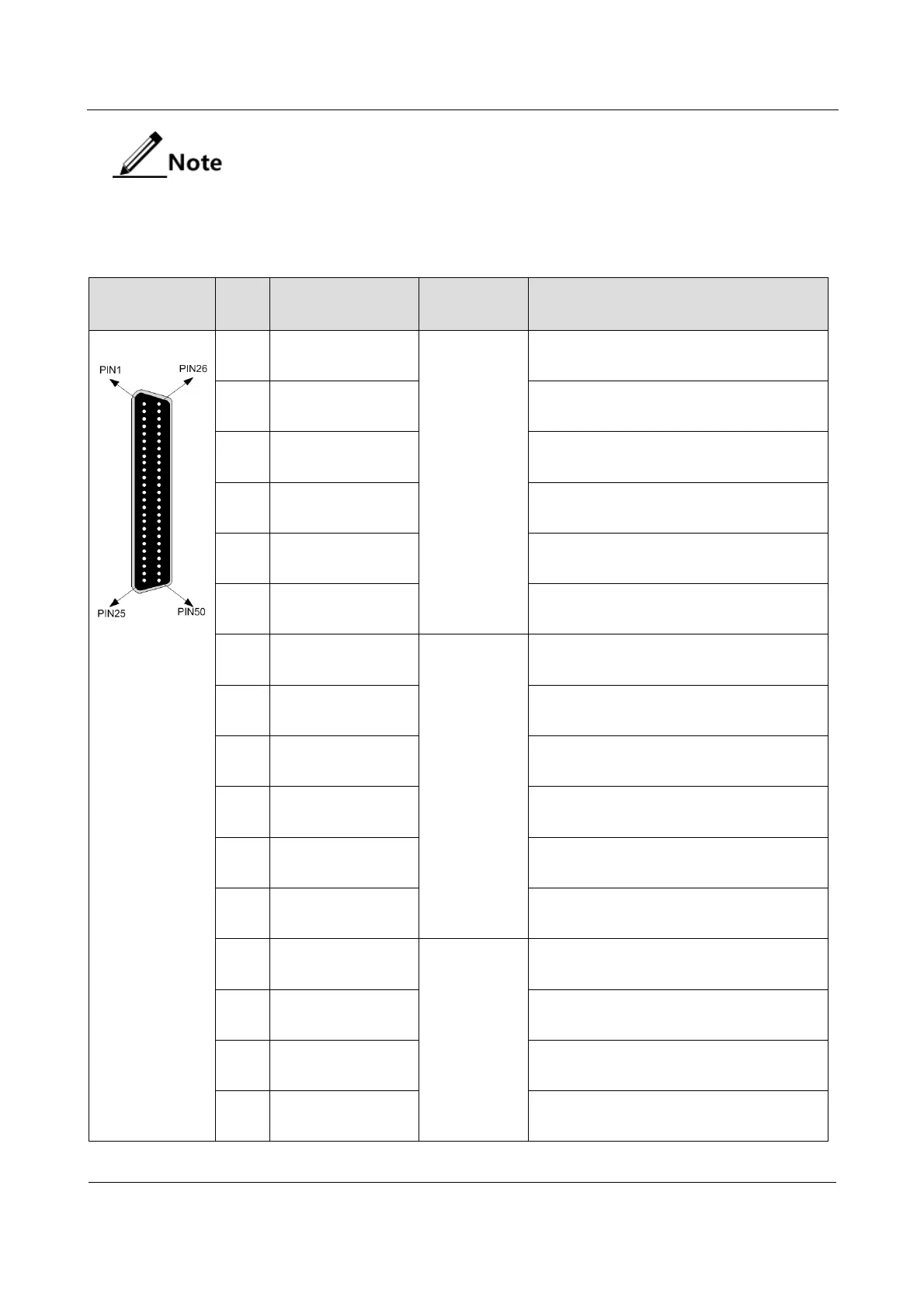

7.2.5 CBL-VOICE-SCSI50M(40)/NC
Figure
PIN
Cable color
E&M
Channel
Description
SCSI50M
1
White background
with blue loop
Channel 1

Audio RX A in 4-wire mode

Idle in 2-wire mode
2
Blue background
with white loop

Audio RX B in 4-wire mode

Idle in 2-wire mode
26
White background
with orange loop

Audio TX A in 4-wire mode

Audio TX/RX A in 2-wire mode
27
Orange background
with white loop

Audio TX B in 4-wire mode

Audio TX/RX B in 2-wire mode
3
White background
with green loop
M signaling cable
4
Green background
with white loop
E signaling cable
28
White background
with brown loop
Channel 2

Audio RX A in 4-wire mode

Idle in 2-wire mode
29
Brown background
with white loop

Audio RX B in 4-wire mode

Idle in 2-wire mode
5
White background
with grey loop

Audio TX A in 4-wire mode

Audio TX/RX A in 2-wire mode
6
Grey background
with white loop

Audio TX B in 4-wire mode

Audio TX/RX B in 2-wire mode
30
Red background
with blue loop
M signaling cable
31
Blue background
with red loop
E signaling cable
7
Red background
with orange loop
Channel 3

Audio RX A in 4-wire mode

Idle in 2-wire mode
8
Orange background
with red loop

Audio RX B in 4-wire mode

Idle in 2-wire mode
32
Red background
with green loop

Audio TX A in 4-wire mode

Audio TX/RX A in 2-wire mode
33
Green background
with red loop

Audio TX B in 4-wire mode

Audio TX/RX B in 2-wire mode
