Raisecom RC3000E User Manual

Raisecom
RC3000E (P100R001) Product Description
4 Cards
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
36

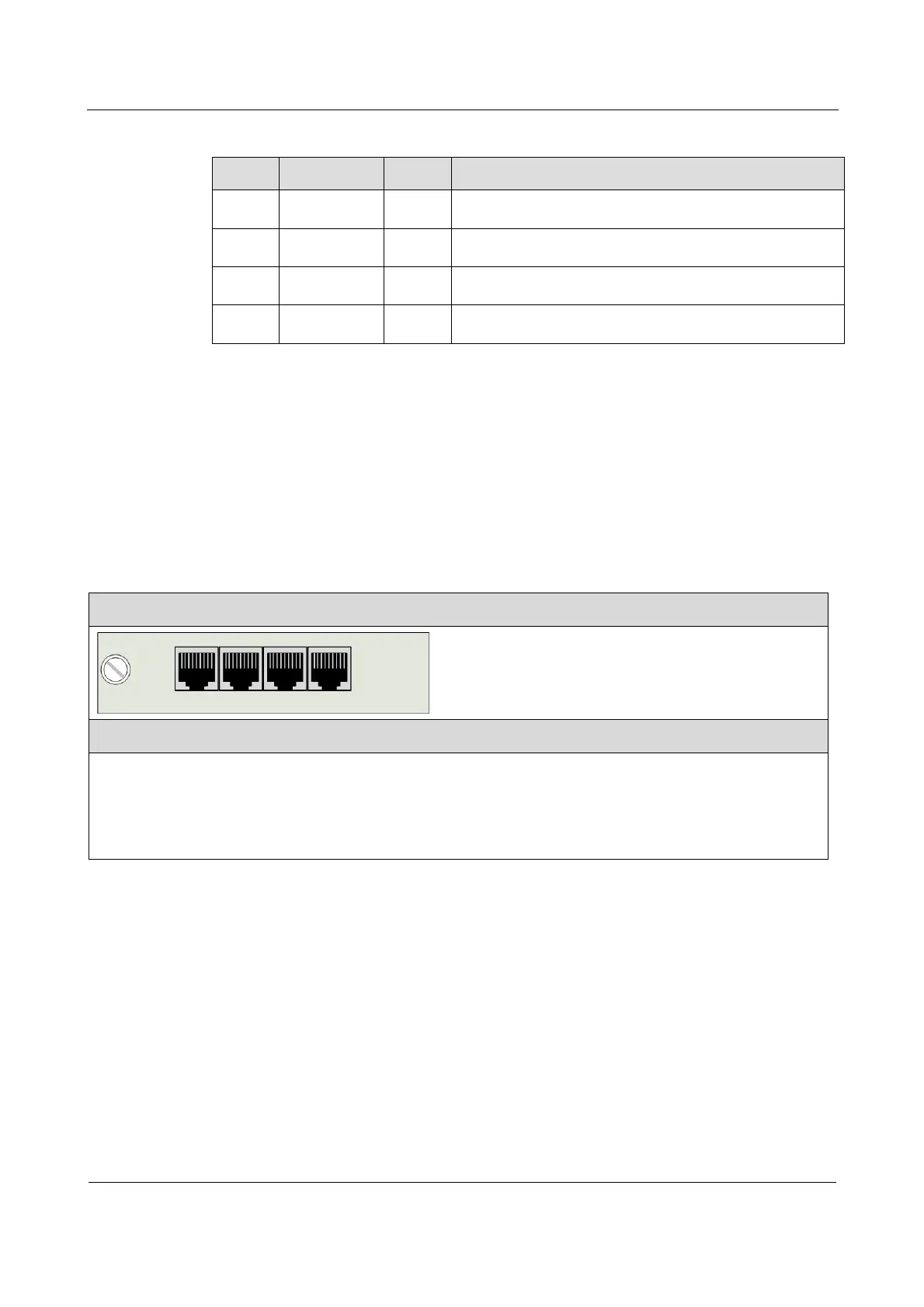

Table 4-7 LEDs on the RC3000-SUB-DV35
No.
Description
Status
Description
1
TD
Green

Green: data is sending through the interface.

Off: no data is sending through the interface.
2
RD
Green

Green: data is receiving through the interface.

Off: no data is receiving through the interface.
3
LP_STA
Green

Green: local loopback occurs.

Off: no local loopback occurs.
4
PAT_OK
Green

Green: BERT is normal.

Off: no BERT or BERT is abnormal.
4.8.5 Technical specifications
Dimensions: 70 mm (Width) × 167.5 mm (Depth) × 20 mm (Height)
4.9 RC3000-SUB-DV24
4.9.1 Appearance and functions
Panel
Function
The RC3000-SUB-DV24 is the standard V.24 interface card on the RC3000E.

The interface rate is 64 kbit/s or 128 kbit/s.

Provide 4 channels and occupy eight 64K channels. The number of occupied channels depends on the
hardware and cannot be changed.

Provide 4 RJ45 interfaces, each of which is a channel interface.
4.9.2 Slots
The RC3000-SUB-DV24 can be inserted into slots 1–3.
4.9.3 Interfaces
Figure 4-5 shows the appearance of the RJ45 interface
