RC3000E (P100R001) Product Description
5 Networking and applications
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
59

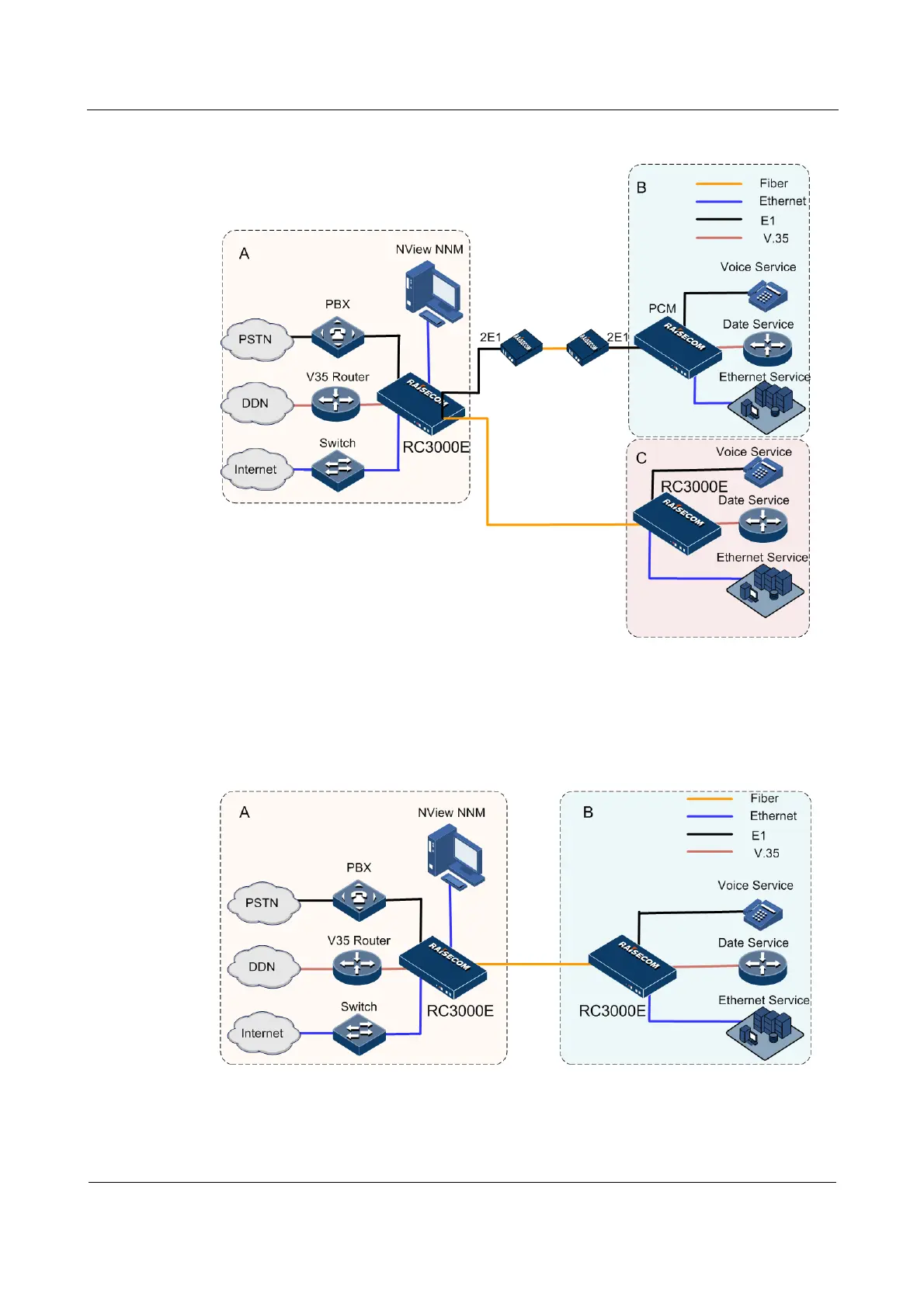

Figure 5-7 Networking scheme in mode 2
5.2.3 Mode 3
Cross 8 ways of E1 demultiplexed from the optical transmission while the 2 ways of E1 on
the subcard interface are idle.
Figure 5-8 Networking scheme in mode 3
The RC3000E in station A connects the RC3000E in station B through fiber and the
RC3000E-UP-OPT-FE2E1 serves as the uplink card of the RC3000E. Station A can interact 8
ways of E1 services at the 64 kbit/s with station B.

Raisecom RC3000E Specifications

General

Brand	Raisecom
Model	RC3000E
Category	Multiplexer
Language	English
