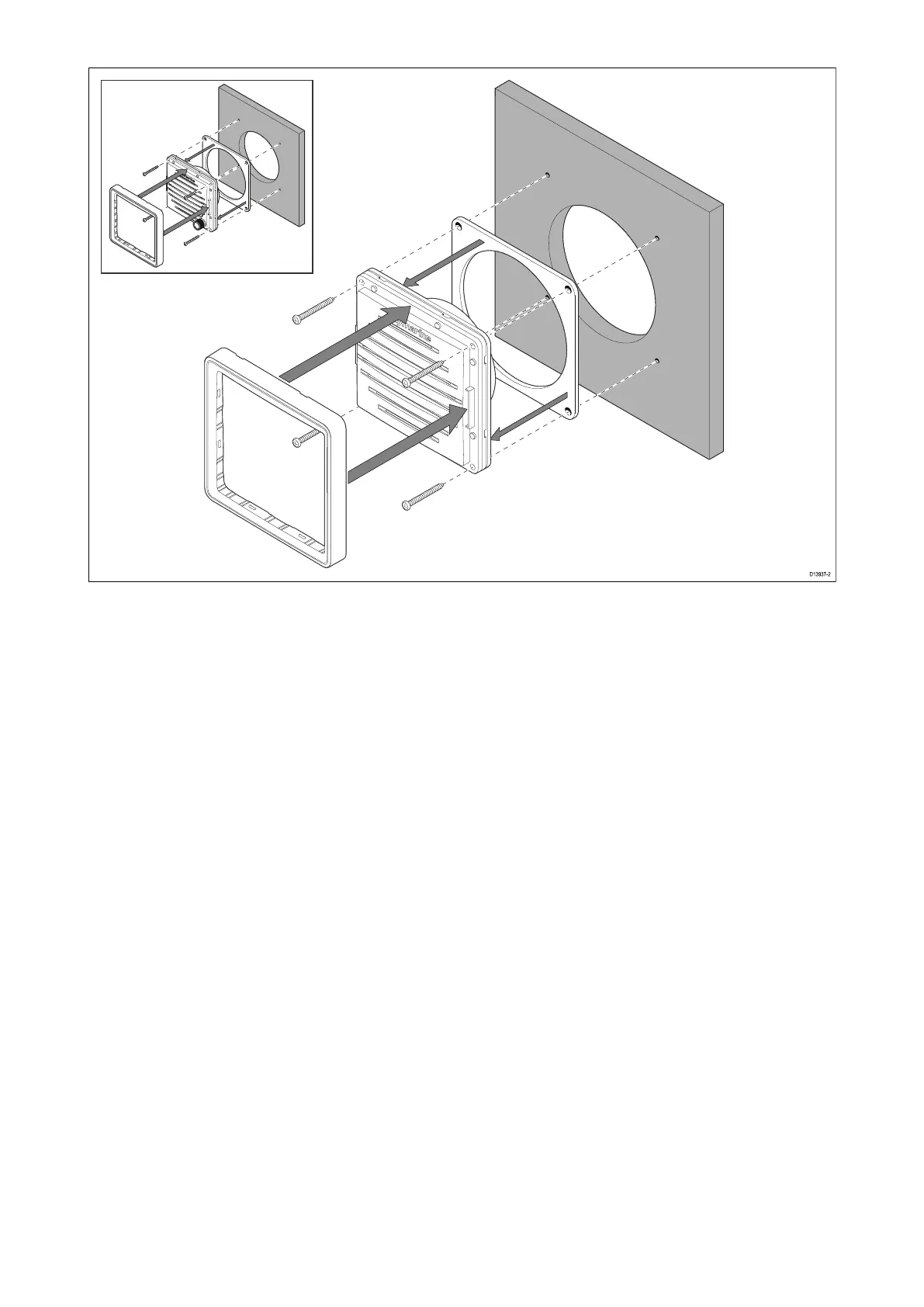

1.R emovethespeaker’sbezel.

2.Usingthesuppliedmountingtemplate,markthelocationofthecutoutandﬁxingholesonthe

mountingsurface.

3.Usinga89mm(3½in)holesaw,drilloutthecentrecutoutareaindicatedonthemounting

template.

4.Drillholesfortheﬁxings,usingadrillwithasuitablesizedbit.

5.Ensurethattheunitﬁtsintotheremovedareaandthenﬁlearoundthecutedgeuntilsmooth.

6.Peelthebackingoffofthesuppliedgasketandplacetheadhesivesideofthegasketontothe

rearofthespeaker,pressingﬁrmlyontotheﬂange.

7.Connecttherelevantcabletothespeaker.

8.Slidethespeakerintoplaceandsecureusingtheﬁxingsprovided.

9.FittheBezel,ensuringitclipsintoplaceonall4sides.

Wiredhandsetmountingusingtheholster

Followthestepsbelowtomountthewiredhandset.

Beforemounting,ensurethatyourselectedlocationmeetsthelocationrequirementsfoundin

thisdocument.

default chapter5
- Table of Contents5
Chapter 1 Important Information13
- Certified Installation13
- Fcc13
- Compliance Statement (Part 15.19)13
- FCC Interference Statement (Part 15.105 (B))14
- Innovation, Science and Economic Development Canada (ISED)14
- Innovation, Sciences et Développement Économique Canada (Français)14
- Water Ingress15
- Disclaimer15
- Declaration of Conformity15
- Product Disposal15
- Warranty Registration15
- Technical Accuracy16
Chapter 2 Document and Product Information17
- Product Documentation18
- Seatalkng ® Documentation18
- User Manuals Print Shop18
- Document Conventions18
- Document Illustrations19
- Product Overview19
- Applicable Products19
- Required Additional Components19
- Optional Wired Components20
- Optional Wireless Components20
- Compatible Mfds20
- Incompatible Mfds22
- Parts Supplied23
- Licensing24
- USA Licensing Requirements24
- Canada Licensing Requirements24
- Europe and Rest of World Licensing Requirements24
- Additional Information - Ray90 / Ray9124
- Additional Information - Wireless Handset24
- Additional Information - Wireless Charging Holster25
- Additional Information - Wireless Hub25
- Additional Information - Wireless Speaker25
- Obtain MMSI (Maritime Mobile Service Identity) Number26
- Automatic Transmitter Identification System (ATIS)26
- Software Updates26
- Checking Software Versions27
- Ray90/Ray91 Software27
- Performing Software Updates - Raymic Handset27
Chapter 3 Installation29
- Selecting a Location30
- General Location Requirements30
- Antenna Mounting and EME Exposure31
- Multiple Antenna Installations32
- Loud Hailer Location Requirements32
- GNSS (GPS) Location Requirements32
- Wireless Product Location Requirements32
- Wireless Location Requirements32
- Pre-Installation Site Survey33
- Product Dimensions34
- Product Dimensions - Base Station34
- Product Dimensions - Speakers35
- Product Dimensions - Wired Handset (Raymic)36
- Product Dimensions - Wireless Hub37
- Product Dimensions - Wireless Handset and Holster38
- Mounting38
- Tools Required for Installation38
- Mounting the Base Station39
- Wired and Wireless Speaker Mounting39
- Wired Handset Mounting Using the Holster40
- Pass-Through Panel Kit Mounting41
- Mounting the Wireless Hub43
- Mounting the Charging Holster for the Wireless Handset45
Chapter 4 Cables and Connections47
- General Cabling Guidance48
- Cable Types and Length48
- Cable Routing48
- Strain Relief48
- Circuit Isolation48
- Cable Shielding49
- Connections to Other Equipment49
- Dust Caps49
- Bare End Wire Connections49
- Connections Overview49
- Power Connection50
- In-Line Fuse and Thermal Breaker Ratings51
- Grounding51
- Power Distribution51
- Handset Station Connection54
- Connecting Handsets and Cables54
- Wired Handset Extension Cables55
- Wired Speaker Connection55
- NMEA 2000 / Seatalkng ® Connection55
- Connecting Seatalkng ® Cables56
- NMEA 0183 Connection56
- Loud Hailer Connection57
- Connecting GNSS (GPS) and VHF Antennas58
- Wireless Hub Connection59
- Wireless Handset Charging Holster - Power Connection60
- In-Line Fuse and Thermal Breaker Ratings60
- Wireless Handset Connections60
- Wireless Speaker - Power Connection61
- In-Line Fuse and Thermal Breaker Ratings61
Chapter 5 Getting Started63
- Handset Controls64
- Wireless Speaker Controls65
- Powering the Base Station65
- Powering the Handset66
- Homescreen Overview66
- Status Bar Symbols67
- Main Menu Overview69
- Multiple Station Operation72
- Adjusting Brightness and Contrast72
- Shared Brightness72
- Enabling Shared Brightness73
- Initial Set up74
- Selecting a Language74
- Switching on the AIS Receiver74
- Selecting a Network Type75
- Entering Your MMSI Number75
- Entering Your ATIS ID77
- Enabling and Disabling ATIS Mode78
- Changing the Radio Region79
- Switching between High and Low Transmit Power80
- GNSS (GPS) Set up80
- Enabling and Disabling the Internal GNSS (GPS)80
- GNSS Data Source80
- No Position Data80
- Entering Position Manually80
- Selecting (GNSS) GPS Information to Display81
- Setting Time Format and Offset81
Chapter 6 Wireless Handset Stations83
- Wireless Handsets84
- Wireless Handset Charging84
- Connecting a Wireless Handset to the Hub85
- Checking the Wireless Hub's Password86
- Changing Your Wireless Hub's Password86
- Changing the Hub's Wireless Channel86
- Connecting the Wireless Speaker to the Wireless Handset87
- Disconnecting a Wireless Speaker87
- Wireless Set-Up Menu Options88
- Wireless Hub Set-Up Menu Options88
- Wireless Handset Not Connected Menu88
Chapter 7 Digital Selective Calling (DSC)91
- Digital Selective Calling (DSC)92
- Distress Calls93
- Making a Designated Distress Call93
- Making a Distress Call93
- Making a Mayday Call94
- Cancelling a Distress Call before Transmission94
- Cancelling a Distress Call after Transmission95
- Receiving a Distress Call96
- Ignoring a Distress Call97
- Acknowledging a Distress Call97
- Manually Relaying a Distress Call97
- Distress Relays Sent by Other Stations97
- Urgency Calls98
- Making an Urgency Call98
- Receiving an Urgency Call98
- Safety Calls98
- Making a Safety Call98
- Receiving a Safety Call99
- Individual (Routine) Calls99
- Making an Individual Call99
- Receiving an Individual Call100
- Group Calls100
- Making a Group Call100
- Receiving a Group Call100
- Position Requests101
- Making a Position Request101
- Responding to a Position Request101
- Setting Automatic Response to Position Requests101
- Phonebook101
- Adding a Phonebook Entry101
- Editing a Phonebook Entry102
- Deleting a Phonebook Entry102
- Call Logs102
- Accessing the Call Logs102
- Test Calls103
- Making a Test Call103
- Receiving a Test Call104
- DSC Set-Up Menu Options104
Chapter 8 VHF Operations105
- Watch Modes106
- Setting Watch Mode106
- Scan Mode106
- Setting Scan Mode106
- Priority Channels106
- Switching between Priority Channels107
- Setting a Second Priority Channel107
- Sensitivity107
- Switching Sensitivity Modes107
- Private Channels107
- Selecting a Private Channel Set107
- Automatic Transmitter Identification System (ATIS) and Marcom-C Mode108
- Enabling and Disabling ATIS Mode108
- AIS Receiver108
- Switching AIS on and off108
- Set-Up Menu Options109
- Display Set-Up Menu110
- Shared Brightness Menu110
Chapter 9 Hailer, Fog Horn, and Intercom111
- Hailer Fog Intercom Menu112
- Loud Hailer112
- Using the Hailer112
- Fog Horn112
- Using the Fog Horn in Manual Mode113
- Using Automatic Fog Horn Modes113
- Switching off Fog Horn Mode113
- Intercom113
- Using the Intercom113
- Responding to the Intercom113
Chapter 10 Maintenance115
- Maintenance116
- Routine Checks116
- Unit Cleaning Instructions116
Chapter 11 Troubleshooting117
- LED Diagnostics - Ray90 / Ray91 Base Station118
- LED Diagnostics - Wireless (Active) Speaker118
- Troubleshooting119
- Performing a System Reset119
- System Test119
- Checking for RF Interference119
- Power up Troubleshooting121
- Audio Troubleshooting (Transmission / Reception)123
- Passive Speaker Troubleshooting124
- GNSS (GPS) Troubleshooting125
- DSC Troubleshooting126
- Obtain MMSI (Maritime Mobile Service Identity) Number126
- AIS Troubleshooting (Ray70 / 73 / 91 Only)127
- Wired Handset Troubleshooting128
- Wireless Troubleshooting (Ray63 / 73 / 90 / 91 Only)129
Chapter 12 Technical Support131
- Raymarine Product Support and Servicing132
- Viewing Product Information133
- Learning Resources133
Chapter 13 Technical Specification135
- Technical Specification - Base Station136
- Technical Specification - Wired Handset (Raymic)138
- Technical Specification - Wired (Passive) Speaker138
- Technical Specification - Wireless Hub138
- Technical Specification - Wireless Handset138
- Technical Specification - Wireless Handset Charging Holster139
- Technical Specification - Wireless (Active) Speaker139
- Radio Usage140
Chapter 14 Spares and Accessories141
- Ray90 / Ray91 Spares142
- Extension Cables142
- Accessories142
- Seatalkng ® Cables and Accessories143
Appendix A NMEA 0183 Sentences145
Appendix B NMEA 2000 PGN List146
Appendix C MMSI Regulatory Bodies and Application Submissions147
Appendix D VHF Channels148
Appendix E Phonetic Alphabet159
Appendix F Prowords160
