4.TightenlockingcollarsbyR

otatingclockwise.

Wiredhandsetextensioncables

Handsetstationcablingcanbeextendedusingapprovedextensioncables.

ThemaximumlengthofcablefromtheHandsettotheBasestationshouldnotexceed50m(164ft)

4.5Wiredspeakerconnection

AwiredspeakercanbeconnectedtoawiredhandsetstationusingtheRCAaudioconnector,

availableontheHandsetadaptorcable.

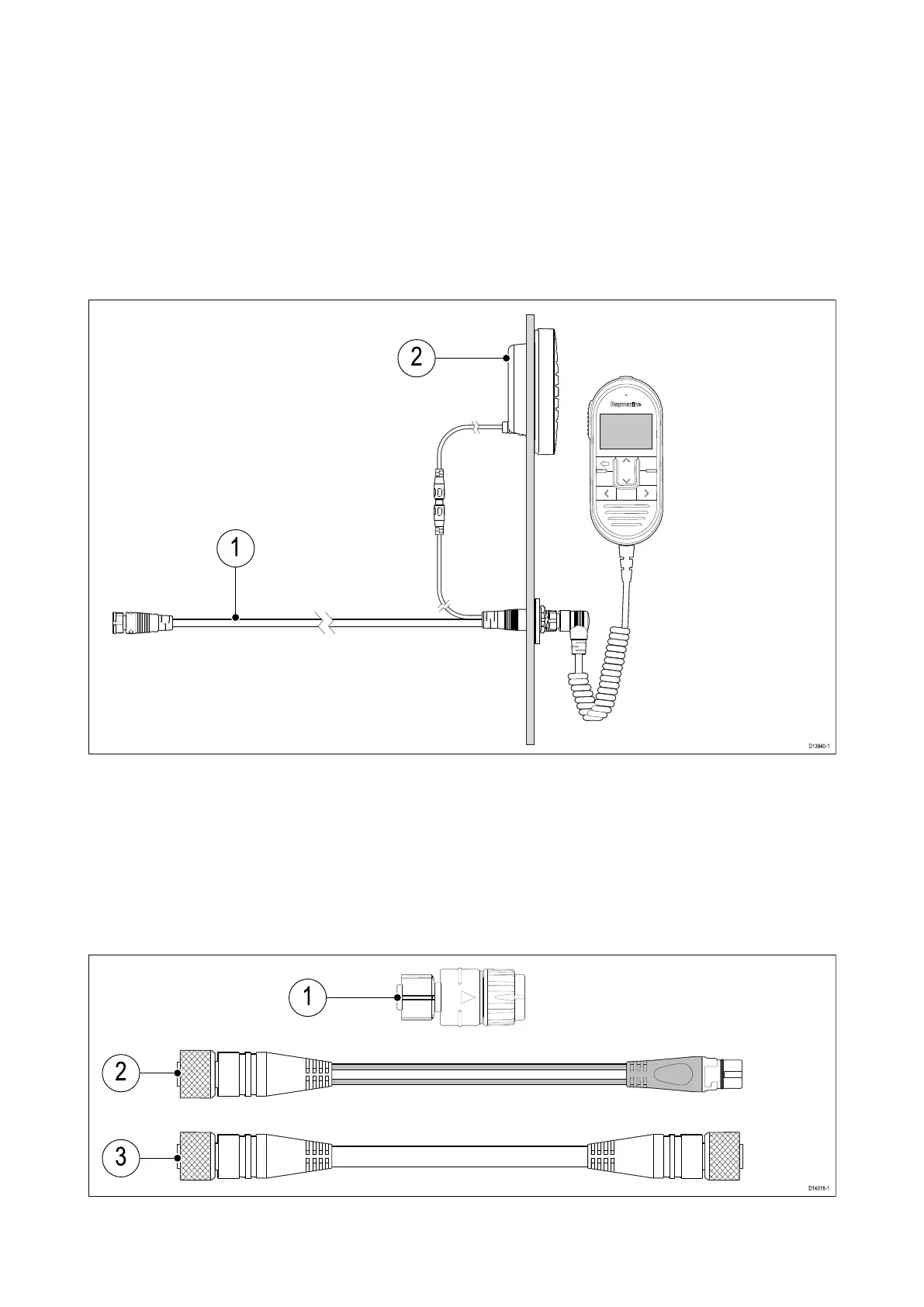

1.Wiredhandsetadaptorcable400mm(1.3ft)(1xsuppliedandavailableasanaccessory:A 80297)

2.Wiredspeaker(1xsuppliedandavailableasanaccessory:A80542)

Thewiredspeakerincludesa2m(6.56ft)audiocableterminatedwithamaleRCAconnector.

4.6NMEA2000/SeaTalkng®connection

Y ourproductcantransmitdatatodevicesconnectedonSea Talkng®orNMEA2000CANbus

networks.ConnectionisestablishedusingtheDeviceNetconnectorlocatedonthebottomoftheunit.

1.UsethesuppliedDeviceNettoSea Talkng®adaptortoconnectyourproducttoyourSea Talkng®

backboneusingavailableSeaTalkng®spurcables.

Cablesandconnections55
