7
65 EITHER 1 CERAMIC RESONATOR 11MHz CERALOCK CSA 11.0MTXL 1
64 2 CAPACITOR 1206 33pF ±5* 50V C15, 16
63 OR 1 CERAMIC RESONATOR CERALOCK CST 11.0MT(3 LEGS)XL 1
NOTE:-THIS 1st STAGE PCB ASSY RELATES TO
CURRENT BUILD STANDARD OF 3015-040 ISSUE D
AND
62 22016 3 NUT
61 15014 6 INSULATING BUSH
60 23029 3 WASHER
59 21114 3 SCREW
58 26005 2 RIVSCREW (1712-3509)
57 02032 1 DIODE MUR1510 D15
56 05028 2 TRANSISTOR SM2174A TR23,25
55 05029 2 TRANSISTOR SM2184A TR24,26
54 03036 2 CAPACITOR 1µF ±m 25V MIN TANTALUM BEAD C23,24
53 03023 1 CAPACITOR 1000µF 3 60V M1N C21
52 1 CAPACITOR 1206 22nF ±20$ X7R 50V C5
51 1 EEPROM 16 x 16 M9306M1 {SURFACE MOUNT) IC8
50 1 LATCH 74HC373 (SURFACE MOUNT) IC6
49 2 F.E.T.OP.AMP CA3130M (SURFACE MOUNT) IC4,5
48 2
ANALOGUE SWITCH CD74HC4051M (SURFACE MOUNT) IC3,9
47 1 MICRO ROMLESS 80C32 12MHz PLCC CMOS IC2
46 1 5v REGULATOR LM2925 IC1
45 05035 1 TRANSISTOR PNP BDW94B TR12
44 13 TRANSISTOR SOT23 NPN BC817
43 6 TRANSISTOR SOT23 PNP BC807 TR1, 8, 21, 22, 27, 28
42 2 CAPACITOR 1206 0.01µF ±20% 25V MIN C22.25
41 03031 2
CAPACITOR ELECTROLYTIC 100µF +80% -20% 5V MIN RADIAL 10DIA C6.26
40 1 CAPACITOR CASE A 2.2µF ±20% 6V3MIN TANTALUM C3
39 1 CAPACITOR 1206 470pF ±20% 50v C20
38
37 12 CAPACITOR 1206 0. 1µF ±20% 50v
C2,7,8,10,11,12,13,14,17,18,27,28
36 1
CAPACITOR 120 100pF ±20% COG 50v OR
CAPACITOR POLYSTYRENE 1000pF ±1% 10v MIN (03053)
C9
35 1 CAPACITOR 1206 1000pF ±20% 50v C1
34 2 DIODE SOT23 BAW56 D4,9
33 5 DIODE SOT23 BAS 19 D11,12,14,18,19
32 1 DIODE SOT23 BAV99 D2
31 01157 2 RESISTOR WIRE-WOUND 82R ±5% 2.5W R106, 114
30
29 2 WCR 1206 (FUTURE USE) R69,72
28 2 WCR 1206 33K 1% 0.125W R30,43
27 1 WCR 1206 3K9 5% 0.125W R23
26 1 WCR 1206 470K 5% 0.125W R68
25 1 WCR 1206 82R 1% 0.125W R62
24 5 WCR 1206 5K6 1% 0.125W R53, 59,73,74,90
23 9 WCR 1206 68K 1% 0.125W
22 3 WCR 1206 270R 1% 0.125W R28,29,65
21 6 WCR 1206 1K 1% 0.125W
R26,27,31,32,54,64
20 6 WCR 1206 1K5 5% 0.125W R16,18,102,103,116,119
19 4 WCR 1206 220R 5% 0.125W R104,107,113,115
18 3 WCR 1206 4K7 5% 0.125W R12,100,120
17 1 WCR 1206 15K 5% 0.125W R10
16 9 WCR 1206 10K 5% 0.125W
R9,14,15,22,24,25,66,67,93
15 1 WCR 1206 22K 5% 0.125W R8
14 6 WCR 1206 2K2 5% 0.125W R6,7,101,105,117,118
13 2 WCR 1206 1K8 5% 0.125W R77.78
12 1 WCR 1206 1K2 1% 0.125W R61
11 8 WCR 1206 1K2 5% 0.125W
R4,5,10,110,122,123,124
10 1 WCR 1206 390R 5% 0.125W R3
9 3 WCR 1206 39K 5% 0.125W R2,11,13
8 5 WCR 1206 8R2 5% 0.125W R1,20,21,70,71
7 1 VARISTOR ZNR TYPE D ERZC07DK270 V1
6
5 3022-003 1 HEATSINK
4 3010-073 2 CUSTOM SIL PAD
3 07164 1 1C SOCKET (28 PIN) SK2
2 07119 1 'D' CONNECTOR 25 WAY (FEMALE) SK1
1 3015-040 1 ST6000 COMPUTER PCB DETAIL
ITEMS DRG/PART N° QTY DESCRIPTION

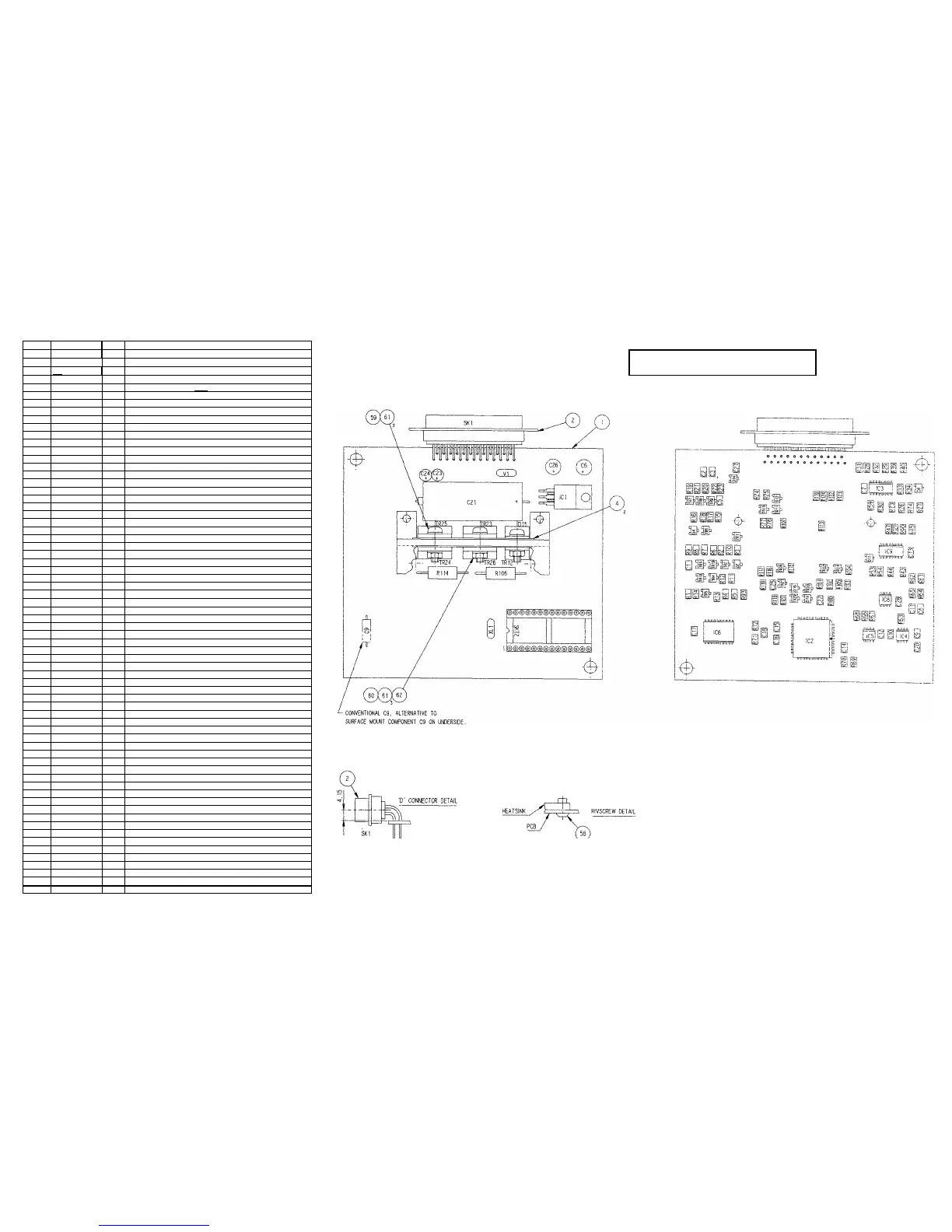

ST6000 (Z123) Course Computer PCB Assembly
ISS D
