SeaTalk Service Manual 16

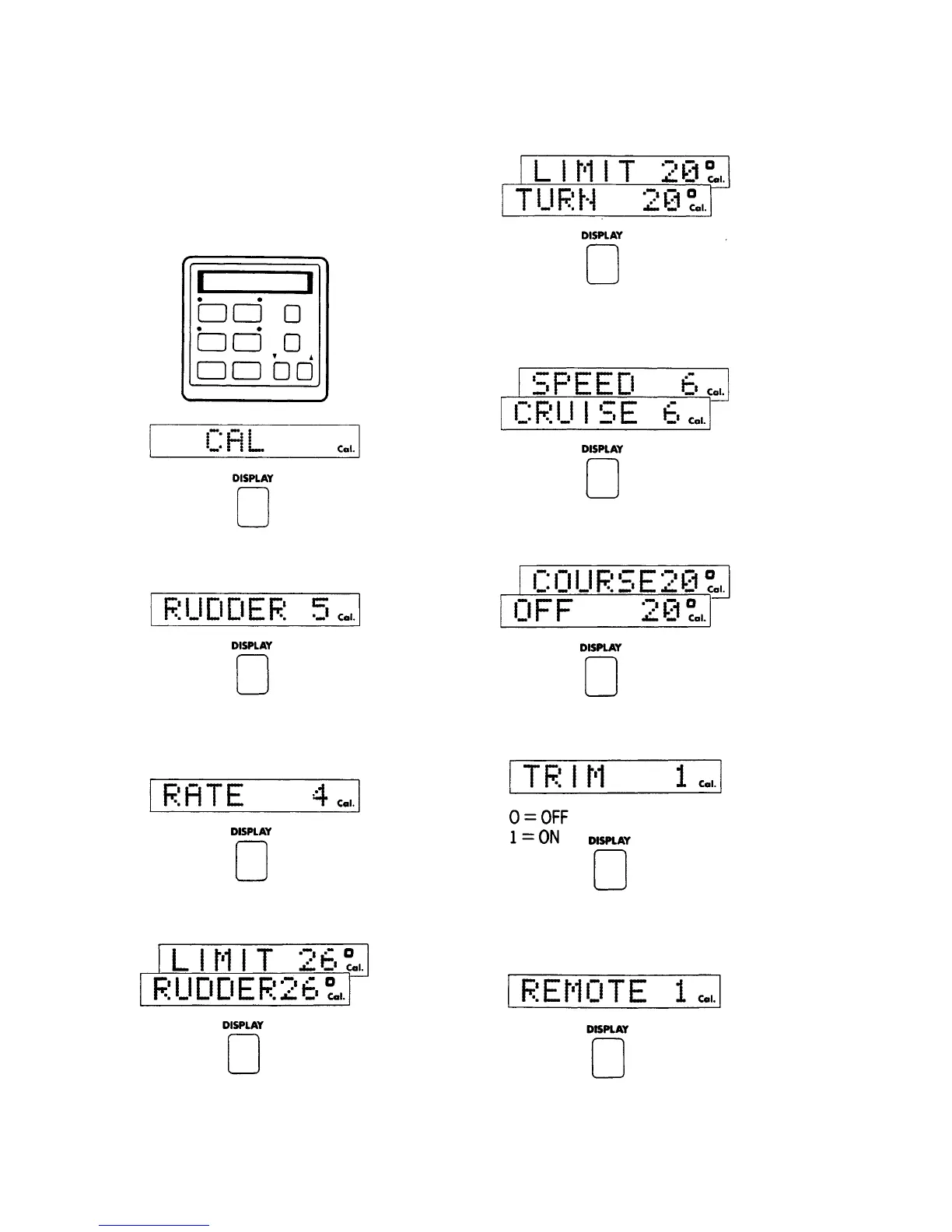

3.4.1 Adjusting Calibration
In calibration mode, the Display button is
used to scroll through the menu. The
displayed value is adjusted using the
Response buttons (hold button down for fast
scroll).
• Rudder Gain, levels 1 to 9, (see 5.6)
• Rate Gain, levels 1 to 9, (see 5.7)
(Counter Rudder).
• Rudder Angle Limit, 15° to 40° (see 3.6).
• Rate of Turn Limit, 5° to 20°/sec.
• Cruise Speed, for Track mode
operation, 4 to 60 knots.
• Off-Course Alarm, 15° to 40° angle.
• Automatic Trim, (see 5.4).
• Remote Control Identifier. (For Future
Use).
