7

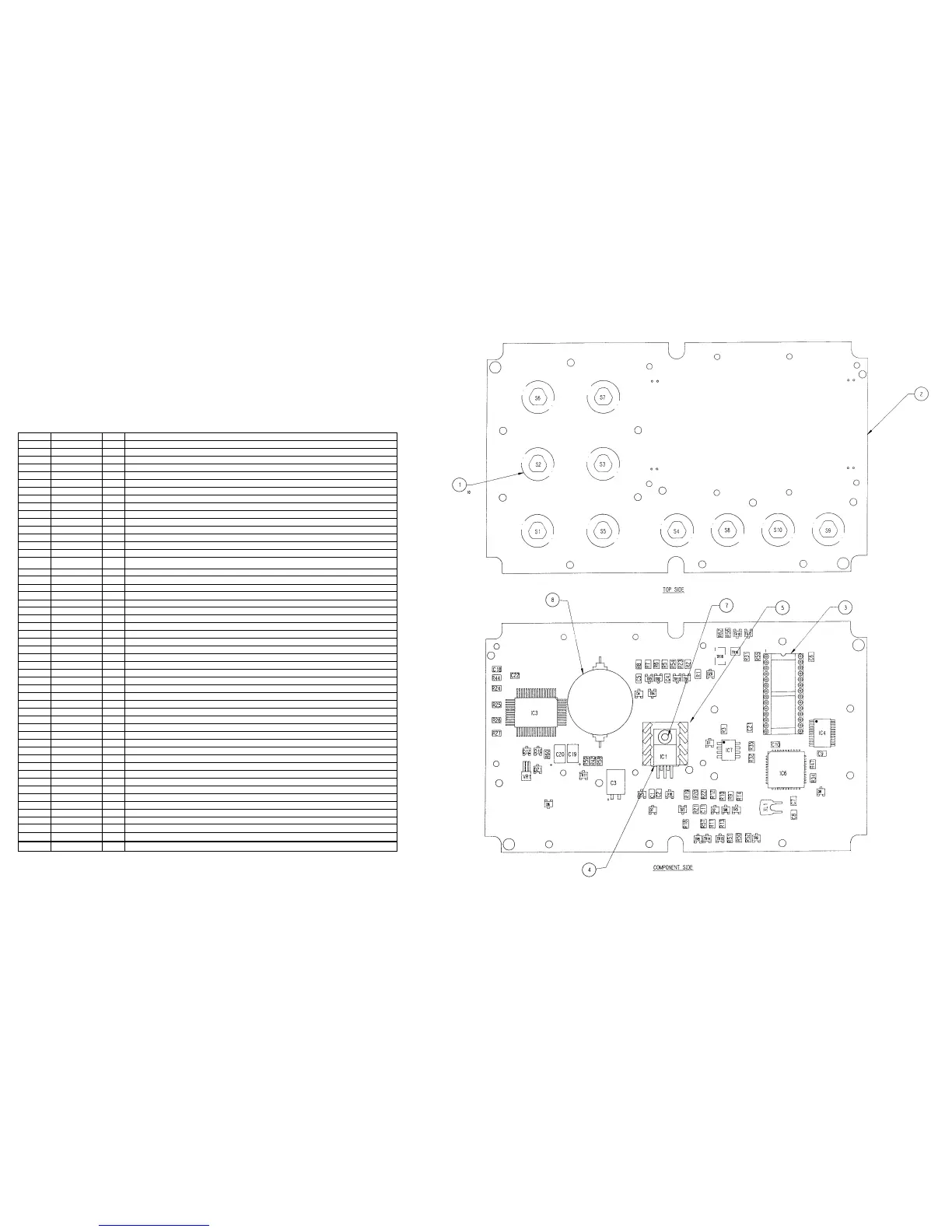

NOTES
1. ALL SURFACE MOUNT CAPACITORS AND RESISTORS TO HAVE NICKEL BARRIER
SOLDER PLATED TERMINATIONS
2. ITEM 4 (15036) TO BE SANDWICHED BETWEEN ITEM 5 (15039) AND PCB TO
INSULATE HEATSINK FROM 5V TRACK CONNECTED TO IC 1 (PIN 2)
3. ITEM 6 15085) TO LIE FLAT ON P.C.B. AS SHOWN.
47 OR 1 LCD DISPLAY DRIVER KS0062 (SAMSUNG) IC3
46 EITHER 1 LCD DISPLAY DRIVER HD44780 (HITACHI)
AND
45 OR 1 TRANSISTOR BC337 NPN (TO BE ASSEMBLED WITH
MAXIMUM LEAD LENGTH =4MM)
44 EITHER 1 TRANSISTOR SOT89 BCX68 NPN TR16
PLUS
43 10 CONTACT CLICKER 00K-73470 S1, S2, S3, S4, S5, S6, S7, S8, S9, S10
42 1 CHIP TRIMMER RESISTOR 1K MURATA RVG 4F03A-102VM VR1
41 1 OPTO ISOLATOR 6N139 LEADS TO BE FORMED FOR
BUTT JOINT CONNECTION (ie HPs OPTION 100) IC7
40 1 MICRO ROM LESS 80C32 12MHz PLCC IC6
39 1 HCMOS LATCH 74HC373 IC4
38 1 VOLTAGE REGULATOR LM2925 IC1
3? 1 TRANSISTOR SOT 23 BC807 PNP TR7
36 14 TRANSISTOR SOT 23 BC817 NPN
TR1, TR2, TR3, TR4, TR5, TR6, TR8, TR9,
TR10, TR11, TR12, TR13, TR14, TR15
35 5 DIODE SOT 23 BAW56 D6, D7, D8, D15, D16
34 3 DIODE SOT 23 BAV99 D2, D10, D21
33 1 DIODE SOT 23 BAS 16 D12
32 3 DIODE SOT23 BAS19 D1, D4, D20
31 2 CAPACITOR SOLID TANT. 10UF ±20% 6V3(SIZE C) C19, C20
30 1 1206 CAPACITOR 1000pF ± 10% 5OV X7R C11
29 2 1206 CAPACITOR 33pF ±5% 50V COG C7, C8
28 3 1206 CAPACITOR 22pF ±5% 50V X7R C2, C4, C5
27 1 1206 CAPACITOR 0.1µF ±20% 50V X7R
26 1 ELECTROLYTIC CAPACITOR 100uF ±20% 6.3V MIN 5.5 MAX C3
25 1 1206 RESISTOR 100K 5% 0. 125W R35
24 4 1206 RESISTOR 1K0 2% 0.125W R24.R25R26R27
23 1 1206 RESISTOR 220R 5% 0. 125W R42
22 1 1206 RESISTOR 680R 5% 0 125W R60
21 1 1206 RESISTOR 10R0 1% 0.125W R56
20 1 1206 RESISTOR 91K 2% 0. 125W R44
19 1 1206 RESISTOR 8R2 5% 0.125W R34, R47, R57, R59
18 3 1206 RESISTOR 39K 5% 0.125W R10, R11, R19
17 1 1206 RESISTOR 22K 5% 0. 125W R21
16 1 1206 RESISTOR 15K 5% 0. 125W R12
15 9 1206 RESISTOR 12K 5% 0. 125W
R1, R2, R6, R7, R9, RZ2, R23, R50, R55
14 4 1206 RESISTOR 4K? 5% 0.125W R13R32R54R58
13 3 1206 RESISTOR 2K2 5% 0.125W R3, R14, R20
12 3 1206 RESISTOR 1K2 5% 0.125W R31, R51, R52
11 2 1206 RESISTOR 470R 5% 0 . 125W R5, R8
10 1 1206 RESISTOR 390R 5% 0. 125W R18
9 1 1206 RESISTOR 13R0 1% 0.125W R62
8 1 BUZZER KBS-27DB~3T
7 26006 1 RIVSCREW 1712-3507 (AVDEL)
6 15085 1 CERAMIC RESONATOR 11MHz (CSA 11.0MT) XL1
5 15039 1 HEATSINK REDPOINT TV58
4 15036 1 TRANSISTOR MOUNTING PAD
3 07164 1 28 PIN IC SOCKET
2 3015-028 1 7000 CONTROL UNIT PCB DETAIL
1 3010-036 10 CLICKER SEAL
ITEMS DRG/PART N* QTY DESCRIPTION
