11
21 03031 f CAPACITOR ELECTROLYTIC 100uF +80% -20% 25VMIN C6
20 01083 1 RESISTOR C’FILM 3K9 .25W ±5% R3
19 15057 3 RELAY T90.30A RL1, 2, 3
18 13024 1 LINK LK1
17 05019 4 TRANSISTOR PNP BC 327 TR4, 5, 10, 11
16 05018 4 TRANSISTORS BC 337 TR1, 2, 3, 12
15 03036 2 CAPACITOR TANTALUM 1µF ±20% 25vmin C3, 20
14 03023 1 CAPACITOR ELECTROLYTIC 1000µF +80% -20% 60vmin C5
13 03020 2 CAPACITOR CERAMIC 0.01µF ±20% 25vmin C2, 4
\? 02004 4 DIODE IN 4148 D2, 3, 5, 6
11 02002 1 DIODE IN 4818 D8
10 01158 4 RESISTOR CTILM 1K5 .25W ±5% R7, 9, 20, 22
9 01157 2 RESISTOR WIREWOUND 82R 2.5W ±5% R12. 18
8 01102 ? RESISTOR CTILM IK .25W ±1% R14. 16
7 01061 3 RESISTOR CTILM 6K8 .25W ±5% R5, 6, 24
6 01055 t RESISTOR CTILM 270R .5W ±5% R15
5 01045 4 RESISTOR CTILM 220R .25W ±5% R11, 13, 17, 19
4 01032 4 RESISTOR CTILM ZK2 .25W ±5 R8, 10, 21, 23
3 01003 1 RESISTOR CTILM IK .25W ±5% R4
2 4021-024 1 LOOM S'ASSY
1 4021-023 1 POWER AMP. S'ASSY 1st STAGE
ITEMS DR'G/PART N* Q'T'Y DESCRIPTION

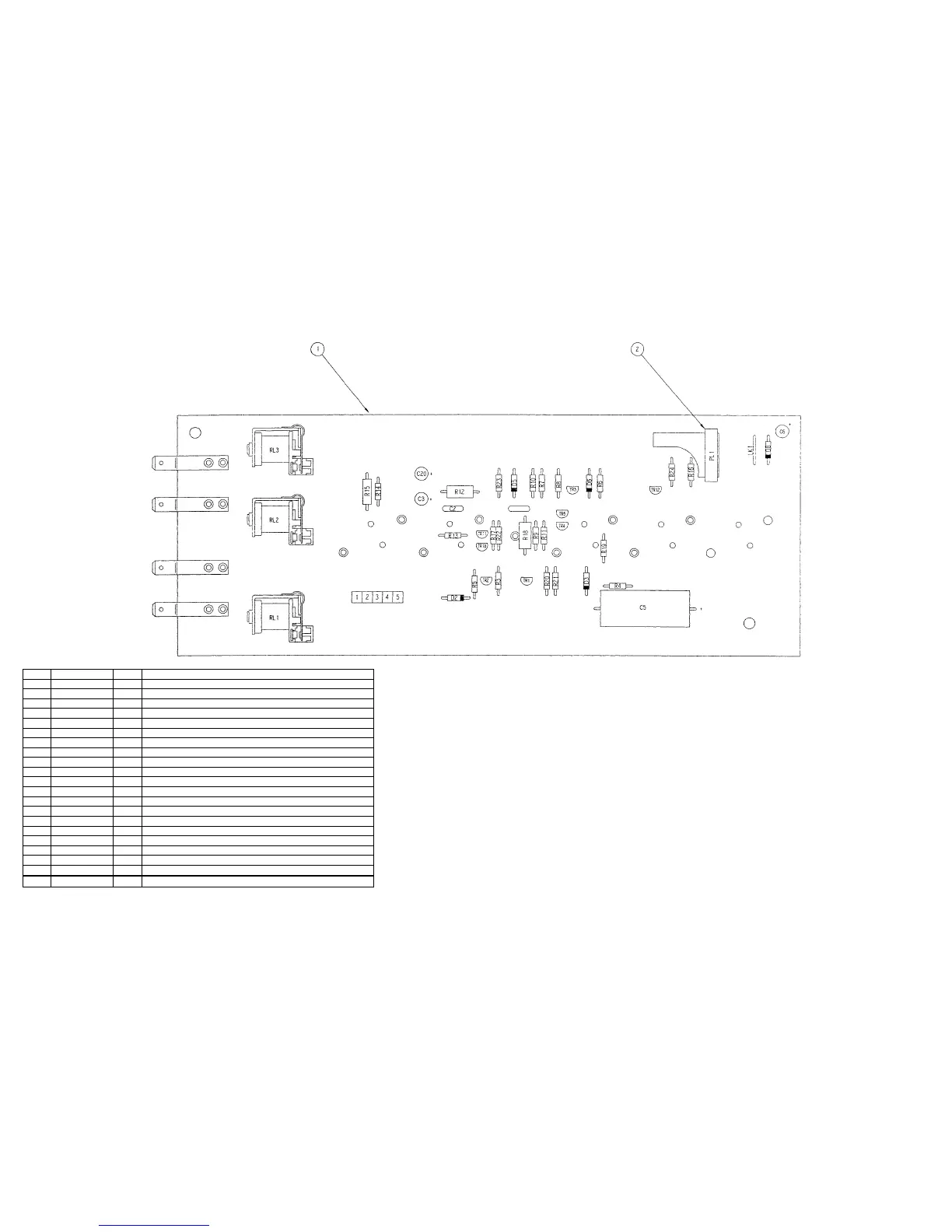

Fig. 4. Power Amplifier PCB Assembly/Parts List (Z083)
ISS B
