7
51 91063K9 1 WCR 1206 3K9 5X . 125W R23 52 910333K 2 WCR 1206 33K 1% .I25W R30.43
50 940093061 1 EEPROM 16 x 16 M9306M 1 (SURFACE MOUNT) IC8 53 91036K8 2 WCR 1206 6K8 1% .125W R37 38
49 54 910310K 3 WCR 1206 10K 1% .125W R39.40.49
48 940374373 1 LATCH 74HC373 IC6 55 910668R 1 WCR 1206 68R 5X .125W R92
47 9400CA3130 2 F.E.T. OP. AMP CA3130M (SURFACE MOUNT) IC4, 5 56 930522N 1 CAPACITOR 1206 22nF ±5% X7R 50V C5
46 94024051 2 ANALOGUE SWITCH CD74HC405 1M1SURFACE MOUNT) IC3, 9 57 9203BZX9V1 1 ZENER DIODE SOT23 BZX 84C9V1 D13
45 940680C32 1
MICRO ROM LESS 8032 12MHz PLCC NMOS
OR 80C32 12MHz PLCC CMOS
IC2 58 15036 1 TRANSISTOR MOUNTING PAD
44 04049 1 5v REGULATOR LM2925 IC1
43 05035 1 TRANSISTOR PNP BDW94B TR12
42 9500BC817 14 TRANSISTOR SOT23 NPN BC817
TR2, 3, 4, 5, 6, 7, 9, 10, 11, 13,14,
17, 18, 19
41 9500BC807 4 TRANSISTOR SOT23 PNP BC807 TR1, 8, 15, 16
40 03067 1 CAPACITOR TANTALUM 100uF ±20% 6V3 2.5 PITCH C6
39 93102U2 1 CAPACITOR CASE A 2.2uF ±20X 6V3MIN C3
38 9307470P 1 CAPACITOR 1206 470pF ±201 50v C20
37 931233P 2 CAPACITOR 1206 33pF ±5$ 50v C15, 16
36 93070U1 12 CAPACITOR 1206 0.1µF ±20* 50v
C2, 4, 7, 8, 10, 11, 12, 13, 14, 17,
18, 19
35 93161000P 2 CAPACITOR 1206 1000pF ±2% COG 50v C1, C9
34
33 02031 1 DIODE MR751 (MOTOROLA) D6
32 9200BAS19 1 DIODE SOT23 BAS19 D12
31 9200BAS16 9 DIODE SOT23 BAS16 D2, 3, 4, 5, 7, 8, 9, 10, 11
30
29 91063R3 2 WCR 1206 3R3 5% .125W R87, 88
28 9106470K 1 WCR 1206 470K 5% .125W R68
27 910382R 1 WCR 1206 82R 5% .125W R62
26 91035K6 3 WCR 1206 5K6 5% .125W R53, 59, 90
25 910368K 13 WCR 1206 68K 5% .125W
R33, 34, 35, 36, 41, 42, 44, 45, 46,
47, 48, 63, 89
24 9103270R 3 WCR 1206 270R 5% .125W R28, 29, 65
23 91031K 6 WCR 1206 1K 5% .125W R26, 27, 31, 32, 54, 64
22
21 91061K5 3 WCR 1206 1K5 5% .125W R16, 18, 91
20 91034K7 2 WCR 1206 4K7 5% .125W R73, 74
19 91064K7 3 WCR 1206 4K7 5% .125W R12, 75, 76
18 910615K 1 WCR 1206 15K 5% .125W R10
17 910610K 13 WCR 1206 10K 5% .125W
16 910622K 1 WCR 1206 22K 5% .125W R8
15 91062K2 6 WCR 1206 2K2 5% .125W R6, 7, 83, 84, 85, 86
14 91061K8 2 WCR 1206 1K8 5% .125W R77, 78
13 91031K2 5 WCR 1206 1K2 5% .125W R4, 5, 17, 19, 61
12 91061K2
11 9106390R 1 WCR 1206 390R 5% .125W R3
10 910639K 3 WCR 1206 39K 5% .125W R2, 11, 13
9 91068R2 5 WCR 1206 8R2 5% .125W R1, 20, 21. (691,70,71, (72) SEE NOTE
8 01051 1 VAR1STOR ZNR TYPE D ERZC07DK270 V1
7 26005 2 RIVSCREW (1712-35091
6 15085 1 CERAMIC RESONATOR 11MHz CERALOCK CSA 11.OMT XL1
5 15033 2 HEATSINK
4 07164 1 1C SOCKET (28 PIN) SKT1
3 07155 1 16 WAY HEADER PL2
2 07118 1 'D 'CONNECTOR 25 WAY PL1

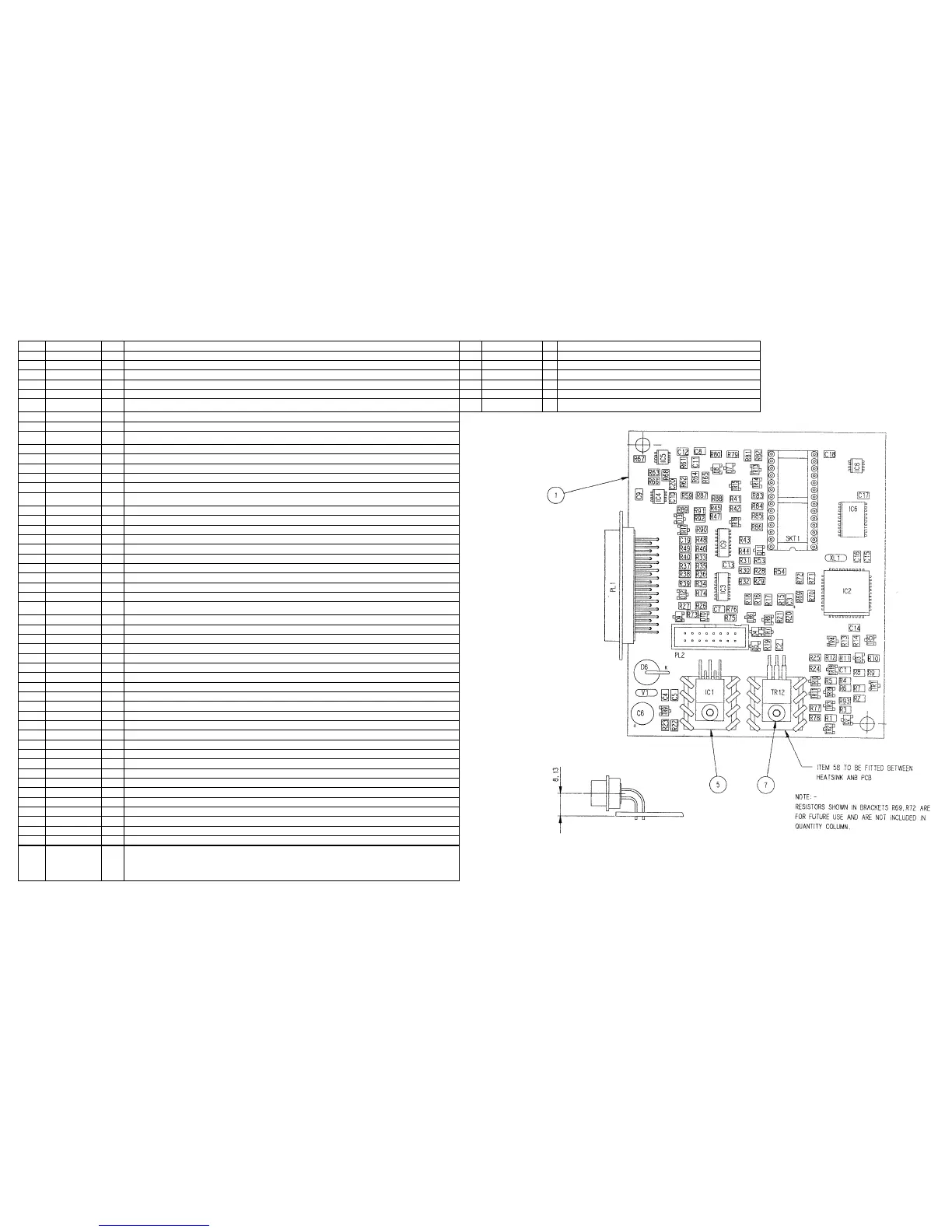

1 3015-030 1 7000 COMPUTER P.C.B DETAIL
ITEMS DR'G/PART N* QTY DESCRIPTION
