13
24 15057 3 RELAY T90 30A RL1, 2, 3
23 05019 4 TRANSISTOR PNP BC 327 T4, 5, 10, 11
22 05018 5 TRANSISTOR NPN BC 337 T1, 2, 3, 12, 13
21 03036 2 CAPACITOR TANTALUM 1µF±20% 25vmin C3, 20
20 03031 CAPACITOR ELECTROLYTIC 100% 525vmin C6
19 03023 CAPACITOR ELECTROLYTIC 1000µF 60vmin C5
18 03020 CAPACITOR CERAMIC 0.01µF ±20% 25vmin C2.4
17 03007 CAPACITOR CERAMIC 0.1µF ±20% 25vmin C1
16 02025 ZENER DIODE BZX 6 1C 15V D9
15 02004 DIODE IN 4148 D2, 3, 5, 6
14 02002 DIODE IN 4818 D8
13 01162 RESISTOR WIREWOUND 330R 2.5W+5% R12, 18
12 01140 RESISTOR C'FILM 120R 2.5W ±10% R2
11 01139 RESISTOR C'FILM 680R .5W ±5% R26
10 0112? 2 RESISTOR C'FILM 6K8 .25W +1% R14, 16
9 01083 5 RESISTOR C'FILM 3K9 .25W ±5% R3, 7, 9, 20, 22
8 01061 3 RESISTOR C'FILM 6K8 .25W ±5% R5, 6, 24
7 01055 1 RESISTOR C'FILM 270R .5W ±5% R15
6 01045 4 RESISTOR C'FILM 220R .25W ±5% R11, 13, 17, 19
5 01031 i RESISTOR C'FILM 560R .25W ±5% R1
4 L01006 4 RESISTOR C'FILM 5K6 .25W ±5% R8, 10, 21, 23
3 01003 2 RESISTOR C'FILM 1K .25W ±5% R4, 25
2 4021-028 1 POWER AMP. S'ASSY 1st STAGE
1 LJ402 1-024 1 LOOM S'ASSY
ITEMS DR'G/PART Ne QTY DESCRIPTION

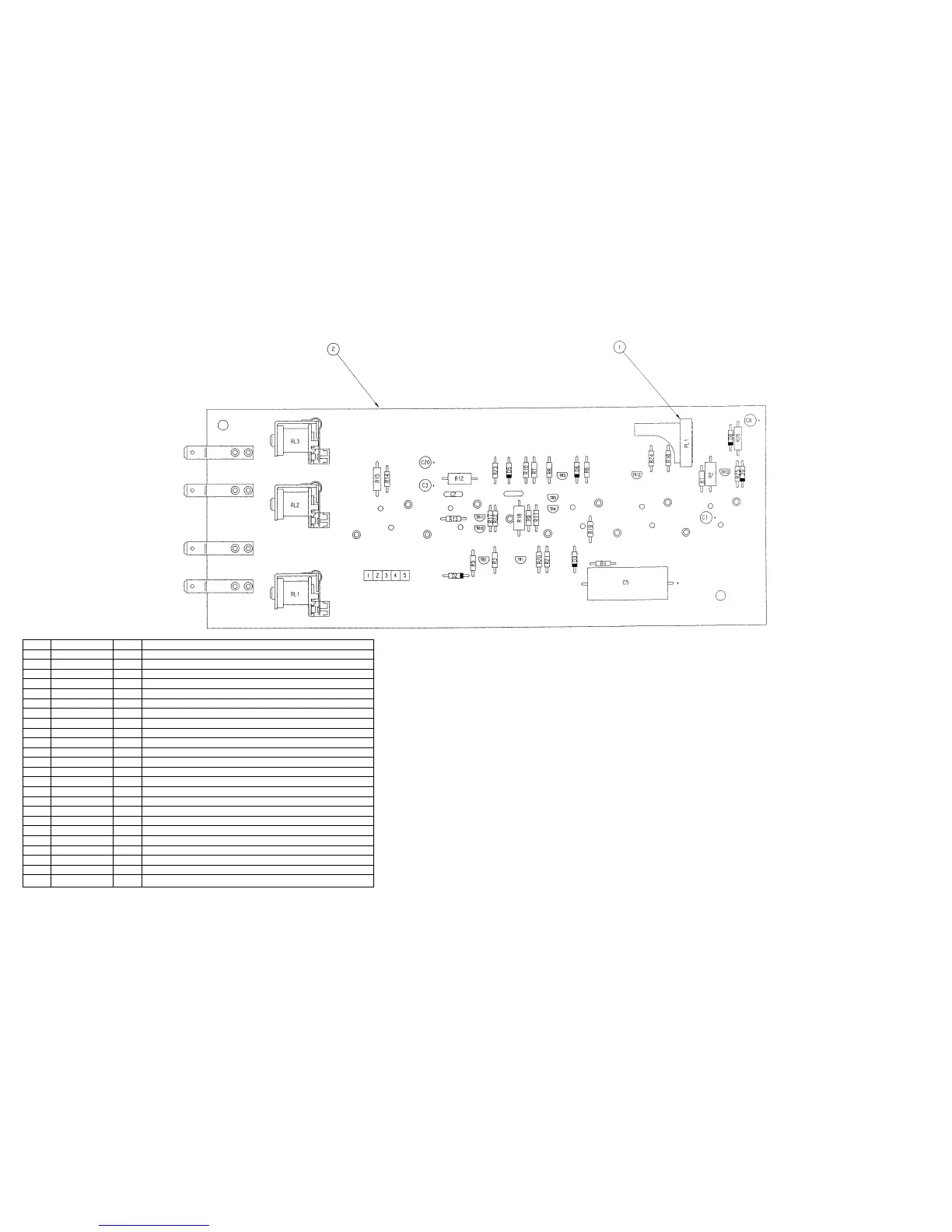

Fig. 5. Power Amplifier PCB Assembly/Parts List (Z084)
ISS B
