Raymarine ST70+ User Manual

2 ST70+ User Reference Manual
Other buttons and their functions depend on the keypad type.

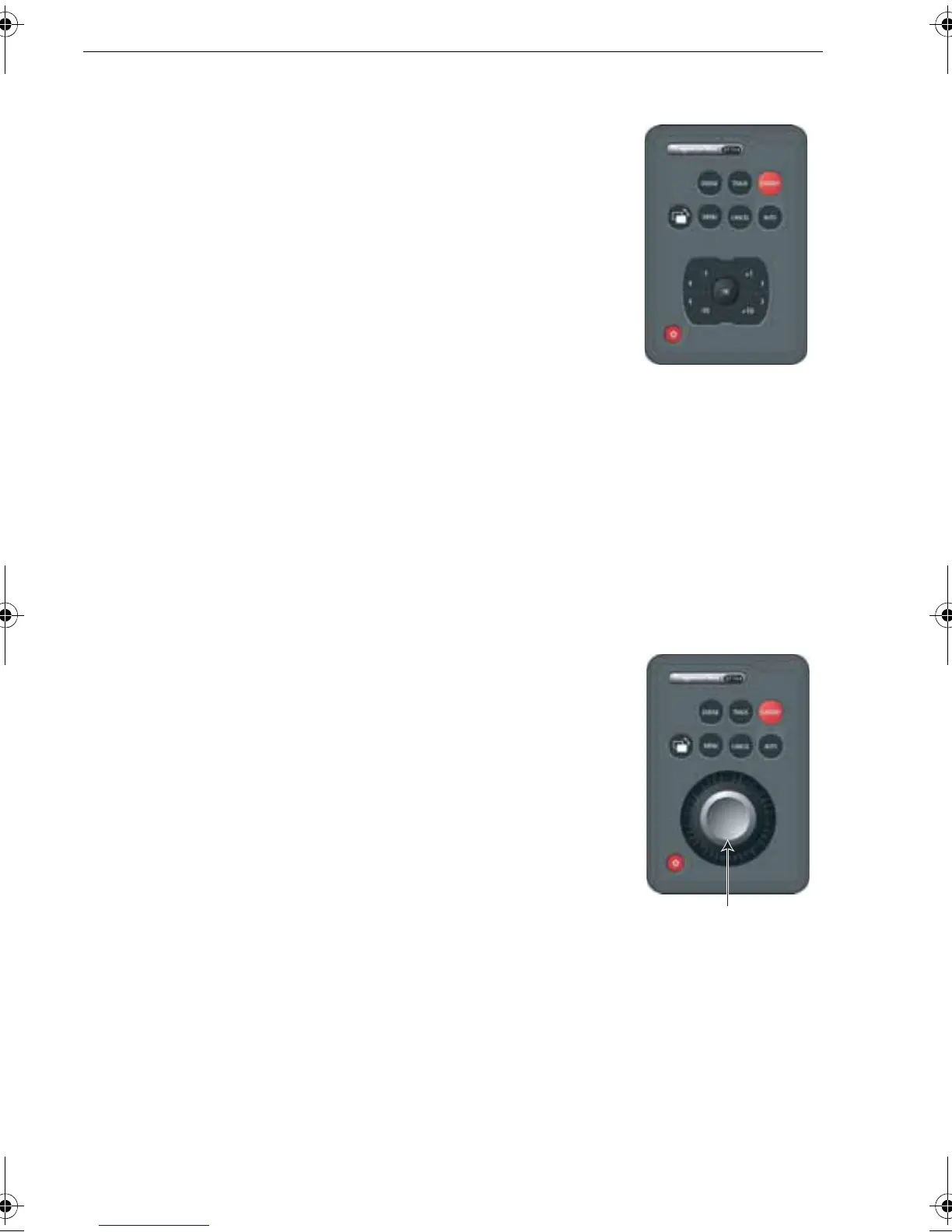

Sail boat Pilot Controller keypad
Sail boat Pilot Controller keypad buttons and functions are:
•
MENU button. Selects the Main Menu which gives access
to:
• Wind Vane mode.
• AutoTack Port and Starboard - Sail boats only.
• Setup and reset functions.
• Self test routines and diagnostic information.
• The displayed Pilot view - plain, 2D or 3D (hold down).
•
-1 and +1 buttons. Used to:
• Change course, when using the autopilot to steer the
boat. One degree to port or one degree to starboard, respectively.
• Scroll to different menu options and change setup values, when setting up.
•
-10 and +10 buttons. Used to change course, when using the autopilot to steer the
boat. Ten degrees to port or ten degrees to starboard, respectively.
• OK button. used to confirm setup actions and values.
•
AUTO button. Engages autopilot control.
•
STANDBY button. Returns to manual control.
•
TRACK button. Engages Track mode.
•
DODGE button. Interrupts autopilot control to enable you to steer around obsta-
cles on your plotted course.
Power boat Pilot Controller keypad
Power boat Pilot Controller keypad buttons and functions are:
•
MENU button. Selects the Main Menu which gives access
to:
• Fishing pattern selection.
• Power steering.
• Setup and reset functions.
• Self test routines and diagnostic information.
• The displayed Pilot view - plain, 2D or 3D (hold down).
•
Rotary Control :
• Rotate to change course, when using the autopilot to
steer the boat. Clockwise changes course to star-
board, counter-clockwise, to port.
One click = one degree of course change, except when in Power Steer mode.
• Press in to perform an ‘
OK ’ function, i.e. to confirm setup actions and values.
• Rotate to scroll to different menu options and change setup values.
•
AUTO button. Engages autopilot control.
•
STANDBY button. Returns to manual control.
•
TRACK button. Engages Track mode.
•
DODGE button. Interrupts autopilot control to enable you to steer around obsta-
cles on your plotted course.
D11402-1
D11403-1
Rotary Control.
Press in to OK setup
values & selections
85024_1.book Page 2 Tuesday, January 27, 2009 11:31 AM

Raymarine ST70+ Specifications

General

Display Type	LCD
Waterproof	Yes
Waterproof Rating	IPX6
Interface	NMEA 2000
Power Supply	12V DC
Backlighting	Yes
Network	NMEA 2000
Input Voltage	10-32V DC
Dimensions	110mm
