Chapter 1: General information 3
Instrument keypad
Instrument keypad buttons and functions are:
•
MENU button. Selects the Main Menu which provides
access to:
• Setup and reset functions.
• Self test routines and diagnostic information.
•
PAGE UP & PAGE DN buttons:
• Scroll to different operating pages.
• Select choices on setup screens.
•
Rotary Control :
• Press in to perform an ‘ OK ’ function, i.e. to confirm
setup actions and values.
• Rotate to scroll to different menu options and change
setup values.
Keypad shortcuts
Keypad shortcuts are available to access some functions. These are detailed in the
following table.
Function Conditions Simultaneously press
Initiate Power Steering
mode
Available from Pilot Controller key-
pad on power boat, when autopilot
is in Standby or Auto mode
AUTO and STANDBY
(press and release)
Initiate Vane mode Available from Pilot Controller key-
pad on sail boat, when autopilot is
in Standby or Auto mode
AUTO and STANDBY
(press and release)
Initiate tack to starboard Available from sail boat Pilot Con-
troller keypad, when autopilot is in
Auto mode
+1 and +10
(press and release)
Initiate tack to port Available from sail boat Pilot Con-
troller keypad, when autopilot is in
Auto mode
-1 and -10
(press and release)
Access heading response
page
Available from any Pilot Controller
keypad
MENU and CANCEL
(press and release)
Access rudder response
page
Available from Pilot Controller key-
pad on sail boat
+1 and -1
(press and release)
Access rudder gain page Available from Pilot Controller key-
pad on sail boat
+1 and -1
(hold down for 3 s)
Start Setup wizard Available from any keypad Select Display and
MENU
(hold down for 3 s)

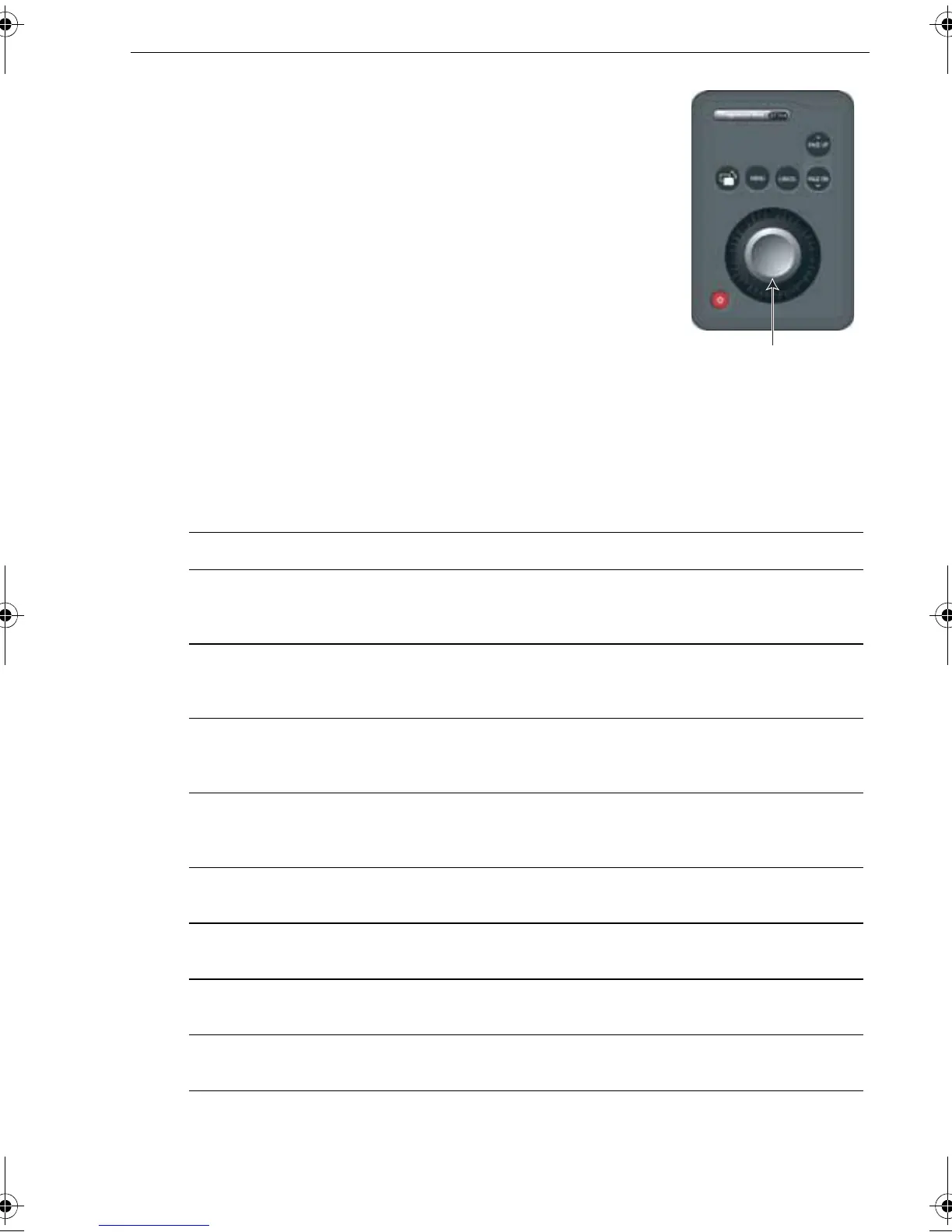

D11404-1
Rotary Control.
Press in to OK setup
values & selections
85024_1.book Page 3 Tuesday, January 27, 2009 11:31 AM

Raymarine ST70+ Specifications

General

Display Type	LCD
Waterproof	Yes
Waterproof Rating	IPX6
Interface	NMEA 2000
Power Supply	12V DC
Backlighting	Yes
Network	NMEA 2000
Input Voltage	10-32V DC
Dimensions	110mm
