Raymarine ST70+ User Manual

Chapter 4: Maintenance & Troubleshooting 65
Using the display self-monitoring features
ST70+ displays have self-monitoring features which you should use whenever
possible before seeking technical assistance. These features are:
• About display
• About pilot. Only available on displays set up as Pilot Controllers.
About Display
The About Display function provides information about the display on which it is run.
To run the About Display function:
1. With the display switched on, press MENU to
display the Main Menu , then scroll to select the
Diagnostics option.
2. Press OK to display the Diagnostics menu.
3. With the Diagnostics menu displayed, scroll to
select the
About display option, then press OK ,
to display the About display page. This shows:
• Software Version Number
• Hardware Version Number
• Bootloader Version Number
• Temperature
•Voltage
• Peak voltage
• Current
• Peak current
• Total hours run
4. Note that:
•
Temperature should be in the range -30°C
to +70
°C
• Volts should be in the range 9 V to 16 V
•
Peak Volts should be in the range 9 V to
16 V
•
Current and Peak Current should be not
greater than 220 mA
5. Make a note of any data you need then press
OK: .
• If there is no more data to be displayed, the display shows the
Diagnostics
menu.
• If there is more data to be displayed, the next page of
About Pilot data is dis-
played. Repeat step 5 until the display shows the
Diagnostics menu.
If the display is set as an Instrument, this completes the self-monitoring checks.

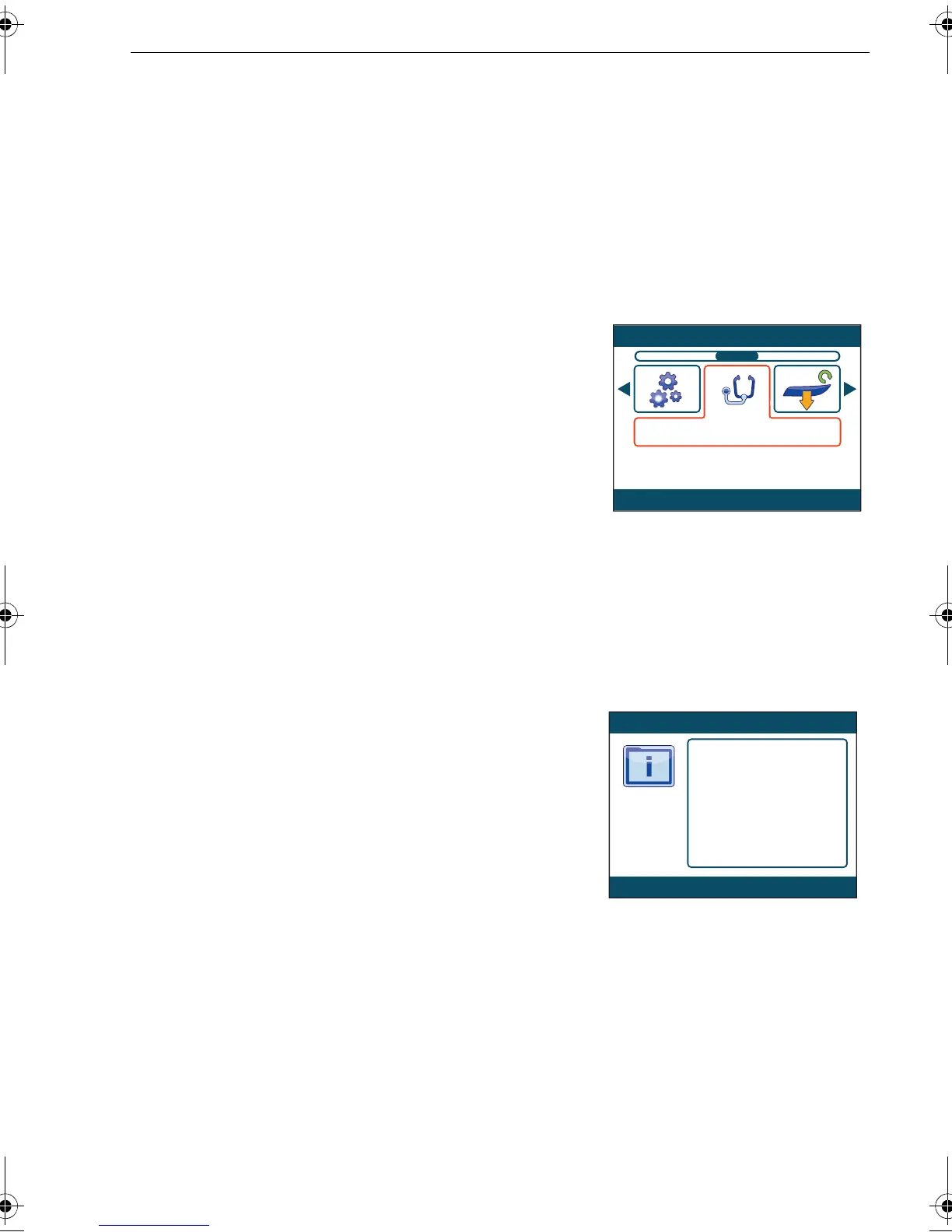

D11344-1
Main Menu
Diagnostics
Press OK to select
D11345-1
Press OK to continue
About Display
Run Time
Software Ver.
Bootloader Ver.
Hardware Ver.
Temperature
Volts
Max. Volts
Current
Max. Current
V0.20
V2.00
V0.10
35.20 C
12.16 V
17.8 V
180 mA
195 mA
125.75
