Chapter 2: Commissioning Procedures 21
Dockside wizard
Starting the wizard
At a convenient Pilot Controller:
1. Press
MENU
to display the
Main Menu
.
2. Scroll to
Autopilot calibration
then press
OK
to display the
Autopilot Autocalibra-
tion
menu.
3. Scroll to select
Commissioning
then press
OK
to display the
Commissioning
menu.
4. Scroll to
Dockside wizard
then press
OK
to start
the wizard. The
Dockside Calibration
page is
displayed.
Set drive type
With the
Dockside calibration
page displayed at the
selected Pilot Controller, press
OK
on the
associated keypad to display the
Drive type
page
then:.
1. Scroll to select the autopilot drive type appropri-
ate to your boat.The options available depend
on the type of autopilot, but options supported
are:
Note: If your drive type is not included, seek advice from your Raymarine dealer.
2. Press OK to save your setting and display the next setup page. This is either:
• The
Rudder check
(center) page, if the boat has a rudder reference transducer,
or
• The
Motor phasing non-referenced
page, if a rudder reference transducer is
not fitted.
3. Press
OK
to proceed with the Rudder and motor checks. Use the procedure for
either Systems with a Rudder Reference transducer or Systems without a Rudder
Reference transducer, as appropriate.
Type 1 Linear Jet Drive (fly-by-wire)
Type 2 Linear Wheel Drive
Type 2 Hydraulic Linear Tiller Hydraulic Pump Type 1
Type 3 Hydraulic Linear CR Solenoid Hydraulic Pump Type 2
I/O Stern Sport Drive Hydraulic Pump Type 3
IPS Rotary Drive Type1 Constant Running Pump
Jet Drive (pump) Rotary Drive Type 2 Verado

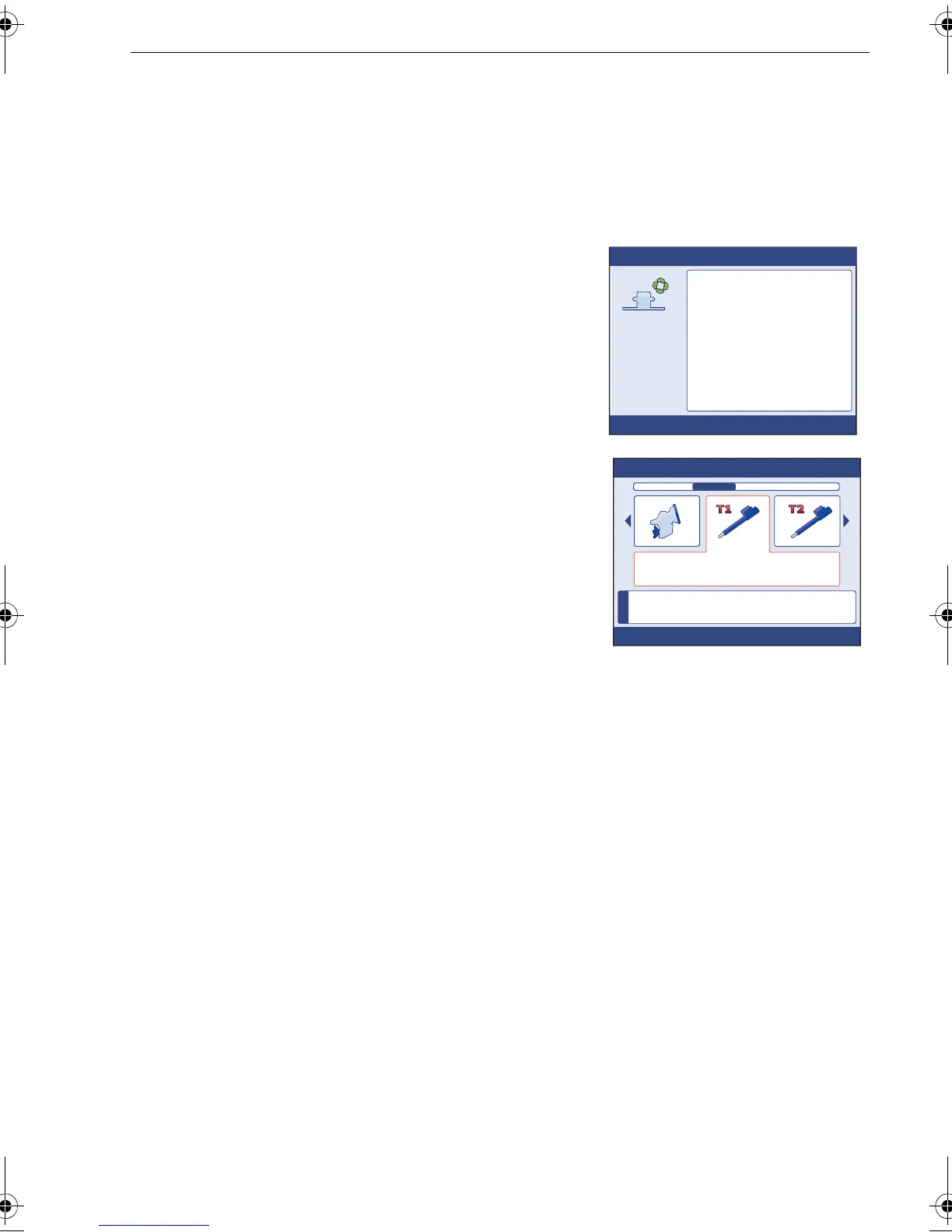

D11164-1
Press OK to continue
Dockside Calibration
Before you can use your
autopilot you need to do
some dockside checks.
Press CANCEL to exit
without saving.
i
D11165-1
Drive Type
Type 1 Linear
CANCEL returns to the previous page.
Press OK to select
85024_1.book Page 21 Tuesday, January 27, 2009 11:31 AM
