Machine level

Front to back: Within 3 mm (0.12") of level

Right to left: Within 3 mm (0.12") of level

Machine Space Requirements

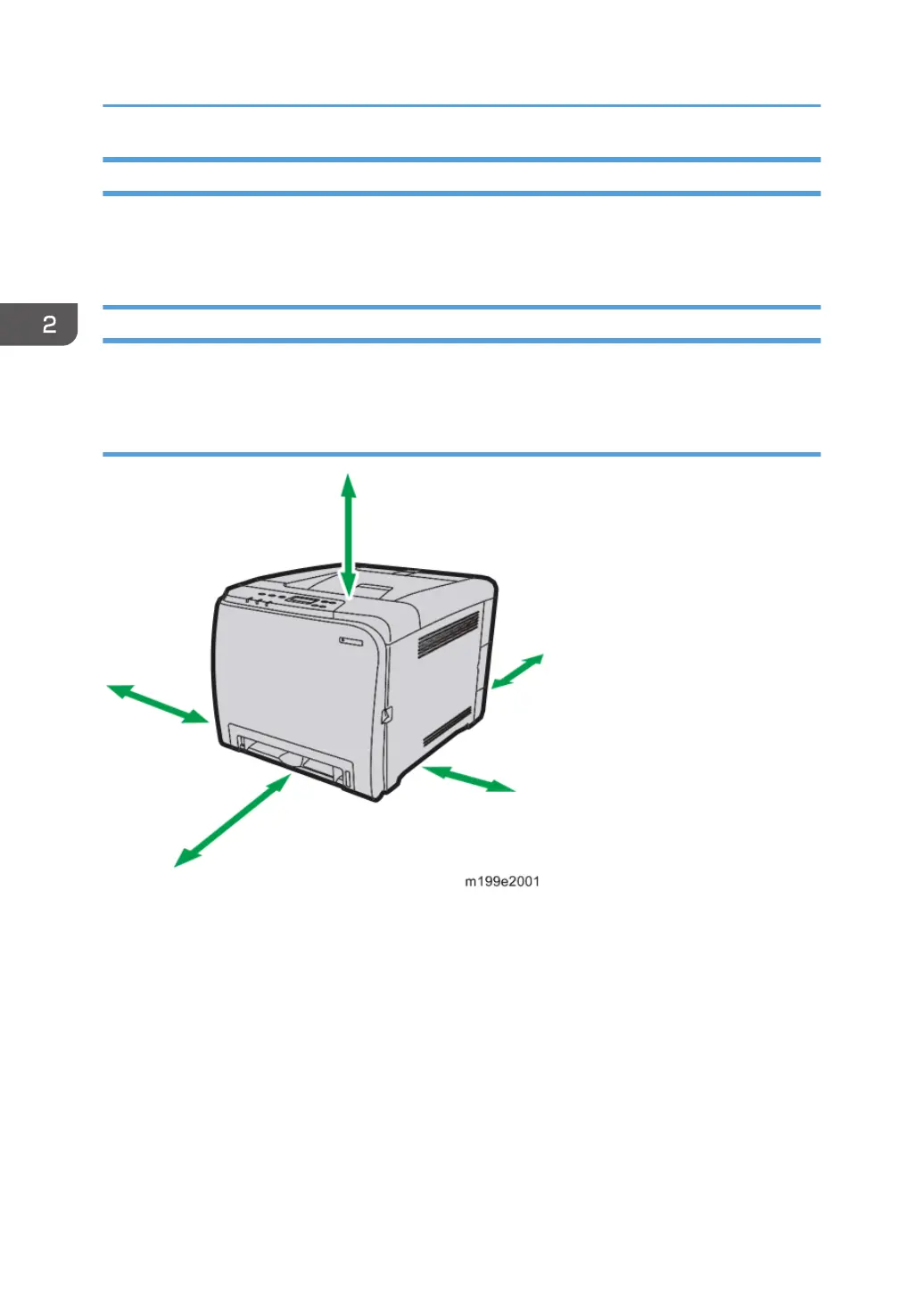

Put the machine near the power source with these clearances:

Printer Models (M199/M200)

Left side: Over 20 cm (7.9")

Rear: Over 10 cm (4")

Right side: Over 10 cm (4")

Front: Over 70 cm (27.6")

Top: Over 33 cm (13")
