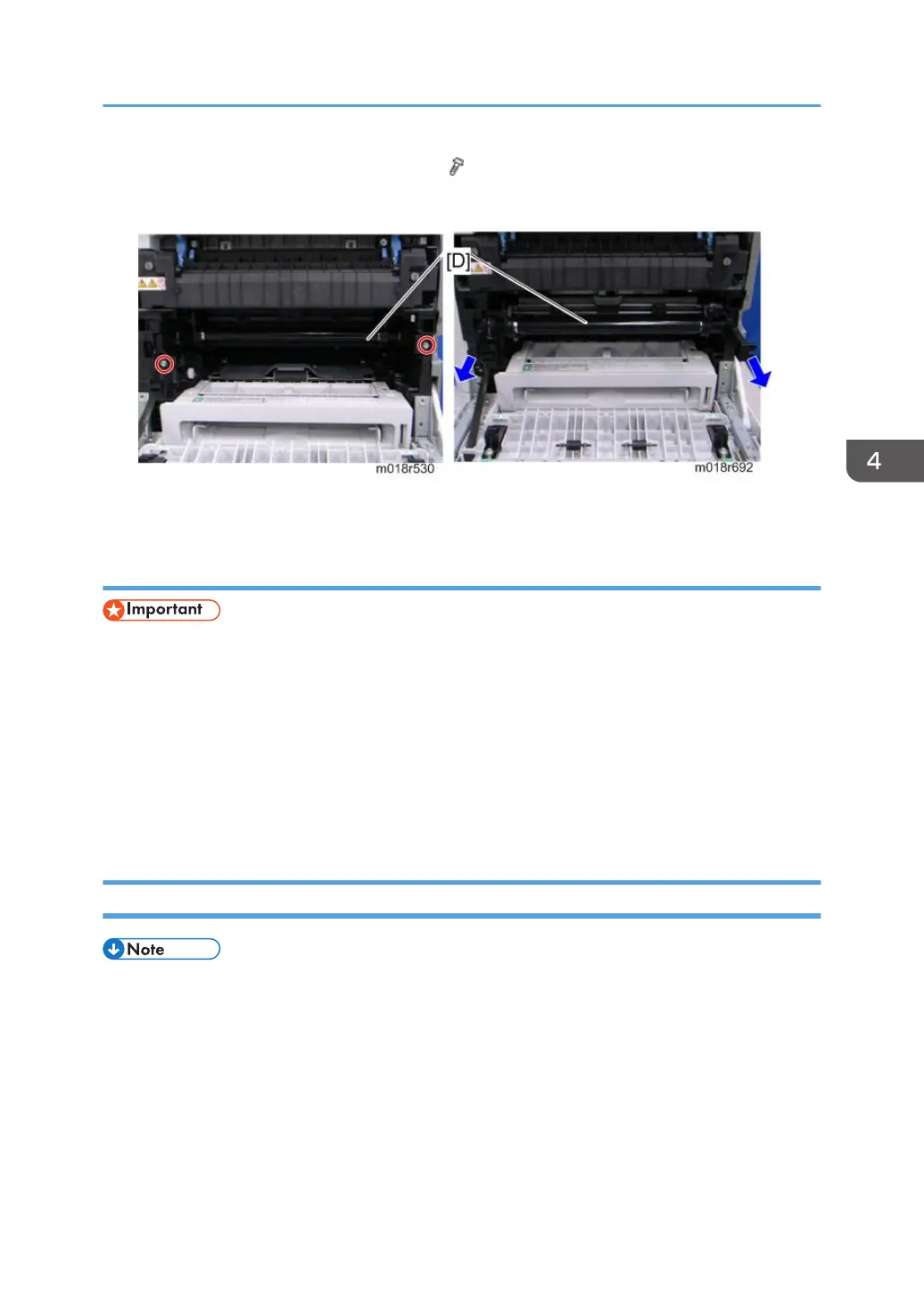

6. Pull out the image transfer belt unit [D]. ( × 2)
After replacing the image transfer belt unit
• Do the following step 2 with the front cover of the machine open.
1. Open the front cover and turn on the machine.
2. Execute "Reset Transfer Unit” with the "Engine Maintenance" menu.
3. Close the front cover.
4. Execute "Trans. Belt Adjust" with the "Engine Maintenance" menu.
5. Adjust the registration settings for each tray and for the front and rear sides of the paper
with the "Engine Maintenance" menu if necessary.
ITB (Image Transfer Belt) Cleaning Unit
• The ITB cleaning unit contains waste toner. When removing the ITB cleaning unit, put it on a sheet
of paper.
1. Image transfer belt unit (page 68 "Image Transfer Belt Unit")
2. Left handle [A] (hook, bushing × 1)
Image Transfer
69
