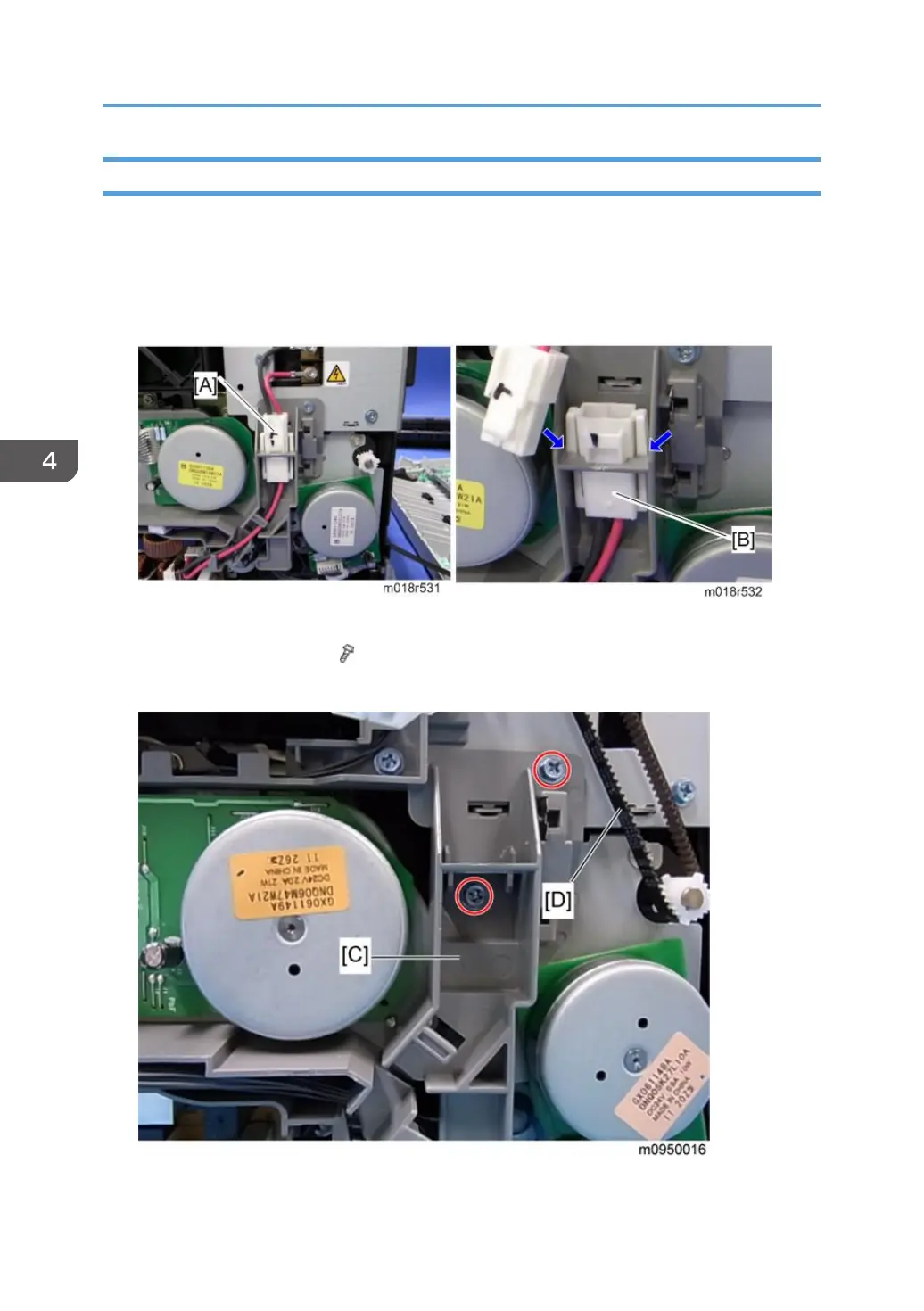

Transport/Fusing Motor
1.
Rear cover (
page 32 "Rear Cover"
)
2.
Left cover (
page 35 "Left Cover"
)
3.
Disconnect the fusing connector [A] and remove the fusing relay harness [B] (2 hooks).
4.
Fusing harness guide [C] (
× 2)
5.
Duplex timing belt [D]
4. Replacement and Adjustment
90
91
93
