Ricoh SP 310DN User Manual

Paper Feed
SM 4-21 M154/M155/M174/M175/A0A7/M287/M0BB
Replacement
and Adjustment
4.5.10 REGISTRATION ROLLER
1. Pull out the paper tray.
2. AIO
3. Top Cover (page 4-10 "Top Cover")
4. Fusing Unit (page 4-28 "Fusing Unit")
5. PSU / HVP unit (page 4-42 "PSU")
6. By-pass lower guide plate (page 4-17 "By-pass Feed Roller")
7. Paper feed clutch (page 4-19 "Paper Feed Clutch")
8. Relay clutch (page 4-20 "Relay Clutch")
9. Registration clutch (page 4-20 "Registration Clutch")

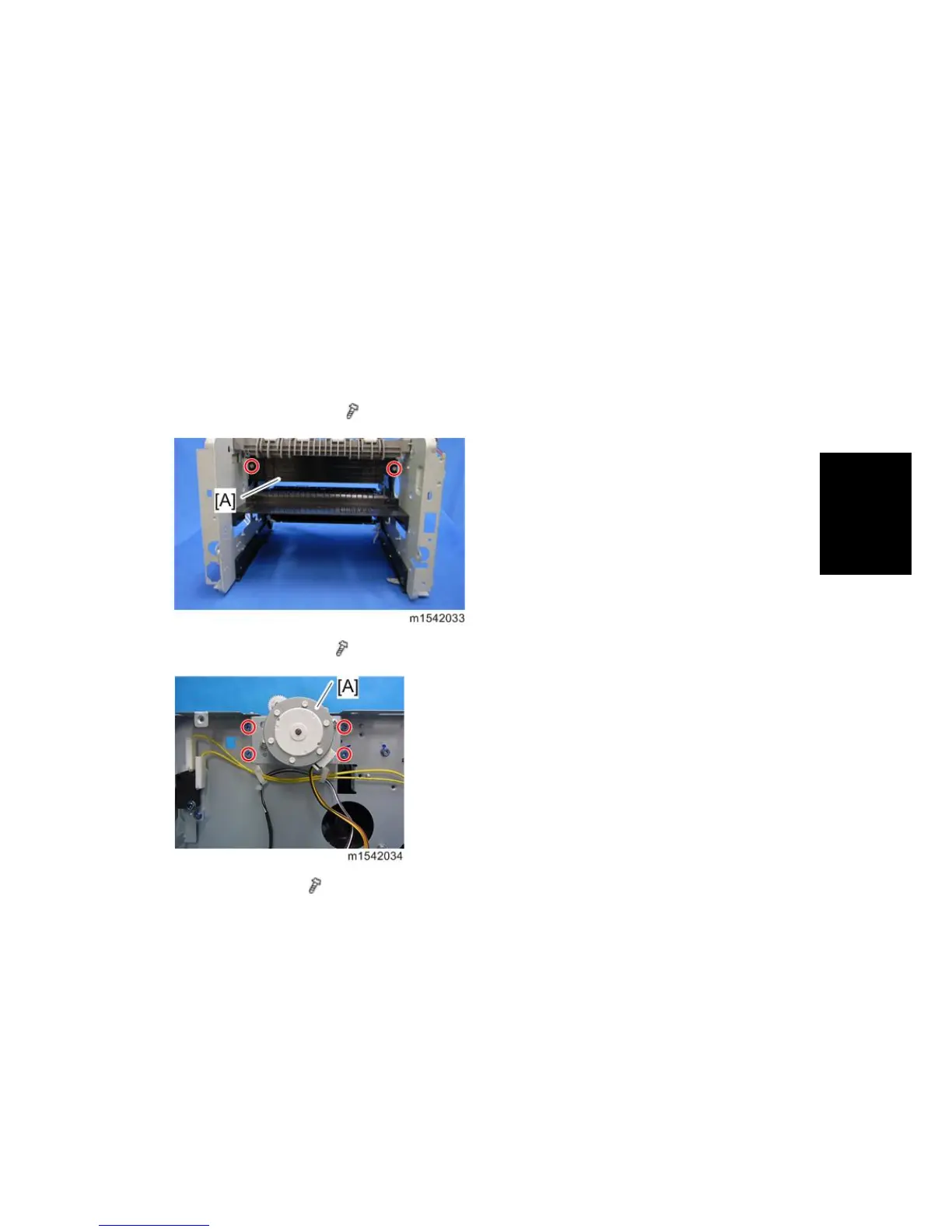

10. Heat insulating plate [A] (
x 2)
11. Duplex motor base [A] (
x 4)
12. Exit roller base [A] (
x 2,4 tabs)
