4.6 IMAGE TRANSFER
4.6.1 TRANSFER ROLLER
1. Front cover (page 4-3 "Front Cover")
2. AIO

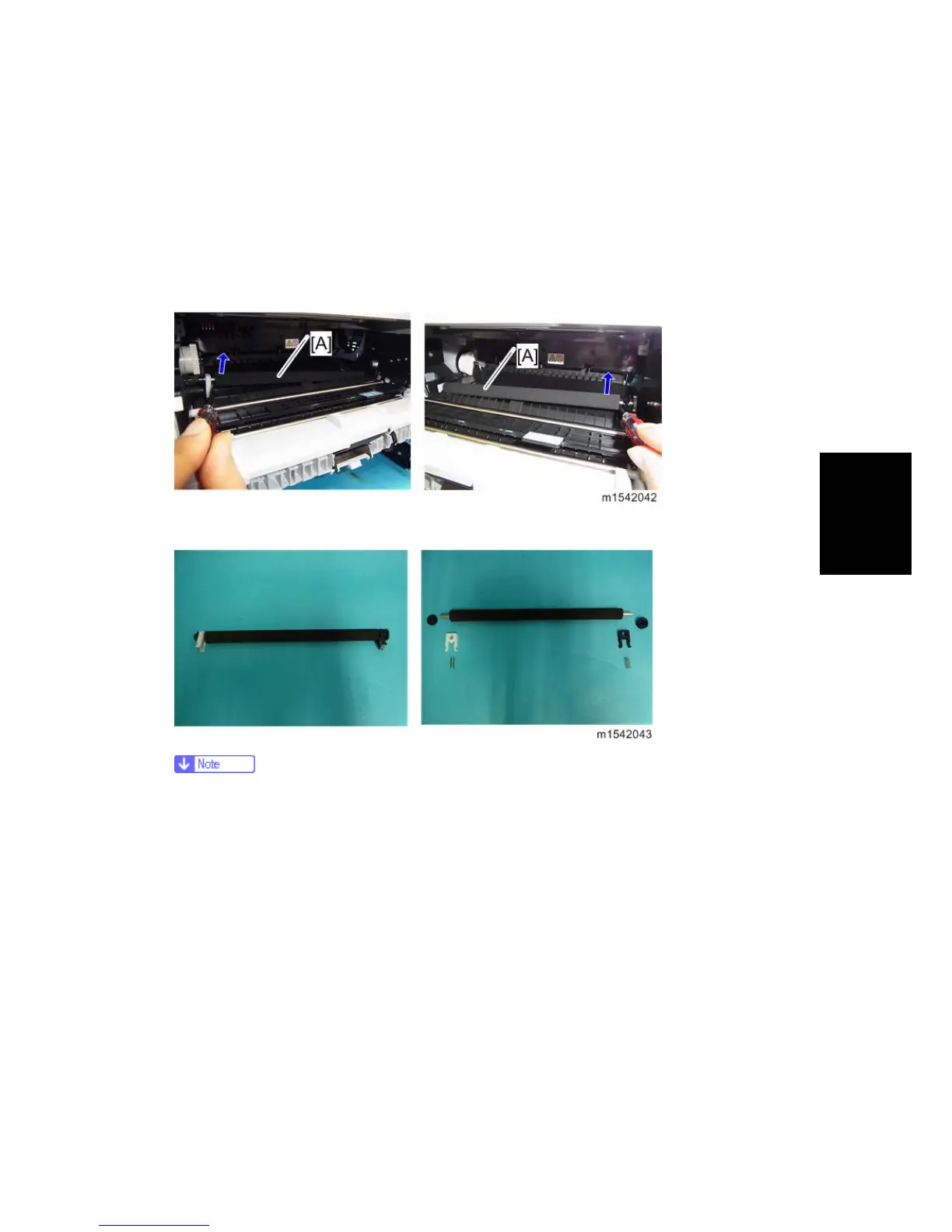

3. Remove the transfer roller [A] as shown below.
4. Remove the bushing x 2, spring x 2, gear x 1, collar x 1 from the transfer roller.
 Do not touch the transfer roller surface when reinstalling the new transfer roller.
After installing a new transfer roller
1. Enter the "Printer Configuration" in SOM.
2. Select the "SP Mode 3" tab.
3. Click "Clear Transfer Roller EM Counter" and then click "OK".
4. Exit the SOM.
