FA ROTEX HPSU compact (V5) • 
4 x Set-up and installation
4.1 Dimensions and connections
4.1.1 ROTEX HPSU compact 304/308
1 Solar - feed
2 Cold water
3 Hot water
4 Heating feed
5 Heating return flow
6 Connection coolant gas line
7 Connection coolant fluid line
8 Solar - feed (only type …Biv)
9 Solar - return flow (only type …Biv)
A Front
BBack

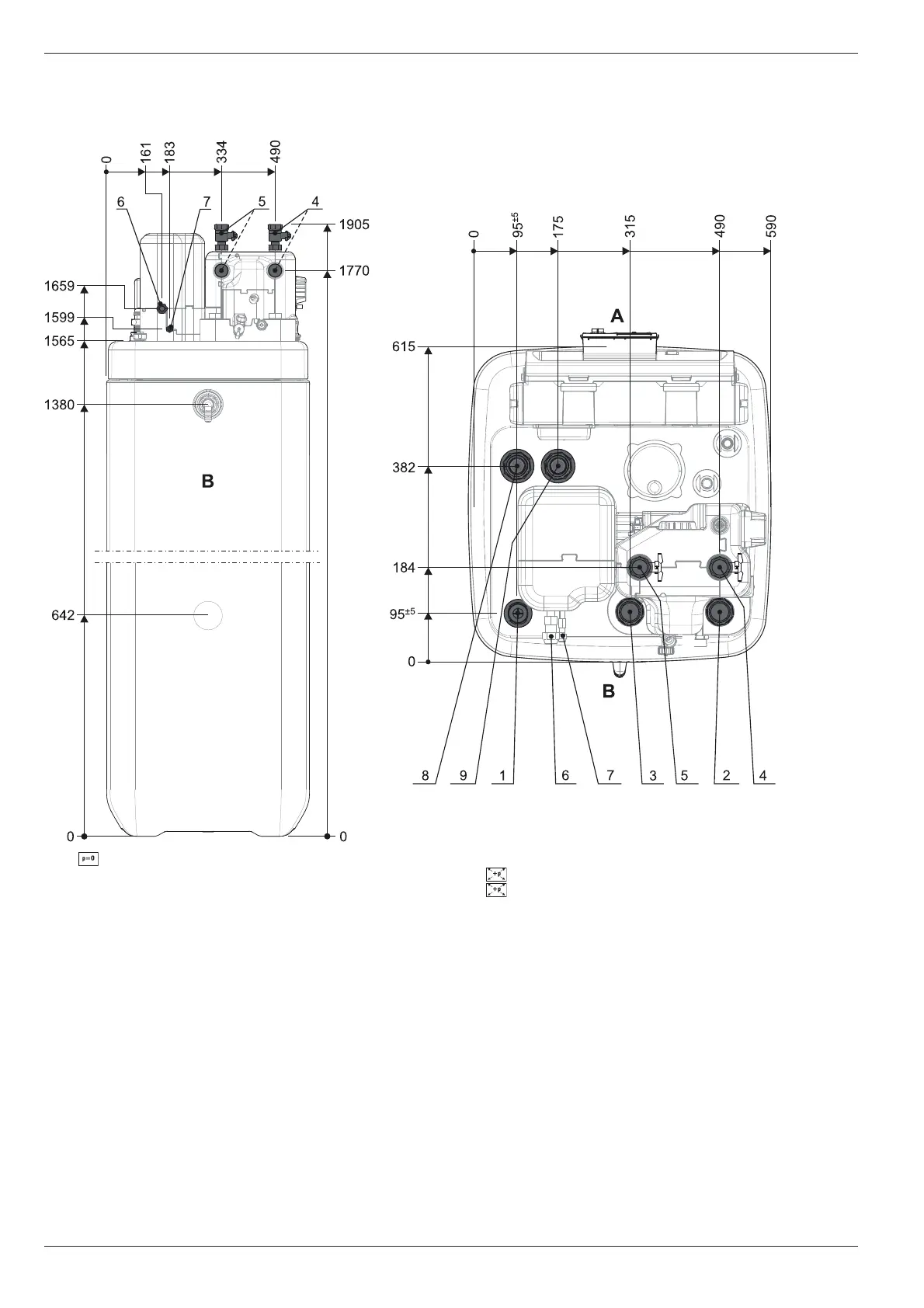

Fig. 4-1 Connections and dimensions ROTEX HPSU
compact 304/308 (in general)
