5.1.3 Set the commissioning parameters
To set the commissioning parameters, the heating expert must
be logged into the controller.
Ɣ Technician login
Ɣ Se
t required commissioning parameters. Here the supplied
"Commissioning Checklist" is to be observed and completed.
– Fo
r clarification of the operating parameters, see
Operating Manual of the Control Unit.
– Enter configuration values into the corresponding tables
in the "Notes" chapter of the Operating Manual for the
Control Unit.
Ɣ Activa
te Legionella protection ([Anti-Legionella day]
parameter) if required.
Ɣ With conn
ected external temperature RoCon OT1, set the
parameter [Outside Config] to "On".
Ɣ Config
ure additional commissioning parameters depending
on the system requirements for the control unit of the
ROTEX HPSU compact.
5.1.4 Venting the hydraulics

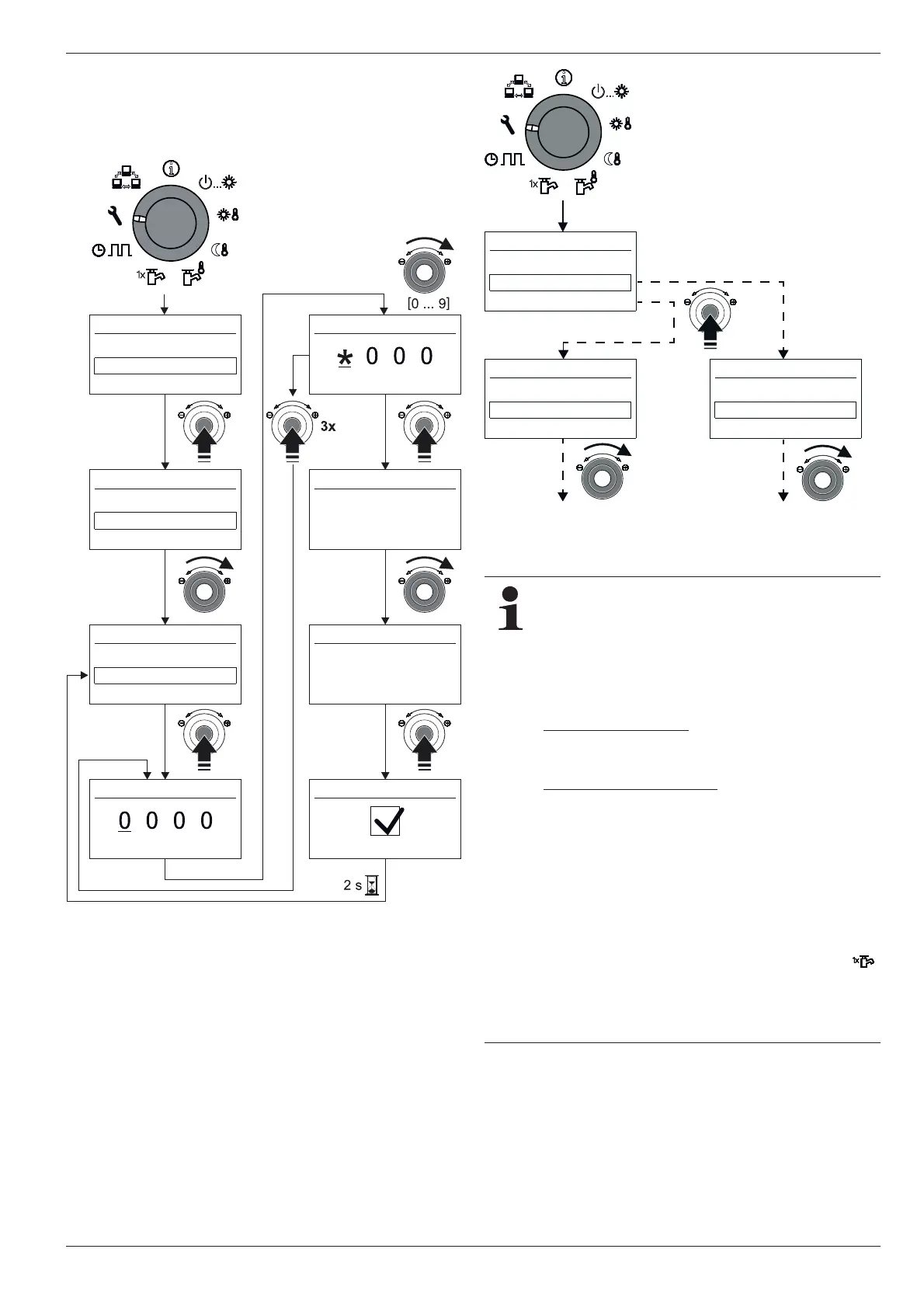

Fig. 5-1 Enter technician code
Configuration
Setup
System
Access Rights
User
Access Rights
Expert
Setup
Language
Date
Setup
Keylock Function
Access Rights
Outdoor type
Access Rights Access Rights
Access Rights
Fig. 5-2 Setting the commissioning parameters
If the storage temperature falls below a certain
minimum value, the safety settings of the ROTEX
HPSU compact prevent the operation of the heat pump
in the case of low external temperatures:
– Extern
al temperature < -2 °C, minimum storage
temperature = 30 °C
– External temperature < 12 °C, minimum storage
temperature = 23 °C.
Without Backup-heater:
The storage tank water must be heated to the minimum
required storage temperature by an external heater.
With Backup Heater (BUxx):
With an outdoor temperature < 12 °C and a storage
ta
nk temperature < 35 °C, the Backup Heater (BUxx) is
switched on automatically on in order to heat up the
storage tank water to at least 35 °C.
Ɣ In order to accelerate the heating process with
the back-up heater, temporarily
– Set parameter [F
unction Heating ] = "1" and
– Set parameter [Power DHW] to the maximum
value of the back-up heater.
– Switch the rotary switch
to operating mode
and set the parameter [1x Hot Water] to "On".
Following successful heating, reset the parame-
ters to "Off".
Configuration
Setup
System
System
Power DHW
BUH s1 power
Setup
Language
Date
