Schlage CO-Series Service Manual

CO-Series Service Manual
10

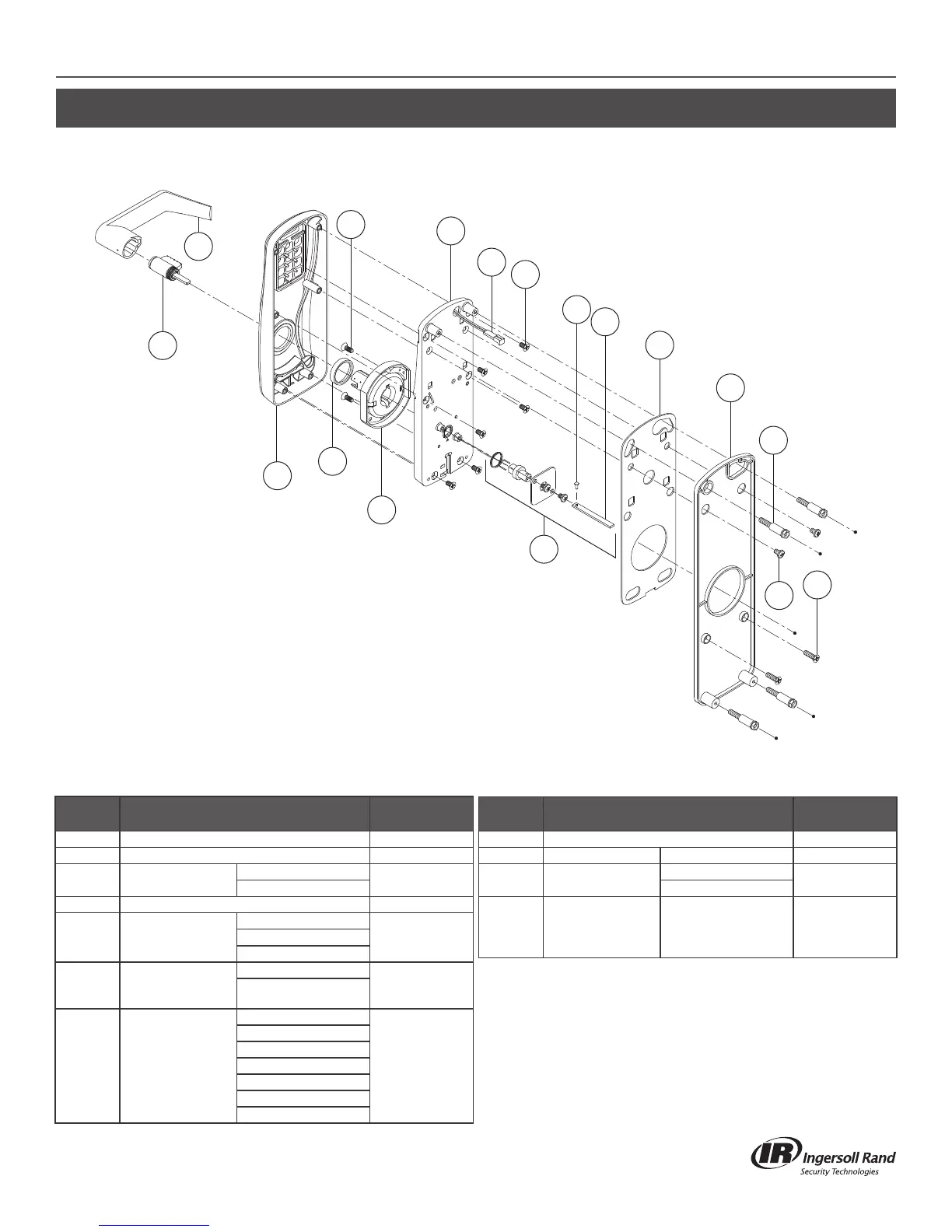

CO-100-993-S KEYPAD ONLY
Exterior
Number Description Part Number
8

*** Baseplate Subassembly, 993 See pg. 39
15* Cylinder See pg. 48
16 Gasket Kit, Outside
Gasket, Baseplate
46929162
Gasket, Reader
18* Lever, Outside See pg. 45
21
Spring Cage,
Outside
Spring Cage
See pg. 46Screws, Spring Cage
Gasket, O-Ring
31* Mounting Plate, 993
Mounting Plate
46929220
Screws, Mounting
Plate (2)
33
Spindle and Hub
Kit, 993
Tailpiece
46929295
Twisted Tailpiece
Clip, Tailpiece
Cover, Spindle, 993
Screw, Spindle Cover
Hub
Spring, Tailpiece, 993
Number Description Part Number
37
a
Baseplate Stand-Offs See pg. 41
39 Wiring Harness Classroom/Storeroom 23518392
41 Tailpiece Kit, 993
Tailpiece
46929303
Clip, Tailpiece
43*
†
Escutcheon,
Keypad Only, MS/
MD/993 (Assembly
& Screws)
CO-100 23599061
* Must specify Finish
*** This item only available as part of Exterior Escutcheon Assembly
a This item only available as part of Door Thickness Kit
† If using GD/BD Cylinder and Lever preparation, use part number
23599053
 Must specify Cylinder Type and Handing
18
15
21
43
21
21
43
8
16
31
31
31
37
33
41
41
39
