Schlage CO-Series Service Manual

CO-Series Service Manual
50

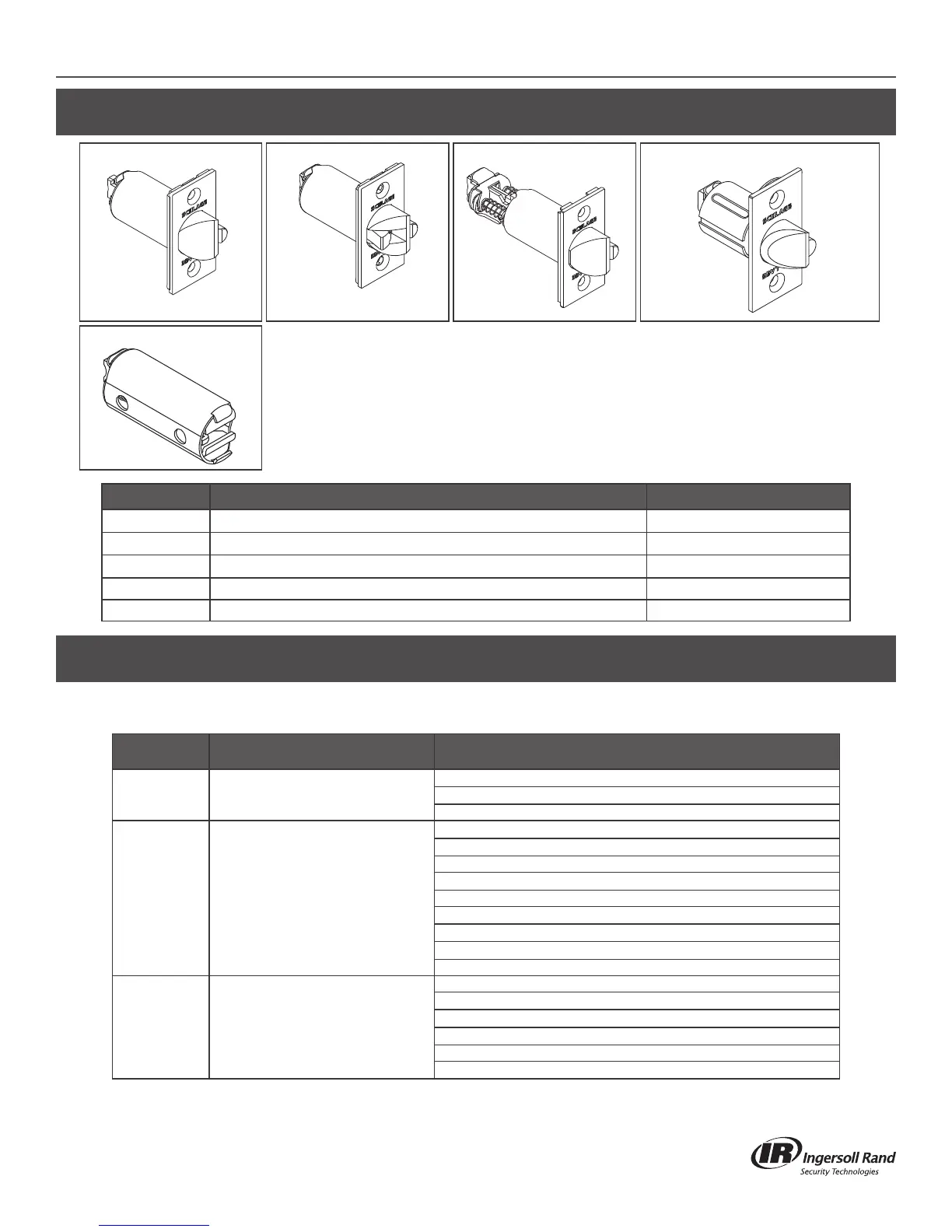

LATCHES
13-049 14-049 14-050 14-051
43-001
Backset Description Part Number
2³⁄₄"
¹⁄₂
" Size, Square Corner, Electrified Latch, 1¹⁄₈" x 2¹⁄₄"
13-049
2³⁄₄"
³⁄₄
" Size, Anti-Friction Fire Door Latch, 1¹⁄₈" x 2¹⁄₄"
14-049
3
³⁄₄"
¹⁄₂
" Size, Square Corner Latchbolt, 1¹⁄₈" x 2³⁄₄"
14-050
2³⁄₈"
¹⁄₂
" Size, Square Corner Latchbolt, 1¹⁄₈" x 2³⁄₄"
14-051
5"
¹⁄₂
" Latchbolt Bracket Extension
43-001
COVER SCREW PACKS
Torx
®
Screw Packs are used to replace standard screws to provide increased security. Standard screw packs shipped with
the product include only Phillips head screws.
Part Number Kit Description Contents
23631765* Tamper Torx Screw Pack, CY
(4) Flat Head Torx Screws, #8-32 (T-15), ¹⁄₂" length
(2) Flat Head Torx Screws, #12-24 (T-20),
¹⁄₂" length
(1) Torx Screw, #8-32 x 1" MS Pin
23631781* Tamper Torx Screw Pack, MS/MD
(2) Flat Head Torx Screws, #8-32 (T-15),
¹⁄₄" length
(2) Flat Head Torx Screws, #12-24 (T-20),
¹⁄₂" length
(1) Torx Screw, #8-32 x 1" MS Pin
(2) Oval Head Torx Screws, #10-24 x
³⁄₄"
(2) Oval Head Torx Screws, #10-24 x 1"
(2) Oval Head Torx Screws, #10-24 x 1
¹⁄₄"
(2) Oval Head Torx Screws, #10-24 x 1
¹⁄₂"
(2) Oval Head Torx Screws, #10-24 x 1
³⁄₄"
(2) Oval Head Torx Screws, #10-24 x 2"
23631799* Tamper Torx Screw Pack, 993
(2) Oval Head Torx Screws, #10-24 x 1"
(2) Oval Head Torx Screws, #10-24 x 1
¹⁄₄"
(2) Oval Head Torx Screws, #10-24 x 1
¹⁄₂"
(2) Oval Head Torx Screws, #10-24 x 1
³⁄₄"
(2) Oval Head Torx Screws, #10-24 x 2"
(2) Torx Screws, #8-32 x
³⁄₄" MS Pin
* Must specify Finish
