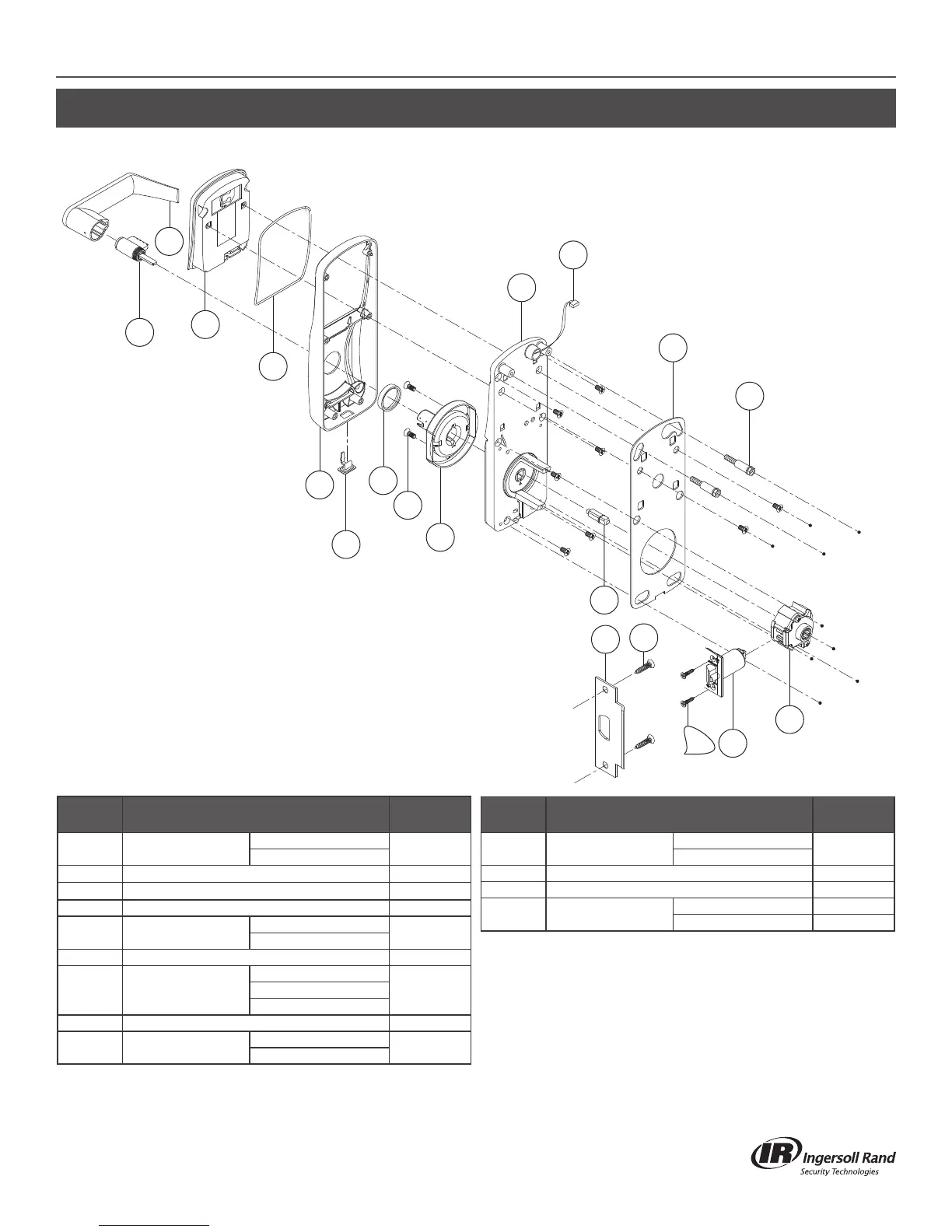

Schlage CO-Series - CO-200;250-CY, All Models Except Keypad Only

CO-Series Service Manual
26
CO-200/250-CY, ALL MODELS EXCEPT KEYPAD ONLY
Exterior
Number Description
Part
Number
3* Escutcheon CY
Escutcheon
23599038
Screws, Escutcheon
7

*** Baseplate Subassembly & Reader Module, CY See pg. 39
10 Latch Retractor 46928800
15* Cylinder See pg. 48
16 Gasket Kit, Outside
Gasket, Baseplate
46929154
Gasket, Reader
18* Lever, Outside See pg. 45
21 Spring Cage, Outside
Spring Cage
See pg. 46Screws, Spring Cage
Gasket, O-Ring
23** USB Cover (10 pcs.) 46928719
26* Strike, CY/MS/MD
Strike
See pg. 44
Screws, Strike
Number Description
Part
Number
30* Latch, CY
Latch,
See pg. 50
Screws, Latch
35
a
Spindle See pg. 41
37
a
Baseplate Stand-Offs See pg. 41
39 Wiring Harness
Classroom/Storeroom 23518392
Office/Privacy 23518384
* Must specify Finish
** For CO-200 Only
*** This item only available as part of Exterior Escutcheon Assembly
a This item only available as part of Door Thickness Kit
 Must specify Cylinder Type and Handing
18
3
16
21
16
39
7
7
37
26
26
10
30
30
21
35
21
23
15
CO-200 Shown Here
