Schlage CO-Series Service Manual

CO-Series Service Manual
28
CO-200/250-MS, ALL MODELS EXCEPT KEYPAD ONLY
Exterior
Number Description Part Number
5

***
Baseplate Subassembly & Reader Module,
MS
See pg. 39
10
Lock Case, Narrow, 1
¹⁄₁₆" wide
46928818
Lock Case, 1
¹⁄₄" wide
46928826
11*
†
Escutcheon, MS/
MD/993 (Assembly
& Screws)
Escutcheon
23599046
Screws, Escutcheon
15* Cylinder See pg. 48
16 Gasket Kit, Outside
Gasket, Baseplate
46929162
Gasket, Reader
18* Lever, Outside See pg. 45
21
Spring Cage,
Outside
Spring Cage
See pg. 46Screws, Spring Cage
Gasket, O-Ring
23** USB Cover (10 pcs.) 46928719
Number Description Part Number
26* Strike
Strike
See pg. 44
Screws, Strike
27*
Armor Front, MS/
MD
Armor Front
See pg. 44
Screws, Armor Front
35
a
Spindle See pg. 41
36
a
Stand-Offs, MS/MD See pg. 41
37
a
Baseplate Stand-Offs See pg. 41
39 Wiring Harness Classroom/Storeroom 23518392
* Must specify Finish
** For CO-200 Only
*** This item only available as part of Exterior Escutcheon Assembly
a This item only available as part of Door Thickness Kit
† If using GD/BD Cylinder and Lever preparation, use part number
23599038
 Must specify Cylinder Type and Handing
18
16
11
16
5
5
37
21
36
35
21
21
23
27
27
10
15
26
26
39

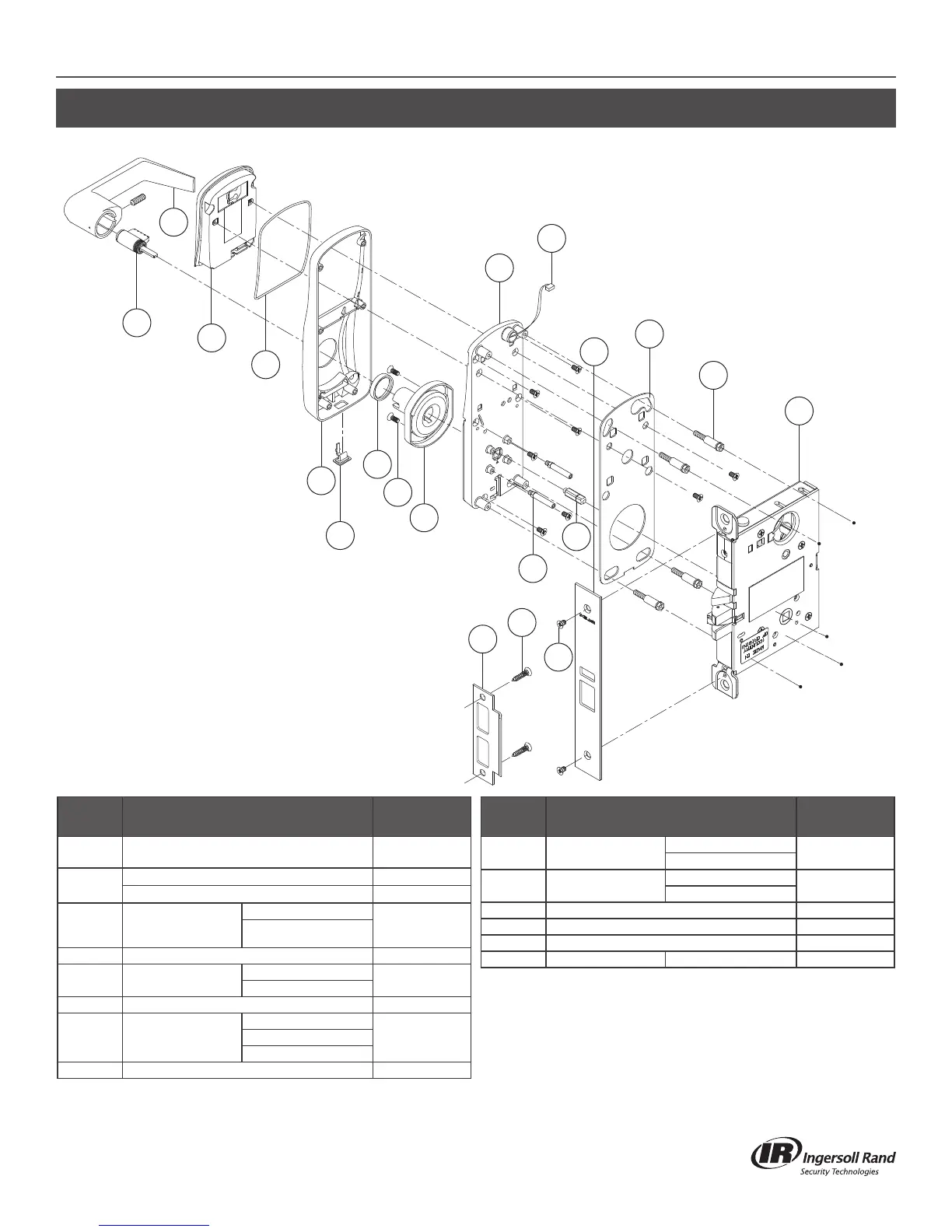

CO-200 Shown Here
