CO-Series Service Manual
38

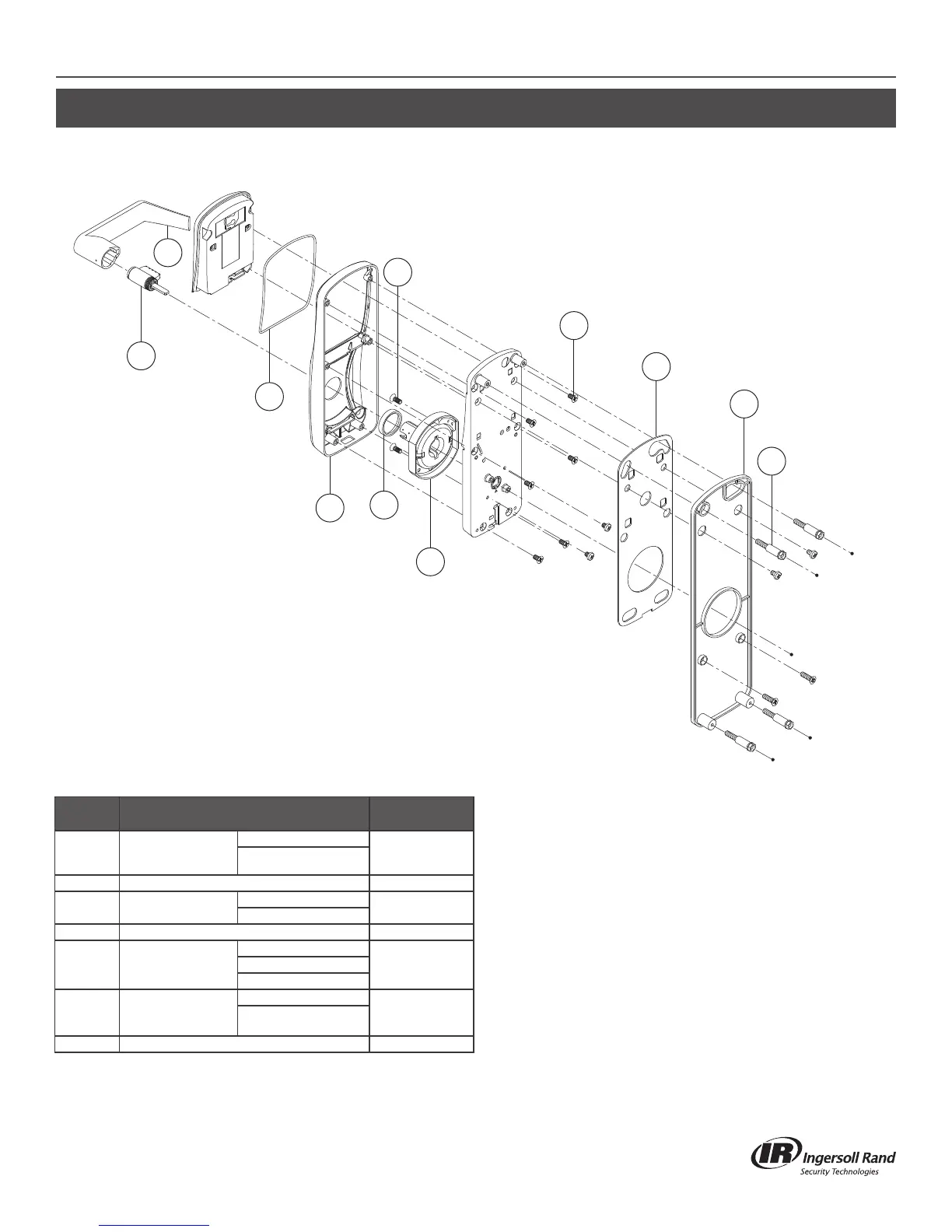

CO-993-DT
Exterior
18
15
16
3
21
21
21
3
16
31
37
Number Description Part Number
3*
†
Escutcheon, MS/
MD/993 (Assembly
& Screws)
Escutcheon
23599046
Screws, Escutcheon
15* Cylinder See pg. 48
16 Gasket Kit, Outside
Gasket, Baseplate
46929154
Gasket, Reader
18* Lever, Outside See pg. 45
21
Spring Cage,
Outside
Spring Cage
See pg. 46Screws, Spring Cage
Gasket, O-Ring
31* Mounting Plate, 993
Mounting Plate
46929220
Screws, Mounting
Plate (2)
37
a
Baseplate Stand-Offs See pg. 41
* Must specify Finish
a This item only available as part of Door Thickness Kit
† If using GD/BD Cylinder and Lever preparation, use part number
23599038
CO-200 Shown Here
