Schlage CO-Series - CO-100-993-S Keypad Only

CO-Series Service Manual
11

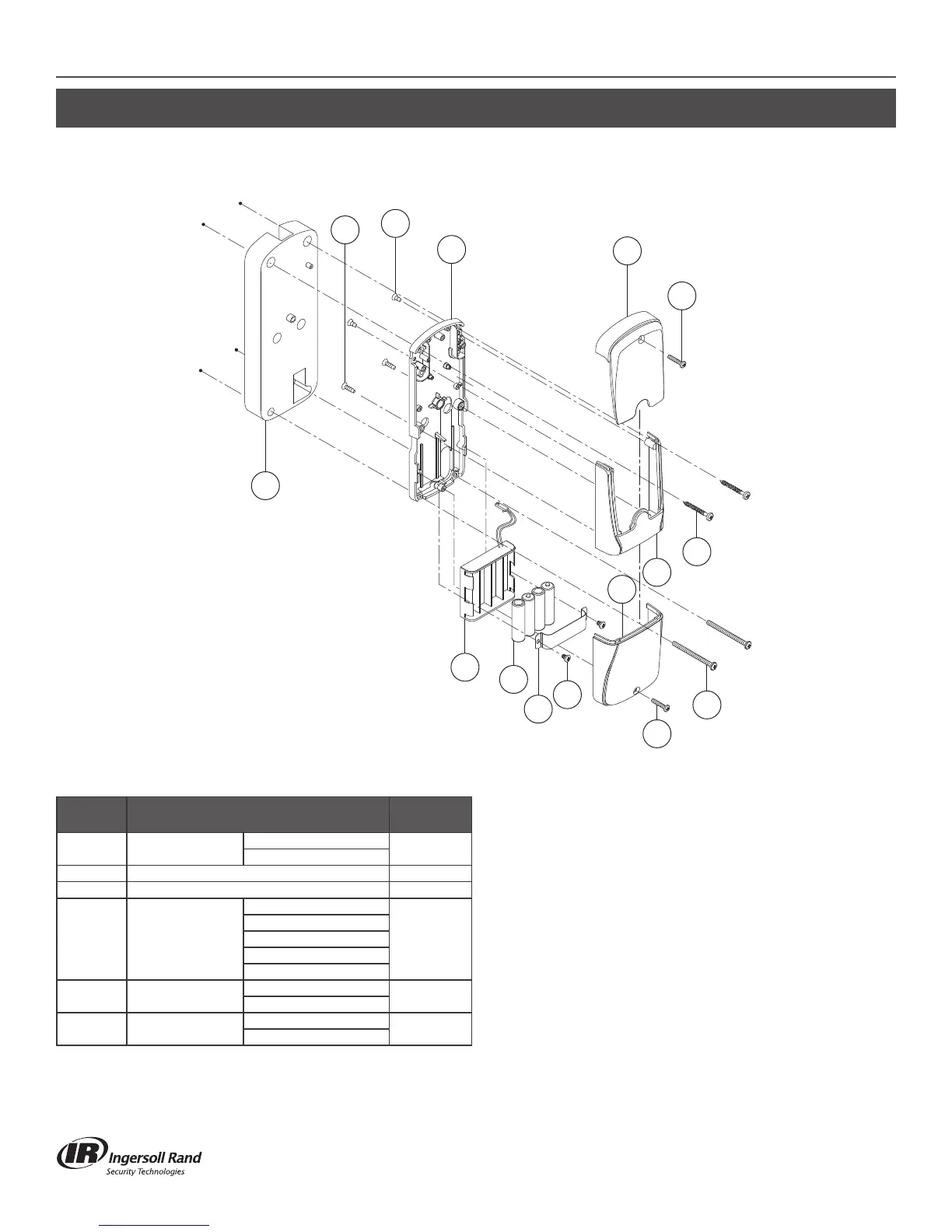

CO-100-993-S KEYPAD ONLY
Interior
12
14
14
14
14
14
32
28
28
6
2
2
28
32
32
Number Description
Part
Number
2* Cover
Cover
COM200C
Screw, Cover
6 Baseplate Assembly, 993 23599251
12 Batteries, AA F206-488
14*
4AA Battery Holder
& Cover Kit
4AA Battery Holder
4B-E
4AA Battery Strap
Screws, Battery Strap (2)
4AA Battery Cover
Screw, Battery Cover (1)
28* Escutcheon, 993
Escutcheon
46929279
Screws, Escutcheon
32
Baseplate Spacer,
993-S
Spacer
46929238
Screws, Spacer
* Must specify Finish
