Schlage CO-Series - CO-200-MD Keypad Only

CO-Series Service Manual
18

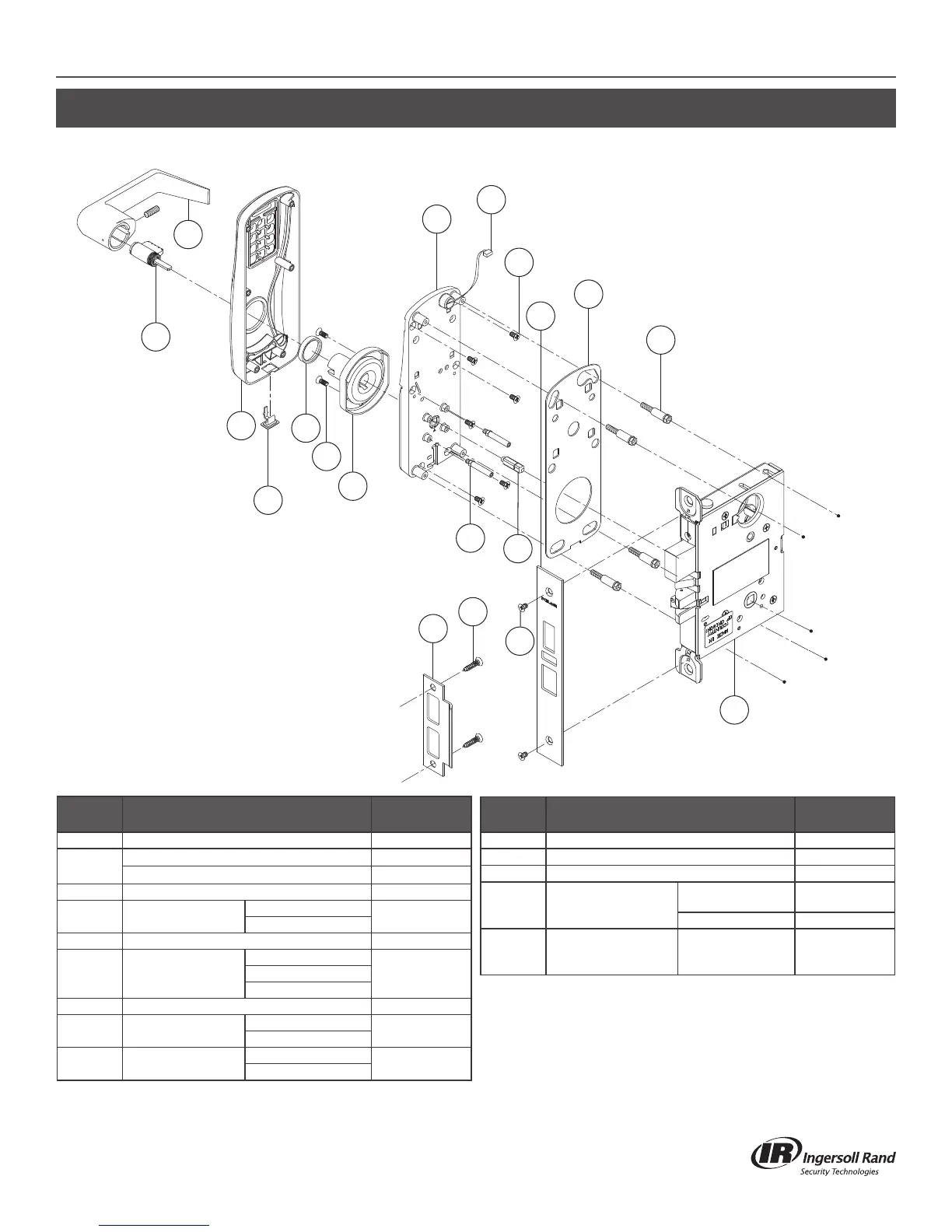

CO-200-MD KEYPAD ONLY
Exterior
44
44
5
16
37
21
36
35
21
21
23
27
27
10
26
26
18
15
39
Number Description Part Number
5

*** Baseplate Subassembly, MS See pg. 39
10
Lock Case, Narrow, 1
¹⁄₁₆" wide
46928834
Lock Case, 1
¹⁄₄" wide
46928842
15* Cylinder See pg. 48
16 Gasket Kit, Outside
Gasket, Baseplate
46929162
Gasket, Reader
18* Lever, Outside See pg. 45
21
Spring Cage,
Outside
Spring Cage
See pg. 46Screws, Spring Cage
Gasket, O-Ring
23** USB Cover (10 pcs.) 46928719
26* Strike
Strike
See pg. 44
Screws, Strike
27* Armor Front, MS/MD
Armor Front
See pg. 44
Screws, Armor Front
Number Description Part Number
35
a
Spindle See pg. 41
36
a
Stand-Offs, MS/MD See pg. 41
37
a
Baseplate Stand-Offs See pg. 41
39 Wiring Harness
Classroom/
Storeroom
23518392
Office/Privacy 23518384
44*†
Escutcheon, Keypad
Only, MS/MD
(Assembly & Screws)
CO-200 23599087
* Must specify Finish
** For CO-200 Only
*** This item only available as part of Exterior Escutcheon Assembly
a This item only available as part of Door Thickness Kit
† If using GD/BD Cylinder and Lever preparation, use part number
23599079
 Must specify Cylinder Type and Handing
