Schlage CO-Series Service Manual

CO-Series Service Manual
41

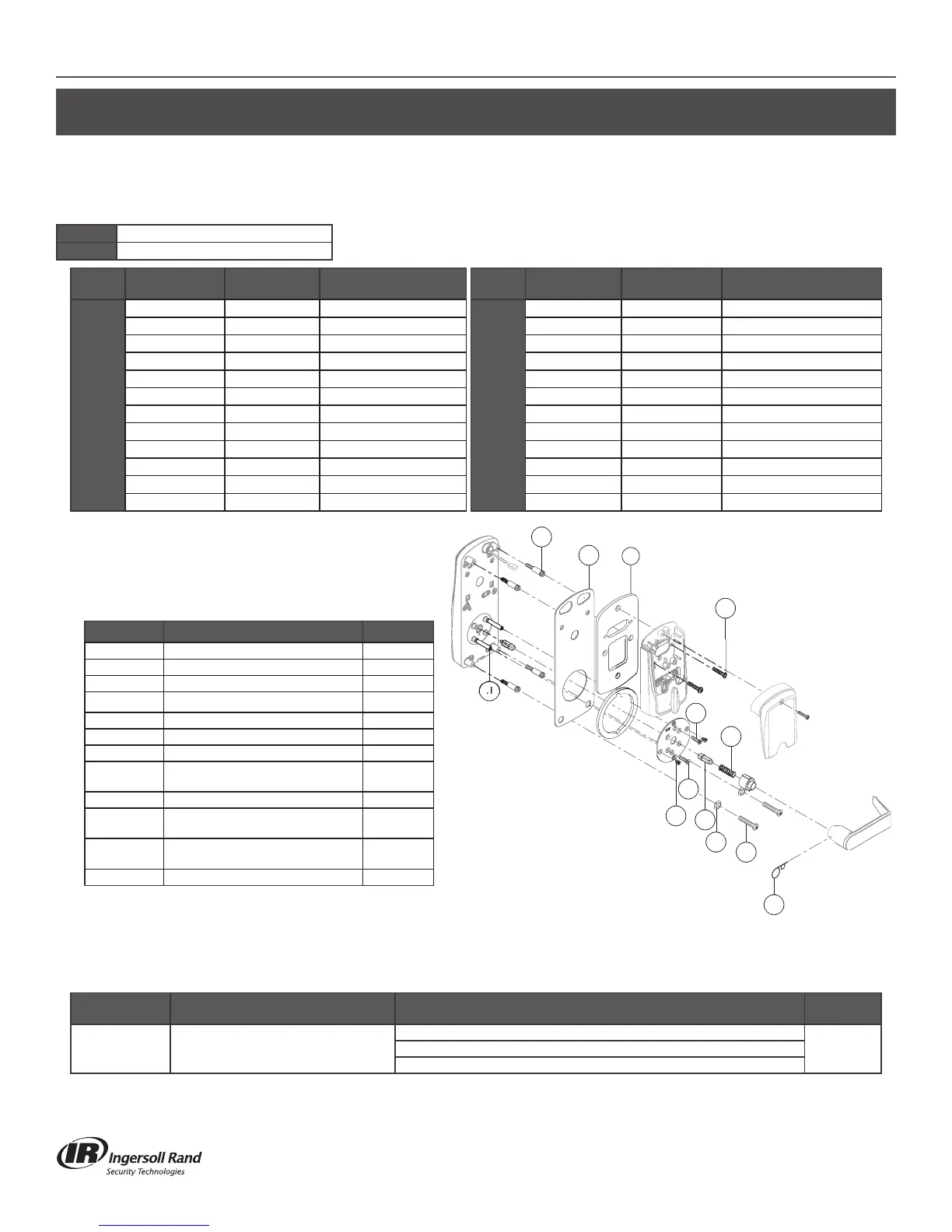

DOOR THICKNESS KIT
The Door Thickness Kit is used to install a lock on a door that is thicker or thinner than 1³⁄₄”. Use the chart below to deter-
mine what is needed. This kit can also be used as replacement parts. Locks cannot be installed on doors thicker than 2³⁄₄”
or thinner than 1³⁄₈”.
Compatibility:
Models
CO-100 / CO-200
Types
CY / MS / MD
Lock
Type
Door
Thickness
Kit Number
Contents
(Item Letters)
Lock
Type
Door
Thickness
Kit Number
Contents
(Item Letters)
CY
1³⁄₈"
23599376-138 A, B, C, D, E, F, G, H
MS/MD
1³⁄₈"
23599384-138 A, B, D, E, F, G, H, J, K, L, M
1
¹⁄₂"
23599376-112 A, B, C, D, E, F, G, H
1¹⁄₂"
23599384-112 A, B, D, E, F, G, H, J, K, L, M
1
⁵⁄₈"
23599376-158 A, B, C, D, E, F, G, H
1⁵⁄₈"
23599384-158 A, B, D, E, F, G, H, J, K, L, M
1
³⁄₄" (Standard)
23599376-134 A, B, C, D, E, F, H
1³⁄₄" (Standard)
23599384-134 A, B, D, E, F, G, H, J, K, L, M
1
⁷⁄₈"
23599376-178 A, B, C, D, E, F, H
1⁷⁄₈"
23599384-178 A, B, D, E, F, G, H, J, K, L, M
2" 23599376-200 A, B, C, D, E, F, H 2" 23599384-200 A, B, D, E, F, G, H, J, K, L, M
2
¹⁄₈"
23599376-218 A, B, C, D, E, F, H
2¹⁄₈"
23599384-218 A, B, D, E, F, G, H, J, K, L, M
2
¹⁄₄"
23599376-214 A, B, C, D, E, F, H
2¹⁄₄"
23599384-214 A, B, D, E, F, G, H, J, K, L, M
2
³⁄₈"
23599376-238 A, B, C, D, E, F, H
2³⁄₈"
23599384-238 A, B, D, E, F, G, H, J, K, L, M
2
¹⁄₂"
23599376-212 A, B, C, D, E, F, H
2¹⁄₂"
23599384-212 A, B, D, E, F, G, H, J, K, L, M
2
⁵⁄₈"
23599376-258 A, B, C, D, E, F, H
2⁵⁄₈"
23599384-258 A, B, D, E, F, G, H, J, K, L, M
2
³⁄₄"
23599376-234 A, B, C, D, E, F, H
2³⁄₄"
23599384-234 A, B, D, E, F, G, H, J, K, L, M
J
M
H
F
L
G
G
D
B
C
E
K
A
EXIT DEVICE DOOR THICKNESS KITS
This kit includes mounting hardware for the 993 series trims. When ordering this kit, door thickness and trim finish
specification is required.
Part Number Kit Description Contents
Specify
Finish
46929287* Mounting Hardware Kit, 993
(2) Upper Mounting Bolts
•(4) Lower Mounting Bolts
(2) Reader Mounting Bolts
Item Letter Description Quantity
A* Baseplate Top Screws 2
B* UL Door Plate Screws 2
C* UL Plate to Outside Baseplate, CY 2
D Pin Wrench for Lever 1
E Spring, Inside Spindle 1
F Spindle Assembly 2
G Shim Plates 3
H Standoffs
CY-2
MS/MD-4
J Mortise Standoffs 2
K
UL Plate to Outside Baseplate,
MS/MD
2
L
Bottom Oval Head Mounting
Screws
2
M Finishing Washer 2
* The length of these items varies by door thickness.
See charts on page 42 for more information.
