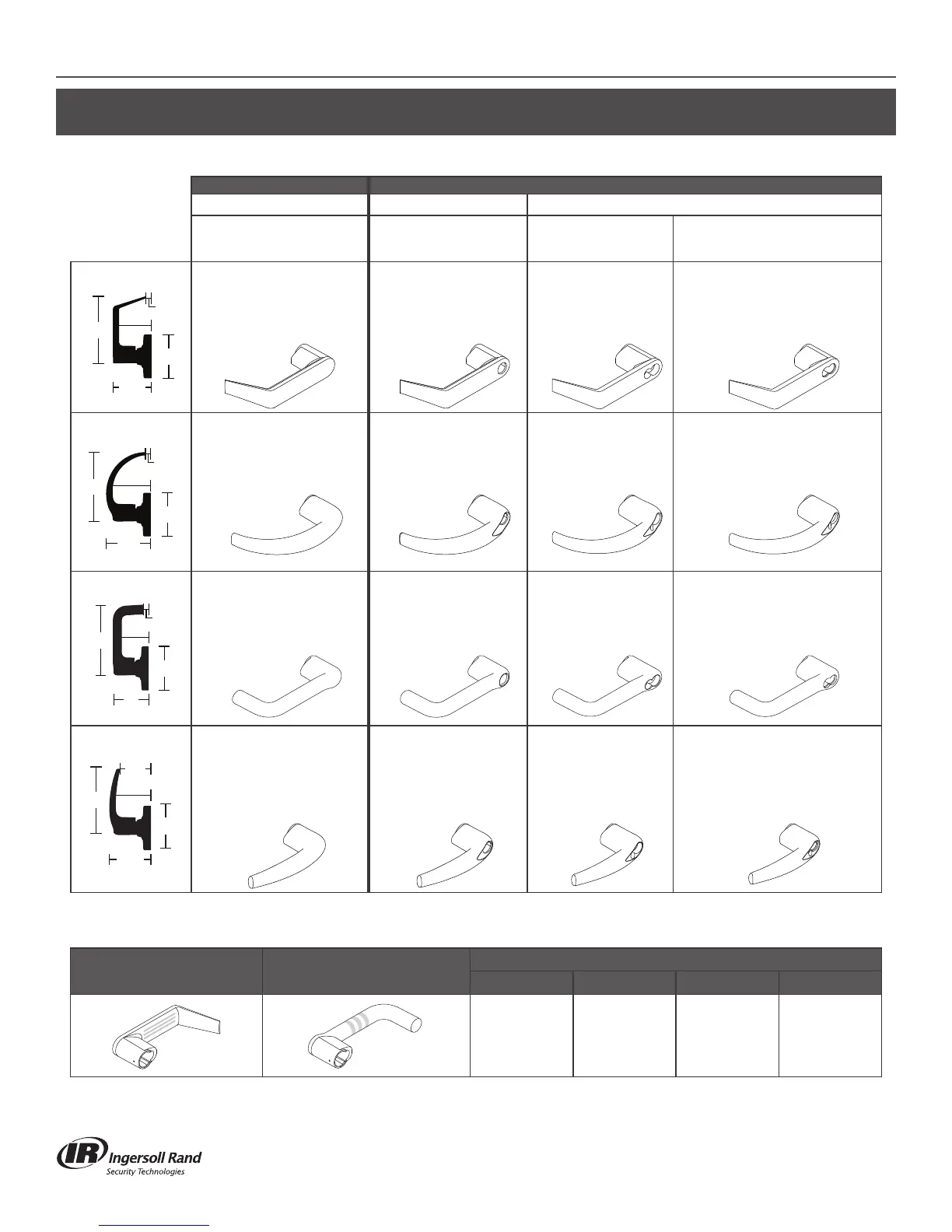

LEVERS
Levers shown below can accommodate Schlage and Falcon cylinders. Levers listed on page 46 will accommodate additional
competitor cylinders. All lever designs are available in finishes 605, 606, 612, 619, 625, 626, 643E and 626AM.
Interior Levers Exterior Levers
Closed Key In Lever Interchangeable Core
No Cylinder KIL 6 Pin
(Schlage & Falcon
Cylinders)
FSIC 6 Pin
(Schlage Cylinders)
SFIC 6 & 7 Pin
(Schlage, Falcon, BEST, Corbin
Russwin, Yale, Medeco Cylinders)
Rhodes (RHO)*
5¹⁄₈"
A
3⁷⁄₁₆"
B
03-030 RHO
A=2⁷⁄₁₆"
B=2¹⁵⁄₁₆"
CY: 03-031 RHO
MS/MD: 09-331 RHO
993: 03-331 RHO
A=2⁷⁄₁₆"
B=2¹⁵⁄₁₆"
CY: 03-032 RHO
MS/MD: 09-332 RHO
993: 03-332 RHO
A=2³⁄₄"
B=3¹⁄₄"
CY: 03-000 RHO
MS/MD: 03-000 RHO
993: 03-300 RHO
A=2¹⁄₂"
B=3"
Sparta (SPA)*
5¹⁄₂"
A
3⁷⁄₁₆"
B
03-030 SPA
A=3"
B=3¹⁄₂"
CY: 03-031 SPA
MS/MD: 09-331 SPA
993: 03-331 SPA
A=3"
B=3¹⁄₂"
CY: 03-032 SPA
MS/MD: 09-332 SPA
993: 03-332 SPA
A=3¹⁄₄"
B=3³⁄₄"
CY: 03-000 SPA
MS/MD: 03-000 SPA
993: 03-300 SPA
A=3"
B=3¹⁄₂"
Tubular (TLR)*
5¹⁄₂"
A
3⁷⁄₁₆"
B
03-030 TLR
A=2¹⁄₄"
B=3"
CY: 03-031 TLR
MS/MD: 09-331 TLR
993: 03-331 TLR
A=2¹⁄₄"
B=3"
CY: 03-032 TLR
MS/MD: 09-332 TLR
993: 03-332 TLR
A=2¹⁄₂"
B=3³⁄₁₆"
CY: 03-000 TLR
MS/MD: 03-000 TLR
993: 03-300 TLR
A=2¹⁄₄"
B=3"
Athens (ATH)
5¹⁄₈"
3⁷⁄₁₆"
B
C
A
03-030 ATH
A=2³⁄₄"
B=3⁵⁄₁₆"
C=2¹⁄₂"
CY: 03-031 ATH
MS/MD: 09-331 ATH
993: 03-331 ATH
A=2³⁄₄"
B=3⁵⁄₁₆"
C=2¹⁄₂"
CY: 03-032 ATH
MS/MD: 09-332 ATH
993: 03-332 ATH
A=3"
B=3¹⁄₂"
C=2¹¹⁄₁₆"
CY: 03-000 ATH
MS/MD: 03-000 ATH
993:03-300 ATH
A=2⁷⁄₈"
B=3³⁄₈"
C=2¹⁄₂"
* Meets California Fire Code for ¹⁄₂" or less return to the door
NOTE: Changing Lever Cylinder Compatibility on a device typically requires replacement of existing spring cage and tailpiece
TACTILE WARNING LEVER
Rhodes lever shown Tubular lever shown
Preface Design Code for Tactile Warning Levers
Athens Rhodes* Sparta* Tubular*
8AT 8RH 8SP 8TR
