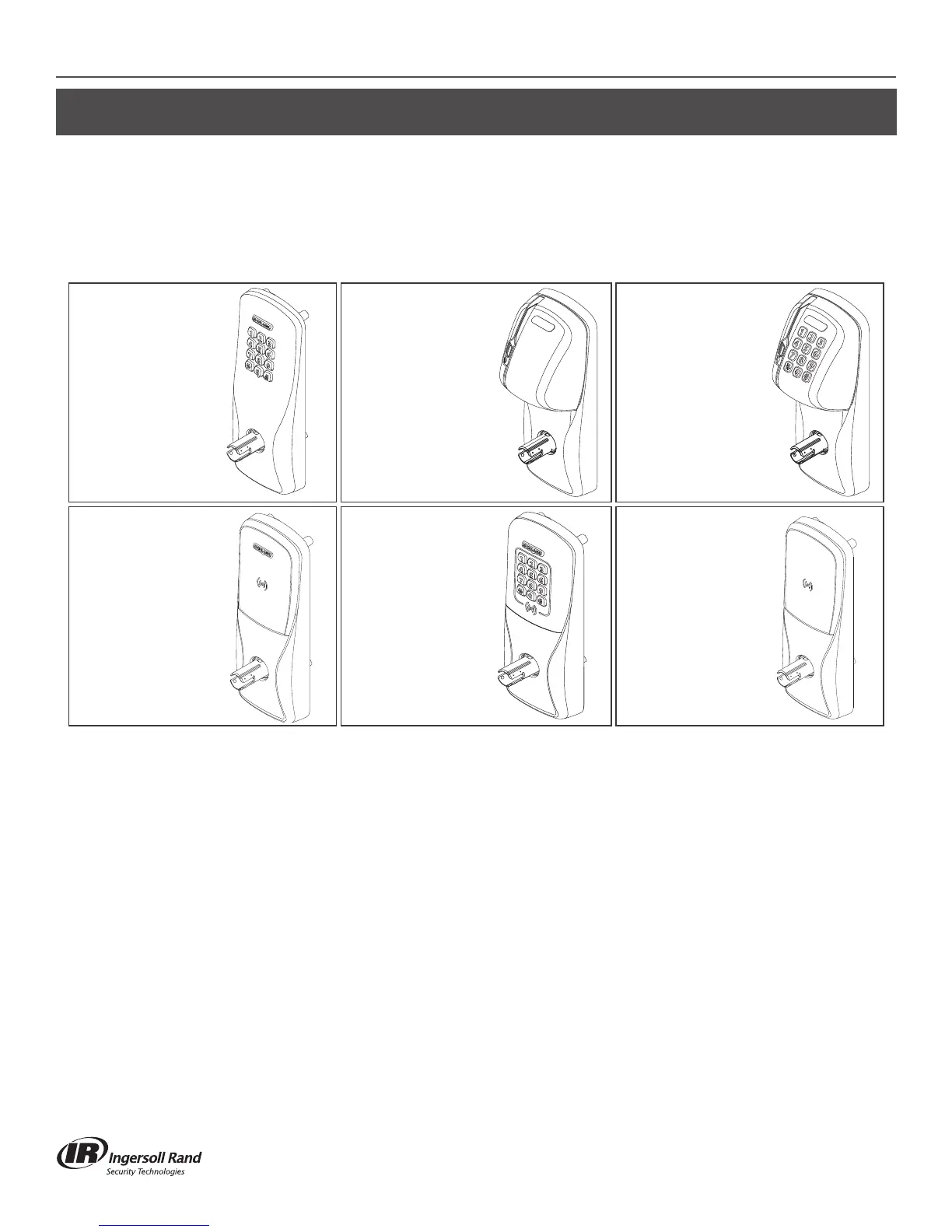

EXTERIOR ESCUTCHEON ASSEMBLIES WITH READER MODULES
Outside Escutcheon Assemblies are used to replace existing Baseplate Subassemblies and Reader Modules. Outside
Escutcheons will include outside escutcheon assembly, less lever and cylinder. If a lever or cylinder are required, these
must be ordered separately.
To order, specify EXT at the beginning of the ordering string procedure detailed on page 51. Please contact customer
service for more information.
Ordering example for a CO 200 MSK exterior escutcheon: EXT-CO-200-CY-70-MSK-LLL-626-PD-RH.
Keypad Only
Part Number: KP
Available In:
CO-100, CO-200
Available Finishes:
605, 606, 612, 619,
625, 626, 626AM,
643E
Magnetic Stripe
(Swipe)
(Track 1, 2 or 3)
Part Number: MS
Available In:
CO-200, CO-250
Available Finishes:
605, 606, 612, 619,
625, 626, 626AM,
643E
Magnetic Stripe
(Swipe) with Keypad
(Track 1, 2 or 3)
Part Number: MSK
Available In:
CO-200, CO-250
Available Finishes:
605, 606, 612, 619,
625, 626, 626AM,
643E
Proximity
Part Number: PR
Available In:
CO-200
Available Finishes:
605, 606, 612, 643E
(BRN Reader)
619, 625, 626, 626AM
(GRY Reader)
Proximity with Keypad
Part Number: PRK
Available In:
CO-200
Available Finishes:
605, 606, 612, 643E
(BRN Reader)
619, 625, 626, 626AM
(GRY Reader)
Non-Functioning
Dummy Trim Reader
Cover
Part Number: DT
Available In:
CO-993-DT
Available Finishes:
605, 606, 612, 643E
(BRN Reader)
619, 625, 626, 626AM
(GRY Reader)
