Schlage CO-Series Service Manual

CO-Series Service Manual
47
SPRING CAGES
Exterior
Order
Suffix
Cylinder Type
CO Chassis Type
CY MS/MD
993
(Except ATH &
8AT)
993
(Only ATH &
8AT)
PD/LD KIL 6 Pin (Schlage & Falcon Cylinders) 46928552 46928602 46928651
RD/JD FSIC 6 Pin (Schlage Cylinders) 46928552 46928610 46928651
GD/BD
SFIC 6 & 7 Pin (Schlage, Falcon, BEST, Corbin
Russwin, Yale, Medeco Cylinders)
46928560 46928669
LD SA6 KIL 6 Pin (Sargent Cylinders) 46928578 46928628 46928677
LD FA7 KIL 7 Pin (Falcon Cylinders) 23845969 23845977 23779838 N/A
LD CO6 KIL 6 Pin (Corbin Russwin Cylinders) 24281750 24281776 24289910 N/A
JD SA6 FSIC 6 Pin (Sargent Cylinders) 46928586 46928636 46928685
JD CO6 FSIC 6 Pin (Corbin Russwin Cylinders) 46928586 46928636 46928693
JD CO7 FSIC 7 Pin (Corbin Russwin Cylinders)
23990674 23988033 23988017 N/A
JD YA6* FSIC 6 Pin (Yale/Medeco Cylinders*) 46928594 46928644 46928701
JD YA7 FSIC 7 Pin (Yale Cylinders) 24281743 24281768 24289928 N/A
JD MED FSIC 6 Pin (Medeco Cylinders) 24281735 24289902 N/A
Interior
All N/A 23599210 N/A N/A
* Accepts Medeco retrofit cylinder for Yale, Medeco p/n 31-0100 FSIC type

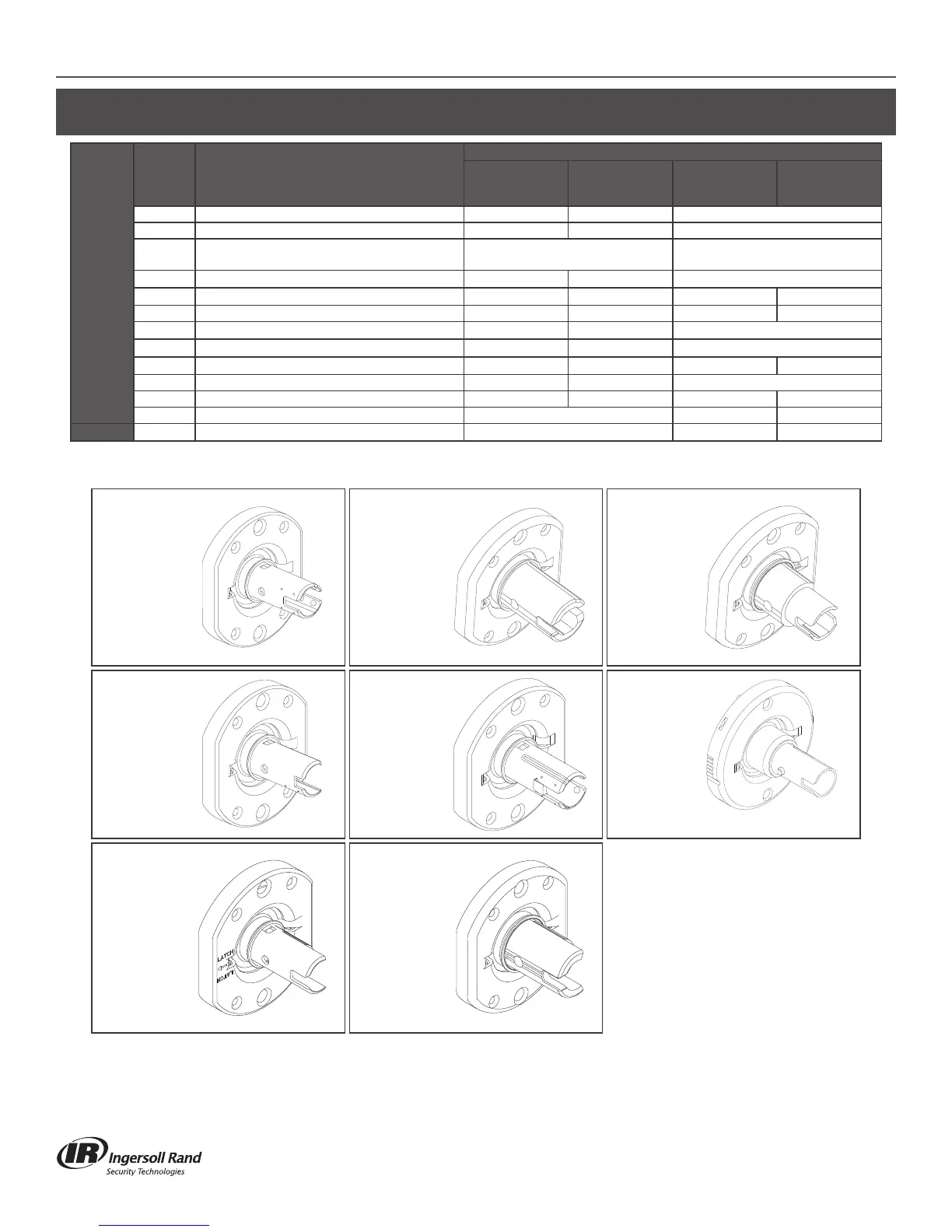

EXAMPLES OF SPRING CAGES
46928552
Cylindrical
46928602
Mortise
46928610
Mortise
46928560
Cylindrical &
Mortise
46928651
993 Exit Trim
23599210
(Inside)
23990674
Cylindrical
23988033
Mortise
