Schlage CO-Series - CO-200;250-993-M, All Models Except Keypad Only

CO-Series Service Manual
36
CO-200/250-993-M, ALL MODELS EXCEPT KEYPAD ONLY

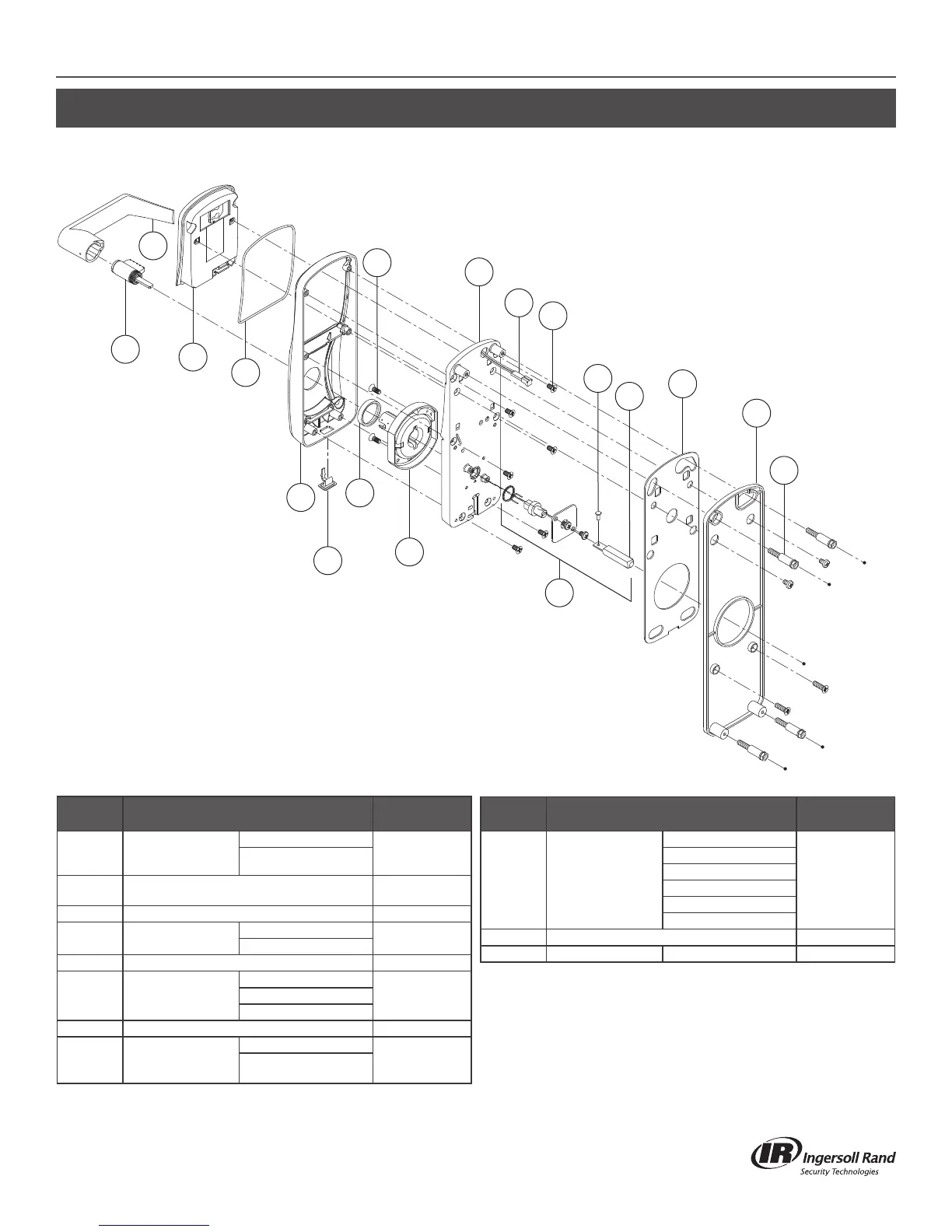

Exterior
18
15
16
3
23
21
21
21
41
41
3
8
8
39
16
31
37
33
Number Description Part Number
3*
†
Escutcheon, MS/
MD/993 (Assembly
& Screws)
Escutcheon
23599046
Screws, Escutcheon
8

***
Baseplate Subassembly & Reader Module,
993
See pg. 39
15* Cylinder See pg. 48
16 Gasket Kit, Outside
Gasket, Baseplate
46929162
Gasket, Reader
18* Lever, Outside See pg. 45
21
Spring Cage,
Outside
Spring Cage
See pg. 46Screws, Spring Cage
Gasket, O-Ring
23** USB Cover (10 pcs.) 46928719
31*
Mounting Plate,
993
Mounting Plate
46929220
Screws, Mounting
Plate (2)
Number Description Part Number
33
Spindle and Hub
Kit, 993
Tailpiece
46929295
Clip, Tailpiece
Cover, Spindle, 993
Screw, Spindle Cover
Hub
Spring, Tailpiece, 993
37
a
Baseplate Stand-Offs See pg. 41
39 Wiring Harness Classroom/Storeroom 23518392
* Must specify Finish
** For CO-200 Only
*** This item only available as part of Exterior Escutcheon Assembly
a This item only available as part of Door Thickness Kit
† If using GD/BD Cylinder and Lever preparation, use part number
23599038
 Must specify Cylinder Type and Handing
CO-200 Shown Here
