Schlage CO-Series - CO-100-MS Keypad Only

CO-Series Service Manual
7

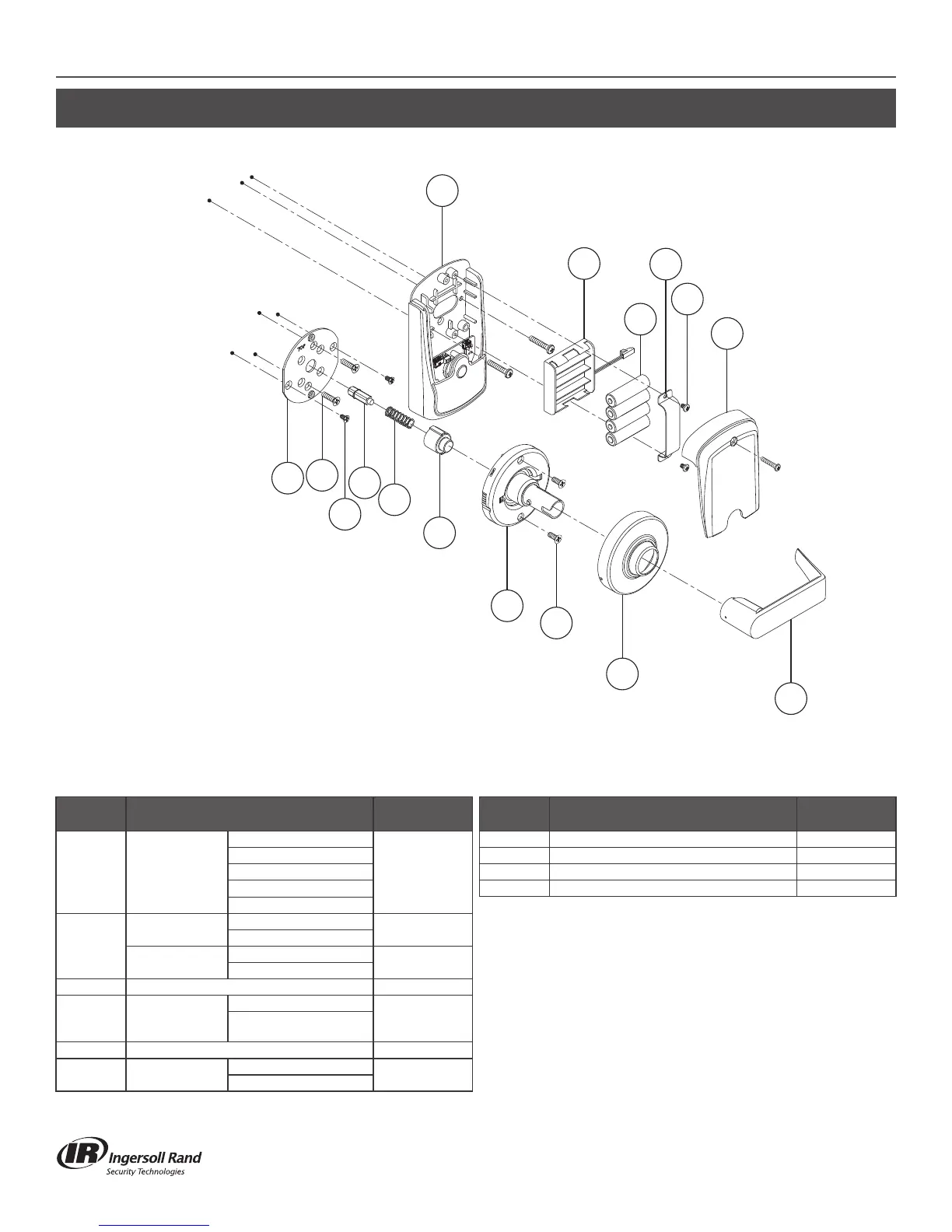

CO-100-MS KEYPAD ONLY
Interior
1
24
38
35
17
17
17
42
25
25
40
12
1
1
1
4
Number Description Part Number
1*
4AA Battery
Holder & Cover
Kit
4AA Battery Holder
4B-CM
4AA Battery Strap
Screws, Battery Strap (2)
4AA Battery Cover
Screw, Battery Cover (1)
4*
Escutcheon,
without IPB
Escutcheon, Inside
23599327
Screws, Escutcheon
Escutcheon, with
IPB
Escutcheon, Inside
23599335
Screws, Escutcheon
12 Batteries, AA F206-488
17
Inside Mounting
Plate Kit
Mounting Plate
23599244
Screws, Mounting Plate
(4)
24* Lever, Inside 03-030
25
Spring Cage,
Inside
Spring Cage
23599210
Screws, Spring Cage (2)
Number Description Part Number
35
a
Spindle See pg. 41
38
a
Spring See pg. 41
40* Rose, Inside 03-042-RHO
42 Hub 23599228
* Must specify Finish
