CO-Series Service Manual
49

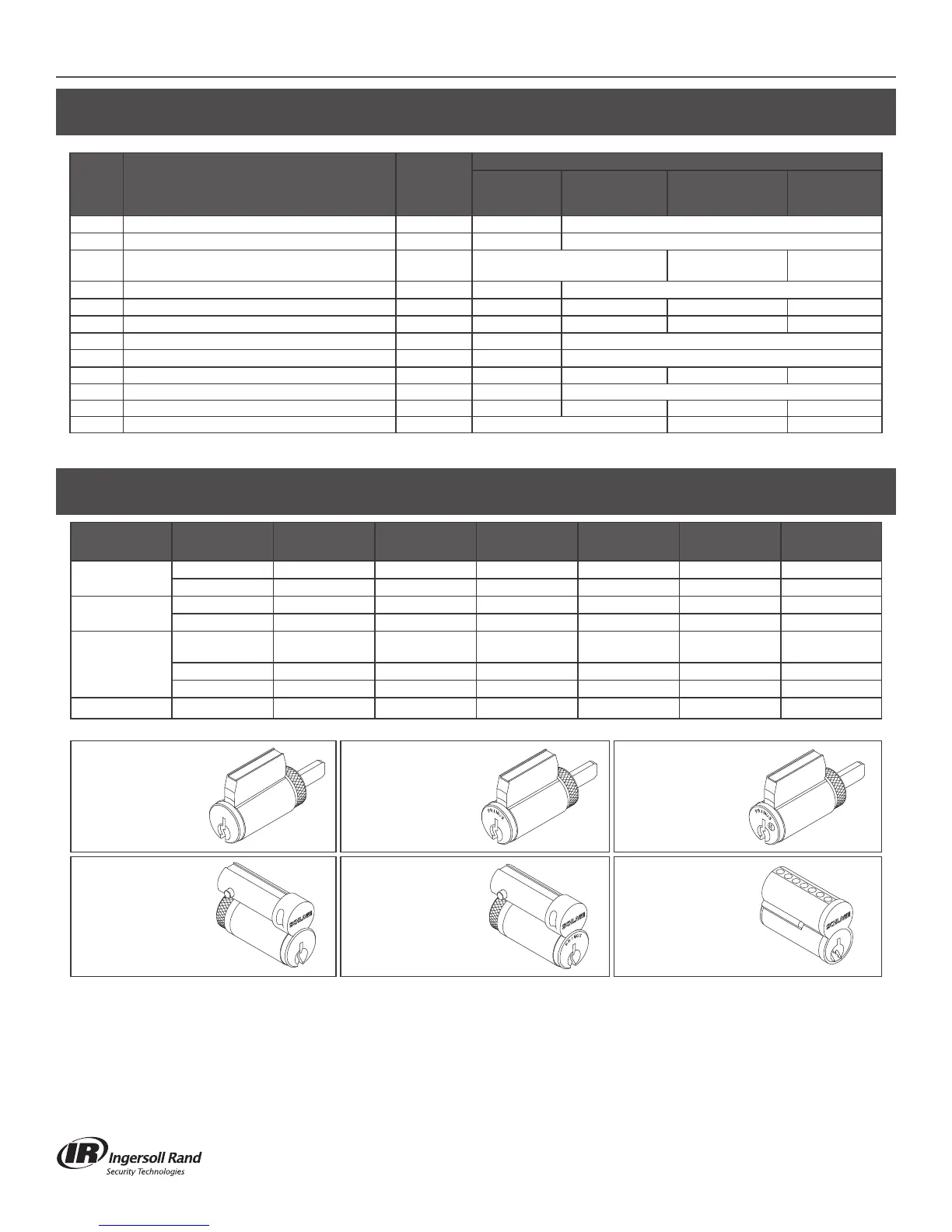

SPRING CAGE AND TAILPIECES KITS
Order
Suffix
Cylinder Type
Quantity
in
Package
CO Chassis Type
CY MS/MD
993
(Except ATH &
8AT)
993 (Only
ATH & 8AT)
PD/LD KIL 6 Pin (Schlage & Falcon Cylinders) 10 23593270 23593346
RD/JD FSIC 6 Pin (Schlage Cylinders) 10 23593288 23593353
GD/BD
SFIC 6 & 7 Pin (Schlage, Falcon, BEST, Corbin
Russwin, Yale, Medeco Cylinders)
10 23593304 23593437 23593510
LD SA6 KIL 6 Pin (Sargent Cylinders) 1 23593312 23593379
LD FA7 KIL 7 Pin (Falcon Cylinders) 1 23845985 23845993 23810872 N/A
LD CO6 KIL 6 Pin (Corbin Russwin Cylinders) 1 24281818 24281834 24289951 N/A
JD SA6 FSIC 6 Pin (Sargent Cylinders) 1 23593320 23593387
JD CO6 FSIC 6 Pin (Corbin Russwin Cylinders) 1 23593320 23593387
JD CO7 FSIC 7 Pin (Corbin Russwin Cylinders) 1 23990666 23988041 23988025 N/A
*JD YA6 FSIC 6 Pin (Yale/*Medeco Cylinders) 1 23593338 23593395
JD YA7 FSIC 7 Pin (Yale Cylinders) 1 24281800 24281826 24289944 N/A
JD MED FSIC 6 Pin (Medeco Cylinders) 1 24281792 24289936 N/A
* Accepts Medeco retrofit cylinder for Yale, Medeco p/n 31-0100 FSIC type
CYLINDERS
Chassis
Cylinder
Suffix* Classic Everest Primus Primus XP
Primus UL
437
Primus UL
437 XP
Cylindrical
PD 23-013 23-013-EV 20-750 20-750-XP 20-550 20-550-XP
RD 23-030 23-030-EV 20-740 20-740-XP
Mortise
PD 23-118 23-118-EV 20-854 20-854-XP 20-554 20-554-XP
RD 23-030 23-030-EV 20-740 20-740-XP
Exit
PD (All Except
ATH, 8AT)
23-118 23-118-EV 20-854 20-854-XP 20-554 20-554-XP
PD (ATH, 8AT) 23-013 23-013-EV 20-750 20-750-XP 20-550 20-550-XP
RD 23-030 23-030-EV 20-740 20-740-XP
All
GD 80-037
* Definitions available on page 47
Classic, Everest
PD
23-013
23-013-EV
23-118
23-118-EV
Primus, Primus XP
PD
20-750
20-750-XP
20-854
20-854-XP
Primus UL 437,
Primus UL, 437 XP
PD
20-550
20-550-XP
20-554
20-554-XP
Classic, Everest
RD
23-030
23-030-EV
Primus, Primus XP
RD
20-740
20-740-XP
Everest
GD
80-037
