Sega Let’s Go ISLAND! User Manual

104

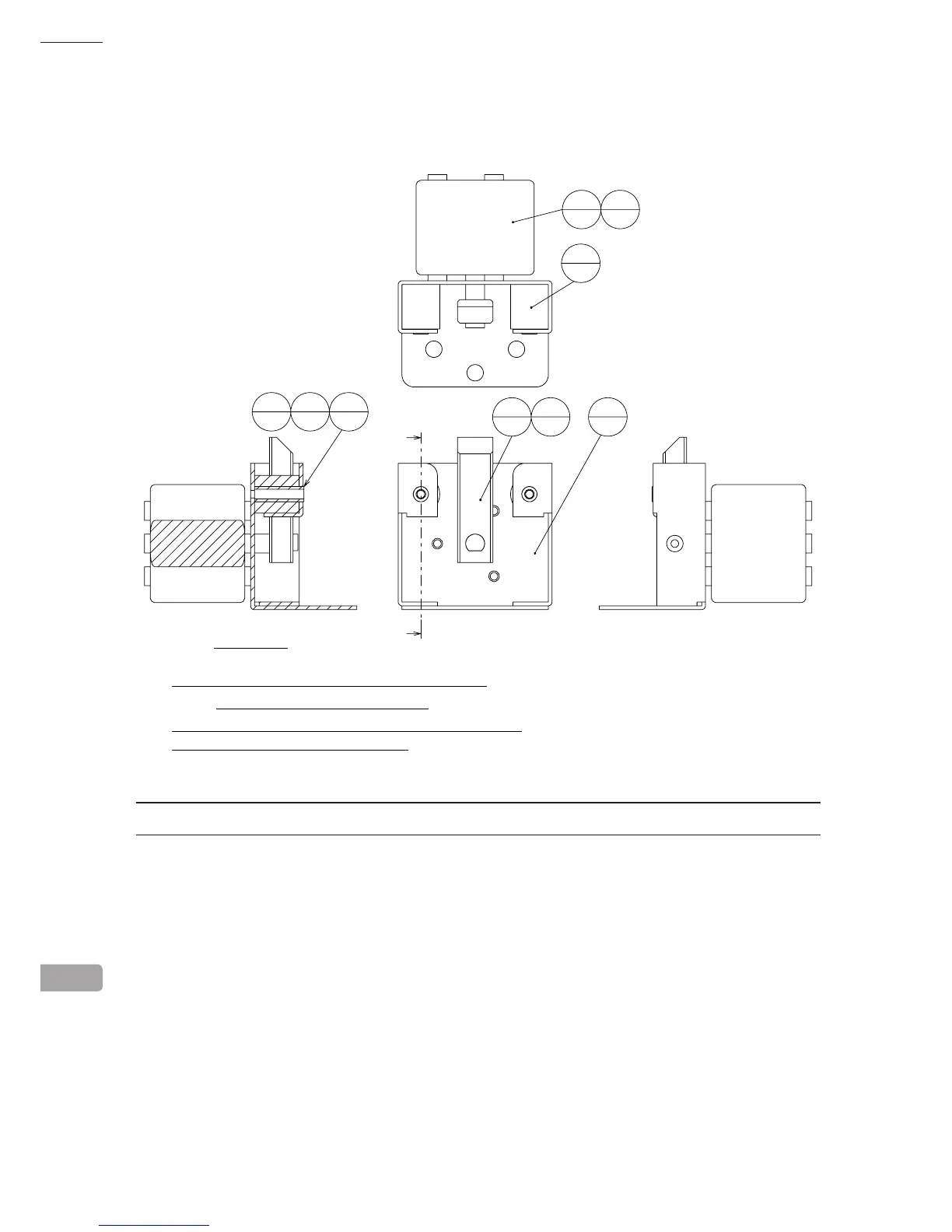

PARTS LIST
LGI-2070
VIB UNIT
ITEM NO. PART NO. DESCRIPTION NOTE
1 LGI-2071 VIB BRKT
2 LGI-2072 VIB SHAFT
3 LGI-2073 VIB STOPPER
4 LGI-2074 VIB SPACER
101 124-5109 RTRY SOL RSR20/20-CAB0-SG
102 280-5207 HARNESS LUG CC-1005
201 028-C00410-P SET SCR CH CUP P M4x10
202 000-P00430-W M SCR PH W/FS M4x30
203 050-H00400 HEX NUT M4
204 000-P00408-W M SCR PH W/FS M4x8
1. The tightening torque for the screws is as follows:
2. Screw components must be coated with thread sealant.
[Other than screws used to fasten (4).]
(201)(M4)：2.9N･m (29.5kgf･cm)
A
A
1
1
2
1
201
2
101
1
204
3
3
2
SECTION A-A
4
2
202
2
203
2
21
