COIN SELECTOR
14-5 CREDIT SETTINGS and ADJUSTMENTS
This product comes equipped with a Money Controls SR3 Coin Acceptor. To adjust the price of play ALL
credit setting are adjusted via the EXCEL CREDIT BOARD.
IMPORTANT!
The CREDIT SETTINGS within the SYSTEM TEST MODE must be set to 1 coin 1 credit to allow the
CREDIT BOARD to function correctly.
The Coin Tower has a built in Credit Board. This is controlled by 2 DIL Switches. These allow the
operator to select the price of play, type of coin acceptor and region.
DIL SW3 (Regional Settings)
Adjust these switches to specify the type of Coin Acceptor used and currency.
Default = SW1&SW2 ON - SR3 in parallel mode, Sterling.
TEST BUTTON
Provides access to the TEST MENU when pressed.
SERVICE BUTTON Provides a SERVICE CREDIT when pressed
Status LED Flashes when functioning.

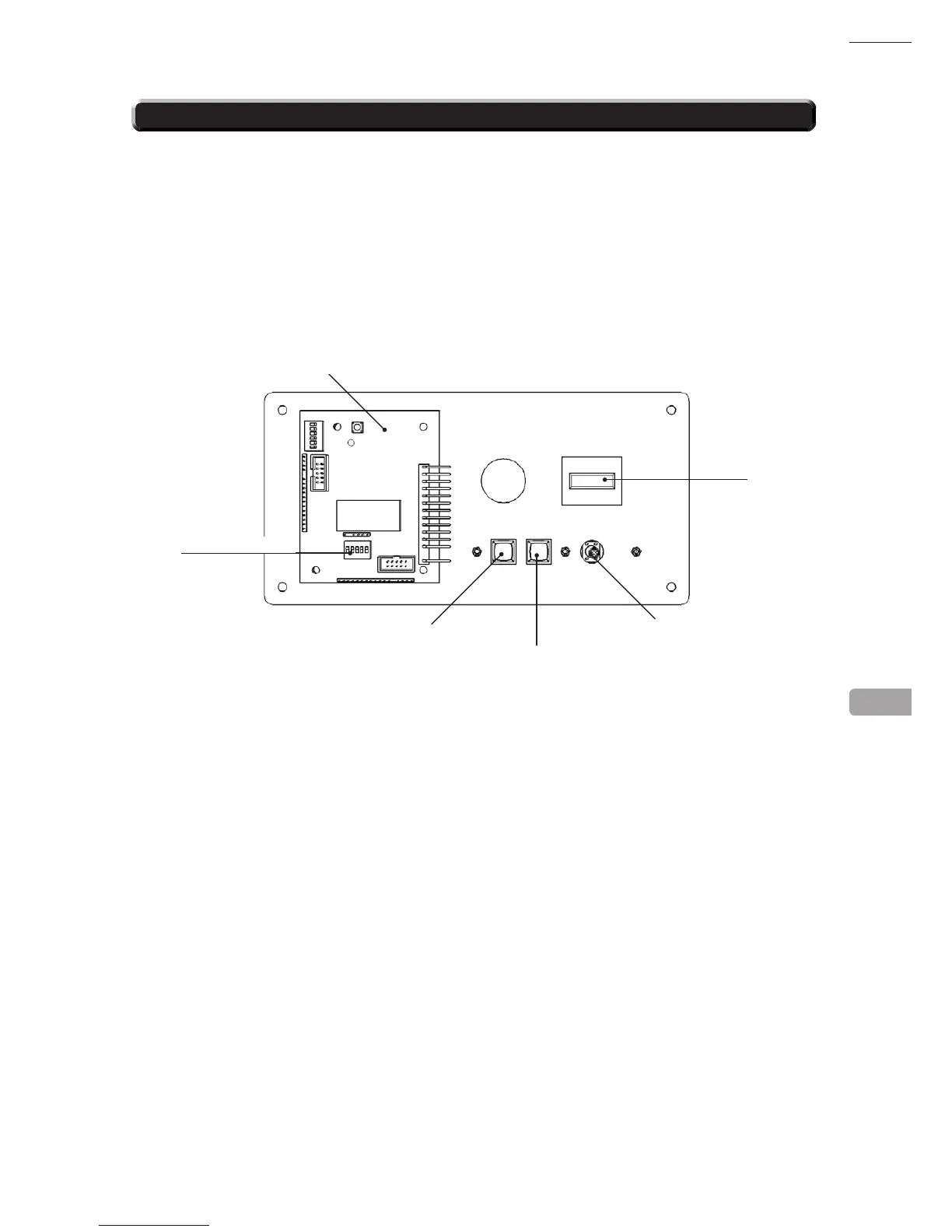

CHANNEL 1 To Coin Acceptor (SR3 TYPE.)
DIL SW1 (credit settings) Adjust to required price of pay.
COUNTER Coin Count Device
VOL CONTROL MAIN VOLUME ADJUSTMENT (FRONT SPEAKERS)
14
COUNTER
VOLUME CONTROL
SERVICE BUTTON
TEST BUTTON
DIL SW 1
EXCEL CREDIT PCB
To Next Page
