107

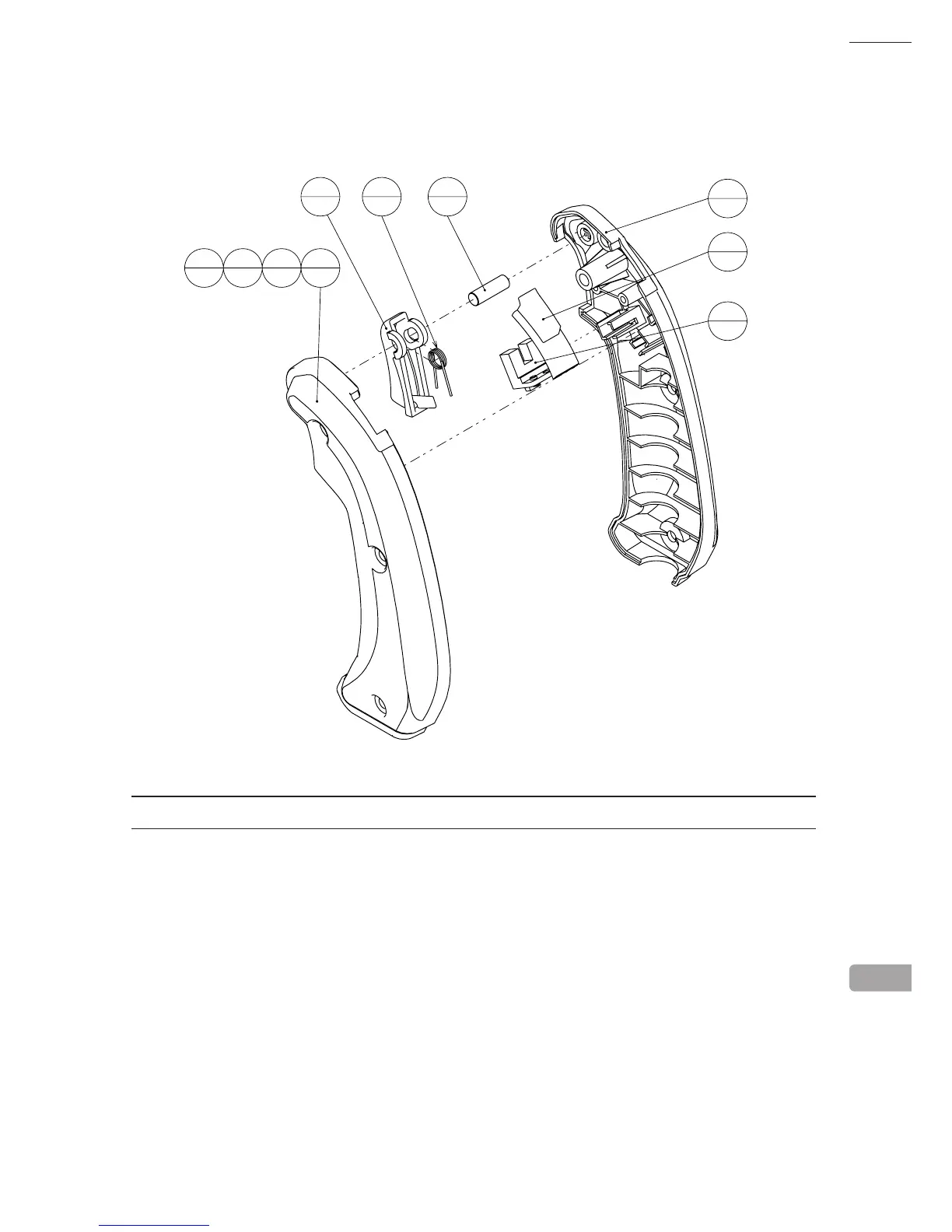

PARTS LIST
610-0842
GRIP UNIT
ITEM NO. PART NO. DESCRIPTION NOTE
1 253-5661 GRIP COVER L
2 253-5662 GRIP COVER R
3 253-5663 TRIGGER
4 253-5664 THUMB COVER
5 123-5134 GRIP SHAFT
6 125-5249 GRIP SPRING
101 370-5299 PHOTO INTERRUPTER KI1233-AALF
201 FAS-290096 HEX SKT ELH CAP SCR STN M4x8
202 060-S00400-0C SPR WSHR CRM M4
203 FAS-600015 FLT WSHR CRM M4
301 600-8091 WH GRIP
1
1
201
1
2
1
3
1
4
1
5
2
6
1
101
1
202
1
203
1
21
