Sega Let’s Go ISLAND! User Manual

106

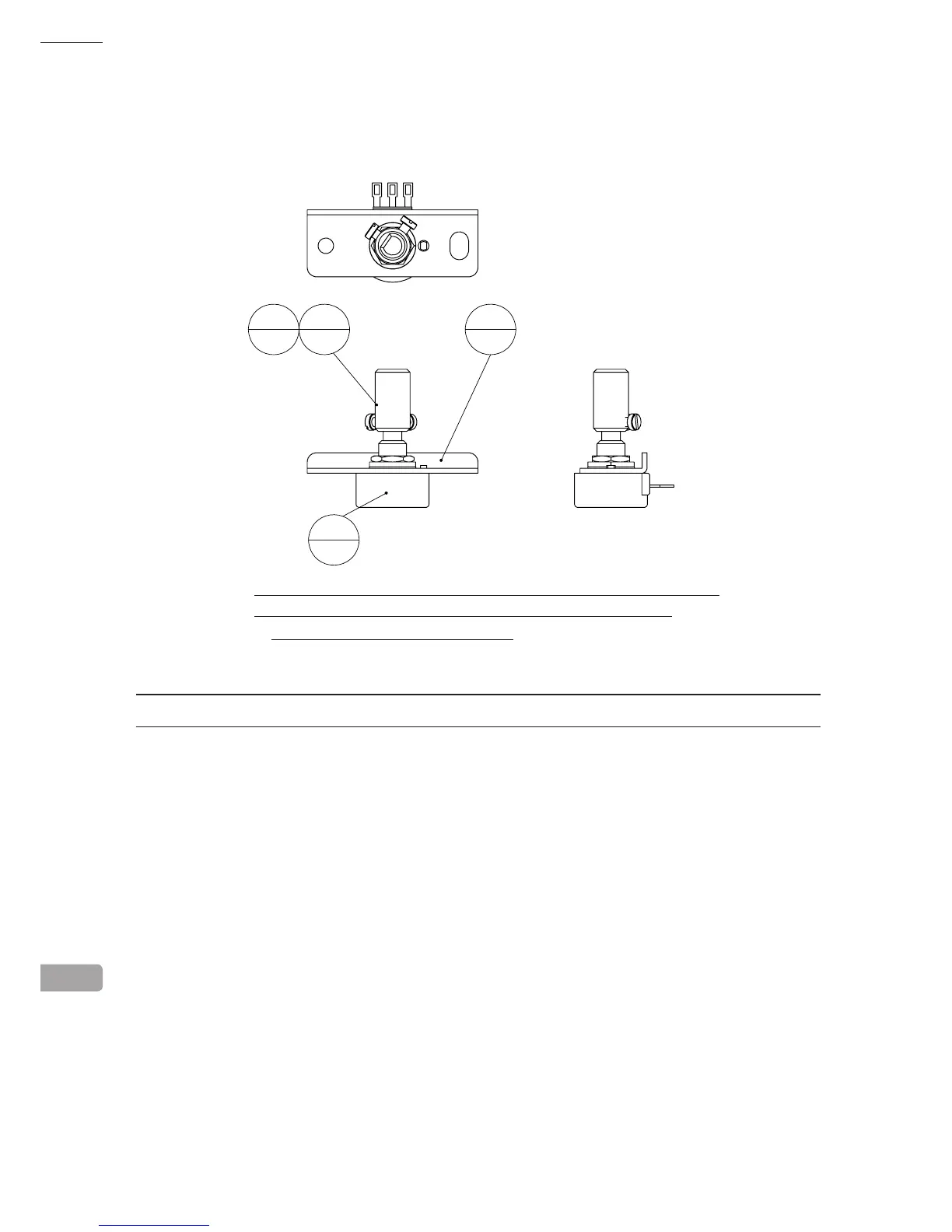

PARTS LIST
LGI-2090
ASSY CONT SIDE VOLUME
ITEM NO. PART NO. DESCRIPTION NOTE
1 LGI-2091 CONT SIDE VOLUME BRKT
2 601-7944 GEAR 15
101 220-5832 VOL B-5K RVQ24YN04 25F B502
102 310-5029-F20 SUMITUBE F F 20MM
201 028-C00308-P SET SCR CH CUP P M3x8
301 LGI-60031 WH CONT VOL SIDE
1
1
2
1
201
2
101
1
1. Screw components must be coated with thread sealant.
2. The tightening torque for the screws is as follows:
(201): 1.25N･m (12.75kgf･cm)
21

Sega Let’s Go ISLAND! Specifications

General

Brand	Sega
Model	Let’s Go ISLAND!
Category	Arcade Game Machines
Language	English
