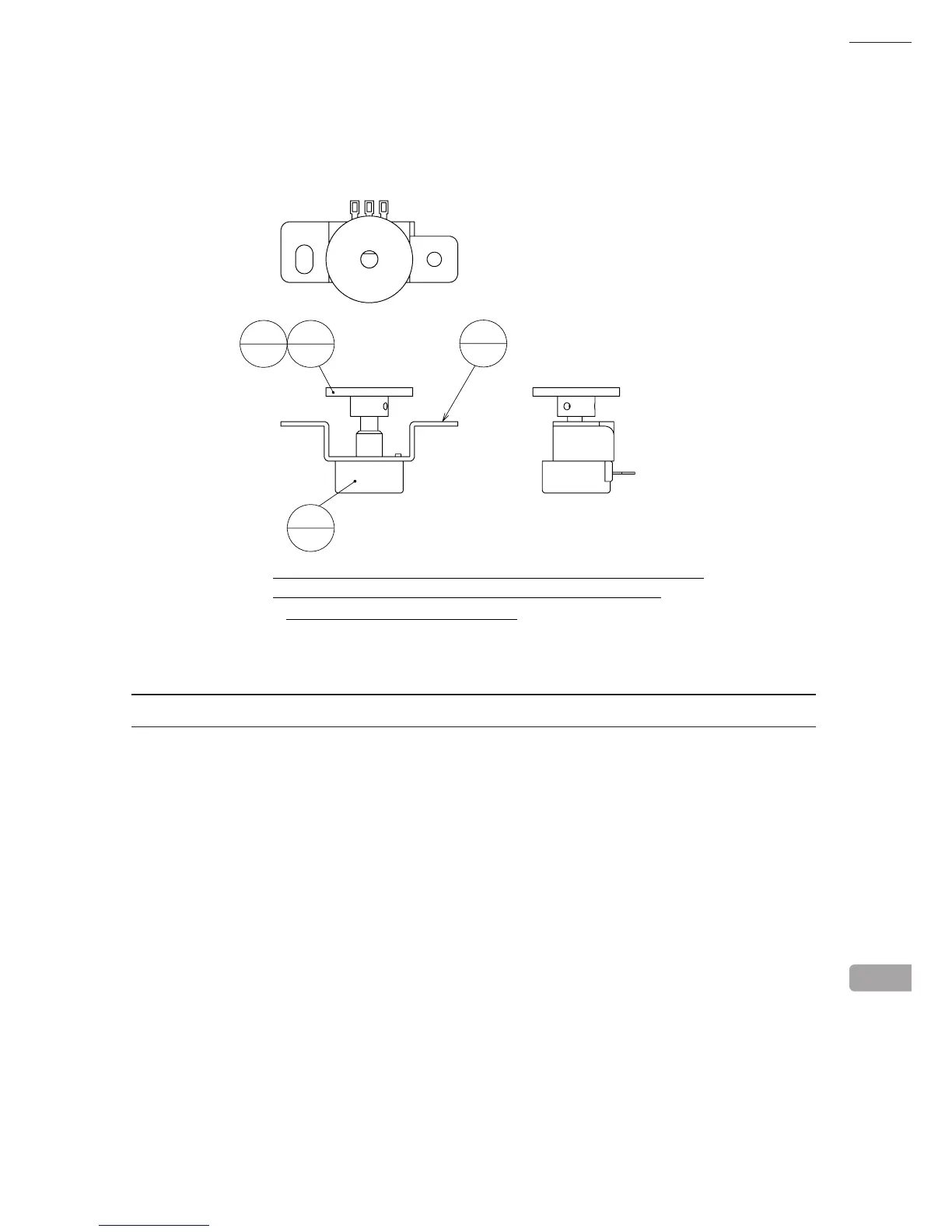

PARTS LIST
LGI-2080
ASSY CONT TOP VOLUME
ITEM NO. PART NO. DESCRIPTION NOTE
1 LGI-2081 CONT TOP VOLUME BRKT
2 601-9978 GEAR 40
101 220-5832 VOL B-5K RVQ24YN04 25F B502
102 310-5029-F20 SUMITUBE F F 20MM
201 028-C00308-P SET SCR CH CUP P M3x8
301 LGI-60032 WH CONT VOL TOP
1
1
2
1
201
2
101
1
1. Screw components must be coated with thread sealant.
2. The tightening torque for the screws is as follows:
(201): 1.25N･m (12.75kgf･cm)
